REG [REGULATOR]
[PATTERN No.JK1472-5]
A B C
A
5
4
3
2
1
5
4
3
2
1
B C
Symbol
No.
Parts
Location
Symbol
No.
Parts
Location
Symbol
No.
Parts
Location
Symbol
No.
Parts
Location
5 - 24 5 - 23 IF, REG

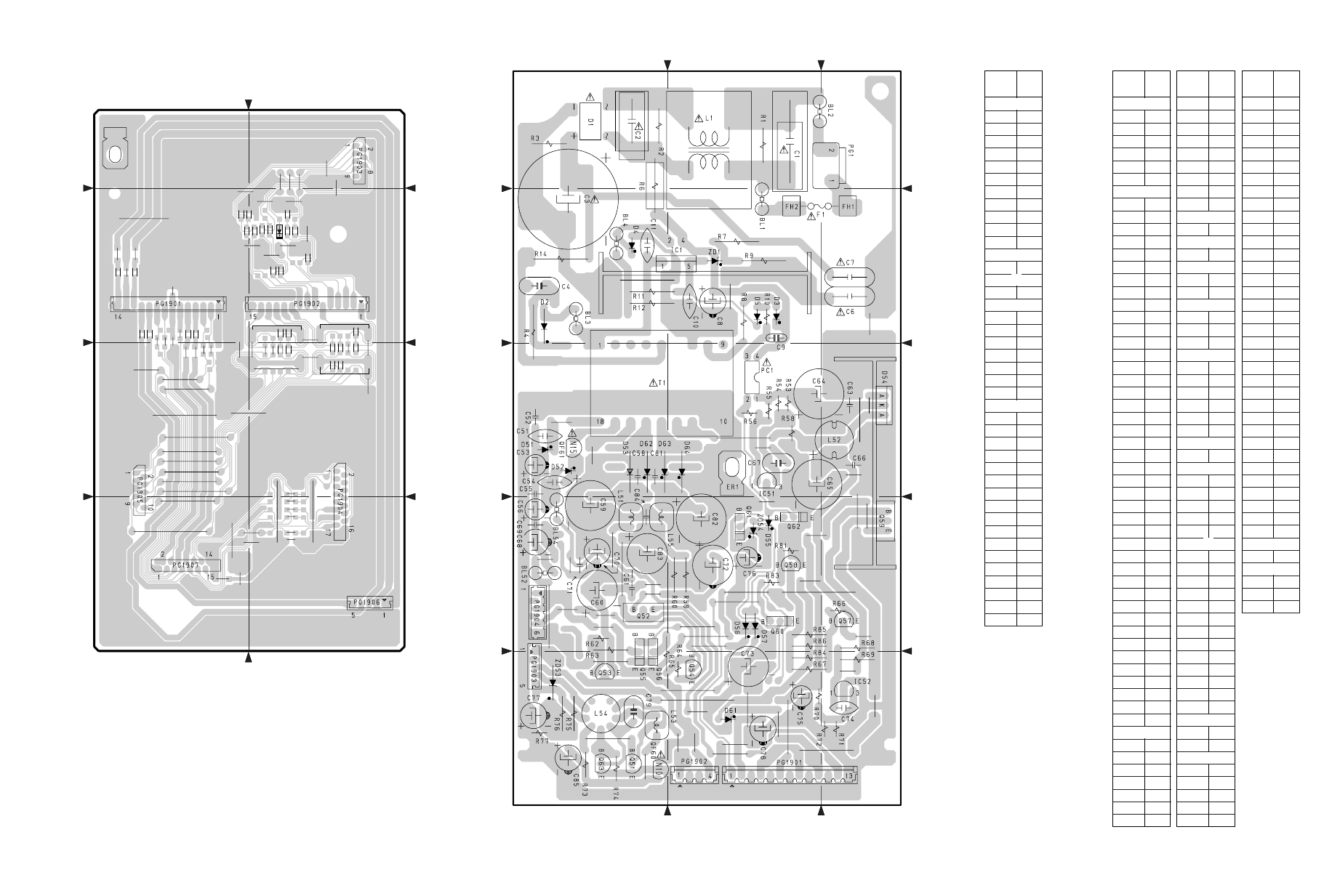

IF, REG CIRCUIT BOARDS IDENTIFICATION OF PARTS LOCATION
IF REG
BL
BL0001 4B
BL0002 5B
BL0003 4A
BL0004 4A
BL0052 2A
BL0054 2A
C
C0001 5B
C0002 5A
C0003 4A
C0004 4A
C0006 4C
C0007 4C
C0008 4B
C0009 4B
C0010 4B
C0011 4A
C0051 3A
C0052 3A
C0053 3A
C0054 3A
C0055 3A
C0056 2A
C0058 3A
C0059 2A
C0060 2A
C0061 2A
C0063 3C
C0064 3B
C0065 3B
C0066 3C
C0067 3B
C0068 2A
C0069 2A
C0070 2A
C0071 2A
C0072 2B
C0073 1B
C0074 1C
C0075 1B
C0076 2B
C0077 1A
C0078 1B
C0079 1A
C0081 3A
C0082 2B
C0083 2A
C0084 2A
C0085 1A
D
D0001 5A
D0002 4A
D0003 4B
D0004 4A
D0005 4B
D0051 3A
D0052 3A
D0053 3A
D0054 3C
D0055 2B
D0056 2B
D0057 2B
D0061 1B
D0062 3A
D0063 3A
D0064 3B
ER
ER0001 3B
F
F0001 4B
FH
FH0001 4C
FH0002 4B
IC
IC0001 4B
IC0051 3B
IC0052 1C
L
L0001 5B
L0051 2A
L0052 3C
L0053 1A
L0054 1A
L0055 2A
PC
PC0001 3B
PG
PG0001 5C
PG1901 1B
PG1902 1B
PG1903 1A
PG1904 2A
Q
Q0051 1A
Q0052 2A
Q0053 1A
Q0054 1B
Q0055 1A
Q0056 1A
Q0057 2C
Q0058 2B
Q0059 2C
Q0060 2B
Q0061 2B
Q0062 2B
Q0063 1A
QF
QF0060 1A
QF0061 3A
R
R0001 5B
R0002 5A
R0003 5A
R0004 4A
R0006 5A
R0007 4B
R0008 4B
R0009 4B
R0010 4B
R0011 4A
R0012 4A
R0014 4A
R0053 3B
R0054 3B
R0055 3B
R0056 3B
R0058 3B
R0059 2B
R0060 2B
R0062 2A
R0063 2A
R0064 1B
R0065 1A
R0066 2C
R0067 1B
R0068 2C
R0069 1C
R0070 1B
R0071 1C
R0072 1C
R0073 1A
R0074 1A
R0075 1A
R0076 1A
R0077 1A
R0081 2B
R0083 2B
R0084 1B
R0085 2B
R0086 2B
T
T0001 3A
ZD
ZD0001 4B
ZD0053 1A
ZD0054 2B
REG
C
C1903 3B
C1904 3B
C1909 3B
C1911 3B
C1914 3B
C1915 3B
C1920 2B
C1921 2B
C1922 3B
C1923 3A
C1928 3B
CN
CN1901 4A
D
D1901 3B
PG
PG1901 3A
PG1902 3B
PG1903 4B
PG1904 1B
PG1905 2A
PG1906 1B
PG1907 1A
R
R1901 3A
R1903 3A
R1904 3A
R1905 3A
R1911 3A
R1913 3A
R1917 2B
R1918 2B
R1919 2B
R1920 2B
R1921 3B
R1922 3B
R1924 3B
R1926 3B
R1927 3B
R1928 2B
R1940 3A
R1917 R1918
C1903 C1904
C1920 C1921
R1919 R1920 R1928
C1915
R1904
R1901 R1903
R1905 R191
1
R1913
R1940 R1921 R1922 R1924 R1926
C1928
R1927
C1909 C191
1
C1914
C1923 C1922
CN1901
D1901
IF [INTERFACE]
[PATTERN No.JA1756-7]
1
2
3
4
1
2
3
4
B A
B A
