2 - 2
(1)
REMOVE THE
SCREW
(5)
REMOVE
SEVEN
SCREWS
(3)
REMOVE
THE
SCREW
TOP COVER SIDE COVER (L)
SIDE COVER (R)
(5)
(5)
(5)
(4)
(2)
(5)

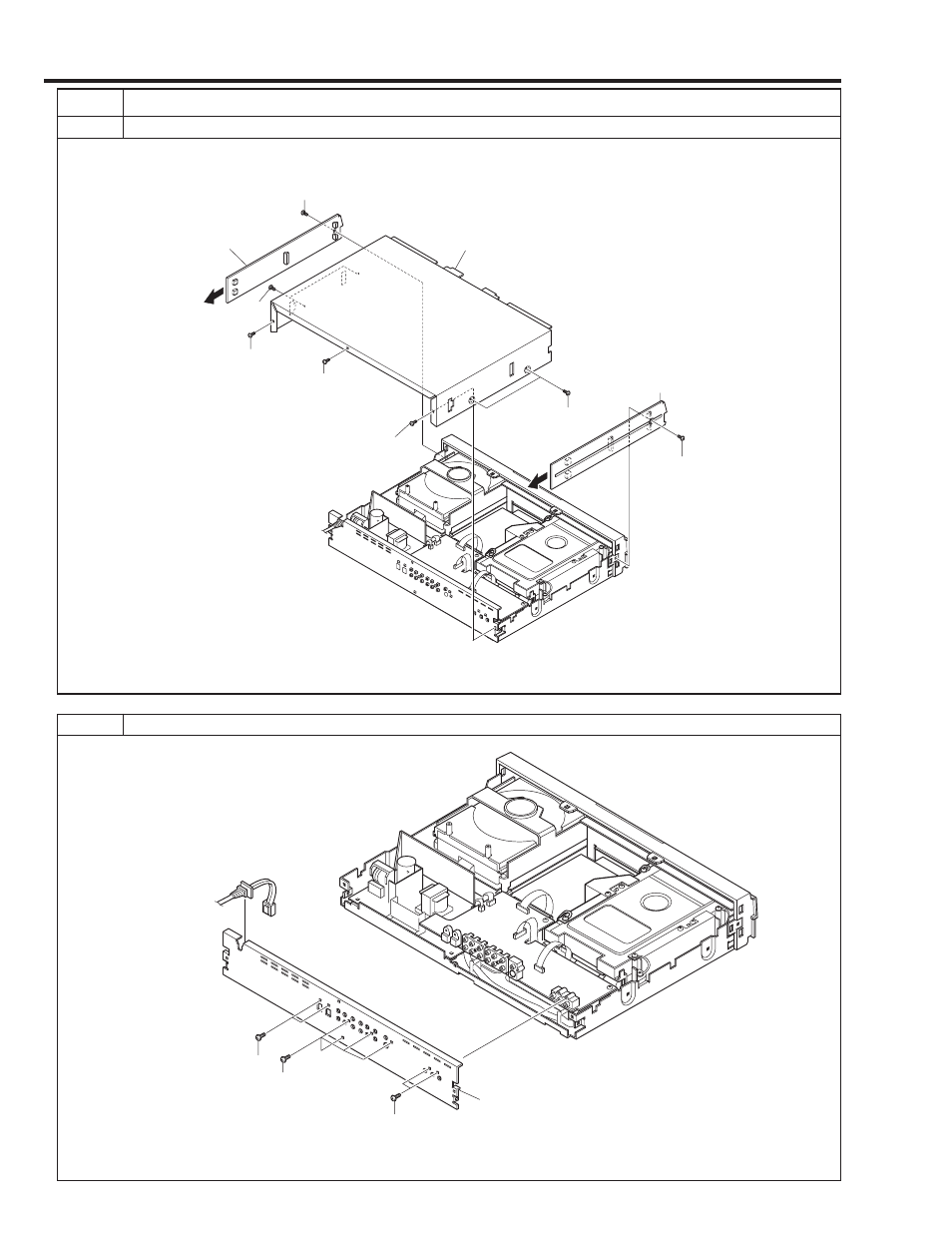

Fig. 2-1
Disassembly Procedure Diagrams
Item Parts to remove
2-1 Side cover (L), (R) and Top cover
2-2 Rear panel
Fig. 2-2
(1)
(1)
REMOVE
EIGHT
SCREWS
(1)
REAR PANEL
