HANNspree F009-15U1 User Manual
Getting started, Making connections, Selecting av
F009-15U1 15" Liquid Crystal Display TV
Selecting AV
Getting Started
Watching Broadcast or Cable TV
MAD-001166

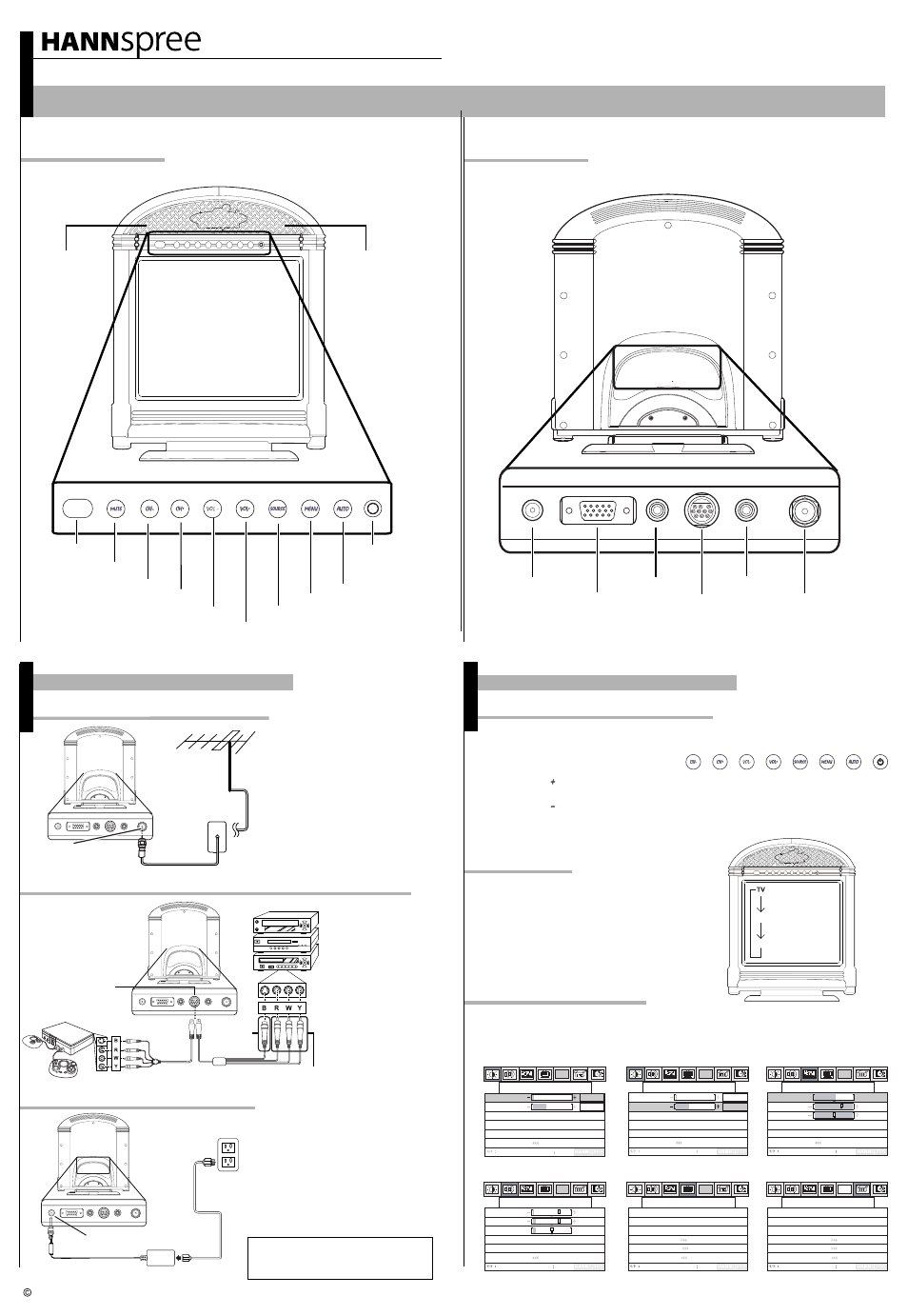

Quick Start Guide
Front View
Front View
Rear View
Rear View
Copyright 2004, Hannspree California Inc. All rights reserved.
Making Connections
Connecting to Antenna/Cable TV
Connecting to a VCR, VCD, DVD Player, or Game Device
VCR
DVD
VCD
Connecting the Power Adapter
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
Antenna
Antenna/CATV
coaxial cable
ANT jack
(VHF/UHF IN Jack)
Note : For information on connecting your
TV to a computer, refer to the user's
manual.
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
This Quick Start Guide is designed to help you set up and start using your LCD TV. Refer to the User's Manual for more detailed installation and safety instructions.
Adjusting OSD Settings
Press the MENU/ENTER button to enter the OSD menus. Use the channel buttons on the
control panel to adjust settings.
1.The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or game device.
AV connectors
S-Video
connector
4-IN-1 A/V cable
4-IN-1 A/V jack
Game device
DC 12V
Power adapter
Power cord
Power outlet
Video
Miscellaneous
PC
Video Setting
Return
Adjust
Menu Next
G
R
Hue
Saturation
Sharpness
Color Temp
Warm
PC
Audio Setting
Return
Select
Menu OK
L
R
Treble
Bass
Balance
SRS
On
Off
On
Off
Mute
PC
TV Setting
Return
Select
Menu OK
TV/CATV
MTS
Auto Program
Manual Program
Favorite Channel
CATV STD
Stereo
Yes
No
TV
Contrast
Brightness&Contrast
Brightness
Contrast
Return
Adjust
Menu Next
2
5
5
PC
PC
Miscellaneous
Return
Select
Menu OK
Language
Sleeper
OSD Display
Time Setting
More Option
Off
On
Off
English
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
2. Press the SOURCE button on the
control panel to select different source signals.
TV/CATV channel number, AV or PC
appear on the screen.
AV
PC
2. Refer to the user's
manual included
with your device
for more detailed
information.
3. The cables are
color- coded (black,
red, white, yellow).
Connect each color-
coded cable to
the appropriate
connector on your
device.
Audio
Brightness
Brightness&Contrast
Brightness
Contrast
Return
Adjust
Menu Next
2
5
5
PC
1. Press the POWER button to turn on your TV.
2. Press the SOURCE button to select TV.
3. Press the MENU button on the
control panel to enter the OSD menu.
4. Press the CH button to select the TV setting.
5. Press the MENU button.
6. Press the CH button to select TV/CATV.
Speaker
Speaker
Auto
Channel up
Volume down
Volume up
Source
Channel down
Menu
Signal sensor
/ Power
Power LED
ANT
HEADPHONE
LINE-IN
DC 12V
AV
VGA
Mute
