HP 19” Color Monitor User’s Guide

Using Your Monitor

Adjusting the Shape the Displayed Image

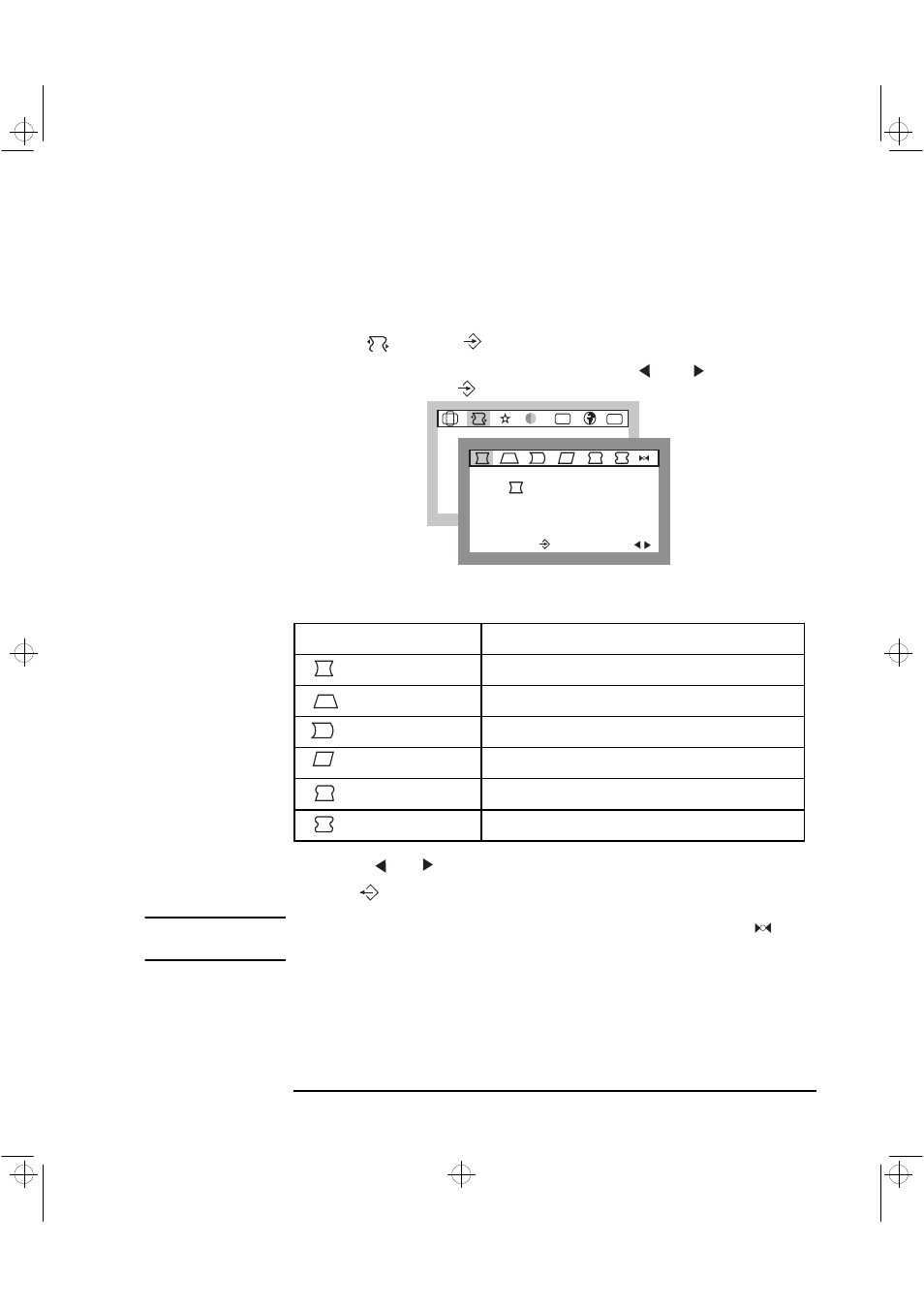

To adjust the shape of the displayed image:

Select

and press

to enter the

GEOMETRY

sub-menu.

Select the feature you wish to modify using the

and

adjustment

controls, then press

to confirm your selection.

The following table lists the adjustment options available:

Use the

and

adjustment controls to make your adjustments.

Press

to exit.

NOTE

To revert to the default shape settings of the displayed image, select

from

this sub-menu.

Adjustment Menu Item

Use to Adjust the displayed image

PINCUSHION

If the vertical edges appear to bow in or out.

TRAPEZOID

If the vertical edges do not appear parallel.

PIN BALANCE

If the vertical edges appear to bow to the left or right.

PARALLELOGRAM

If the vertical edges appear to be tilted to the left or right.

PIN S ADJUST

If the vertical edges appear to have an irregular distortion.

PIN W ADJUST

If the vertical edges appear to have an irregular distortion.

G E O M E T R Y

9 1 . 1 k H z / 8 5 H z

E N T E R :

S E L :

ETC

OSD

P I N C U S H I O N

9 1 . 1 k H z / 8 5 H z

E N T E R :

S E L :
