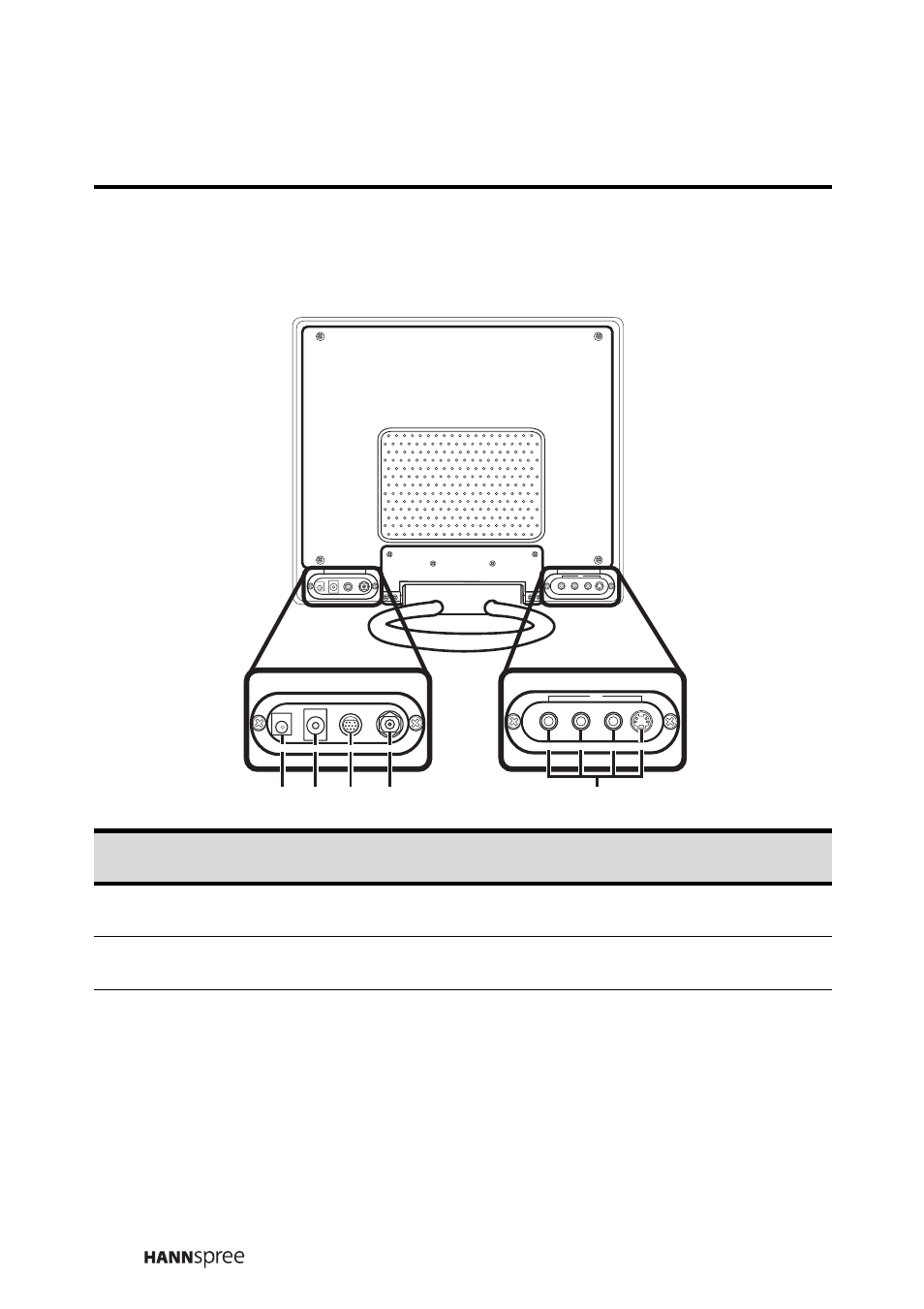

Input and Output Ports
Description
Function
1
DC-IN
Connects to the included power adapter.
2
Line out
Connects to external amplifier.
3
AV2
Use the included 4-IN-1 Audio/Video
cable to connect external devices, such
as a VCR, VCD, or DVD player.
Audio Input: AV connectors white and
red audio cables.
Video Input: AV connector video (yel-
low) or S-Video cables.
DC-IN
LINE OUT
AV 2
ANT
R
L
VIDEO S-VIDEO
AV1
DC-IN
LINE OUT
AV 2
ANT
R
L
VIDEO S-VIDEO
AV1
1
2
3
4
5
