Remove rear oem door panels – Havis-Shields KK-K9-C13-K-32 User Manual
Page 2
KK-K9-C13-K-32_INST_11-08
2
INSTALLATION:
1. REMOVE INTERIOR:
• Remove rear seats and seat belts.
• Remove top, side, and bottom plastic rear trim caps
2. REMOVE REAR OEM DOOR PANELS:
• Remove speaker, door handle, and lock
• Remove switch assembly from plastic housing (leave plug on switch)
Note: If vehicle has electric door locks the wire plug must be reattached to the switch. The switch
assembly must then be wired tired inside the door so it does not interfere with window or door
latch operations. It is also recommended to place the switch into a re-sealable plastic bag to
protect the switch from moisture.

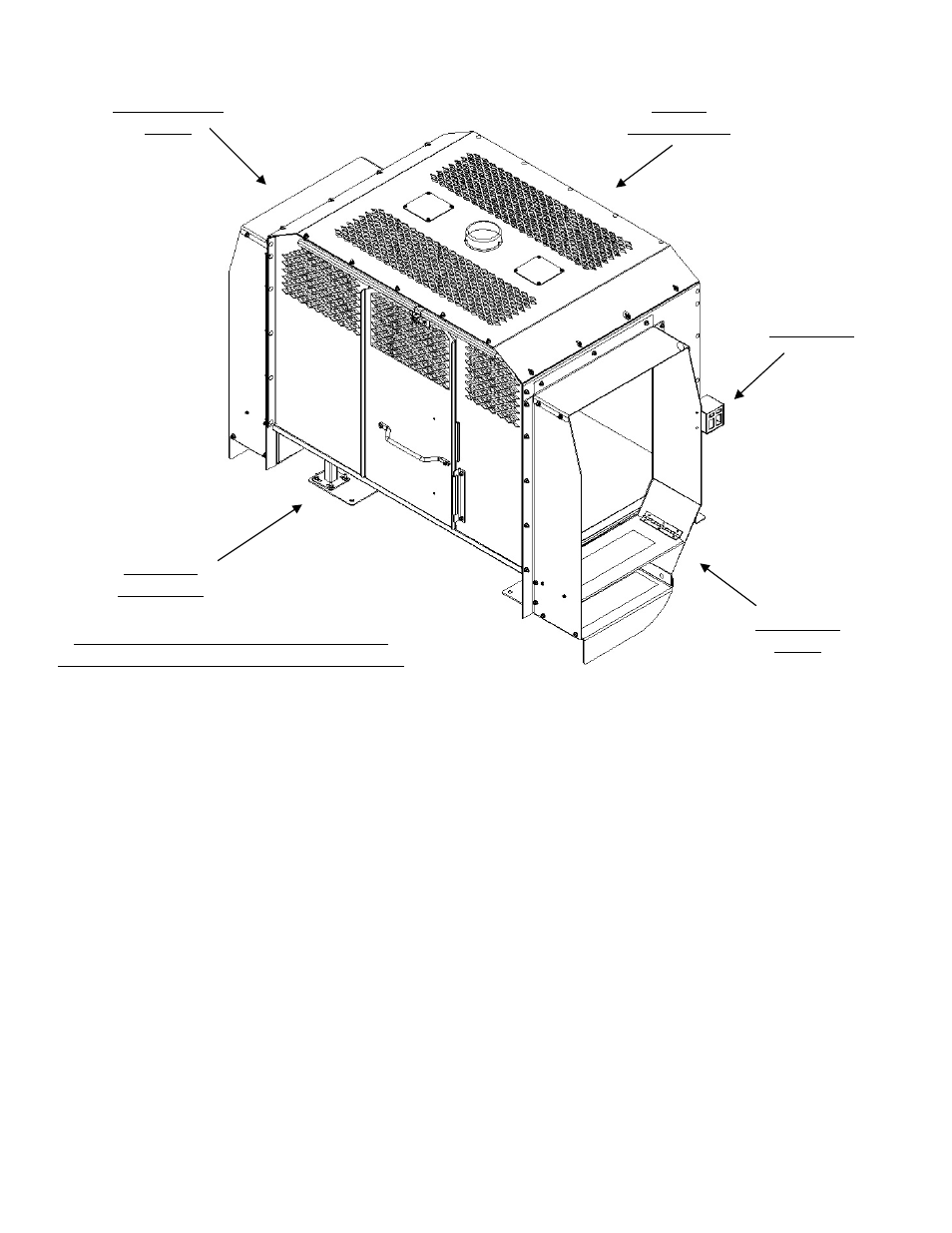

Mounting
Legs/Plates
Driver-side
tunnel
Passenger-side
tunnel
Switch box
32” K9
Main housing
Rear housing extension plate (Not Shown)
Attach in subassembly to Main Housing Floor
