35
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)

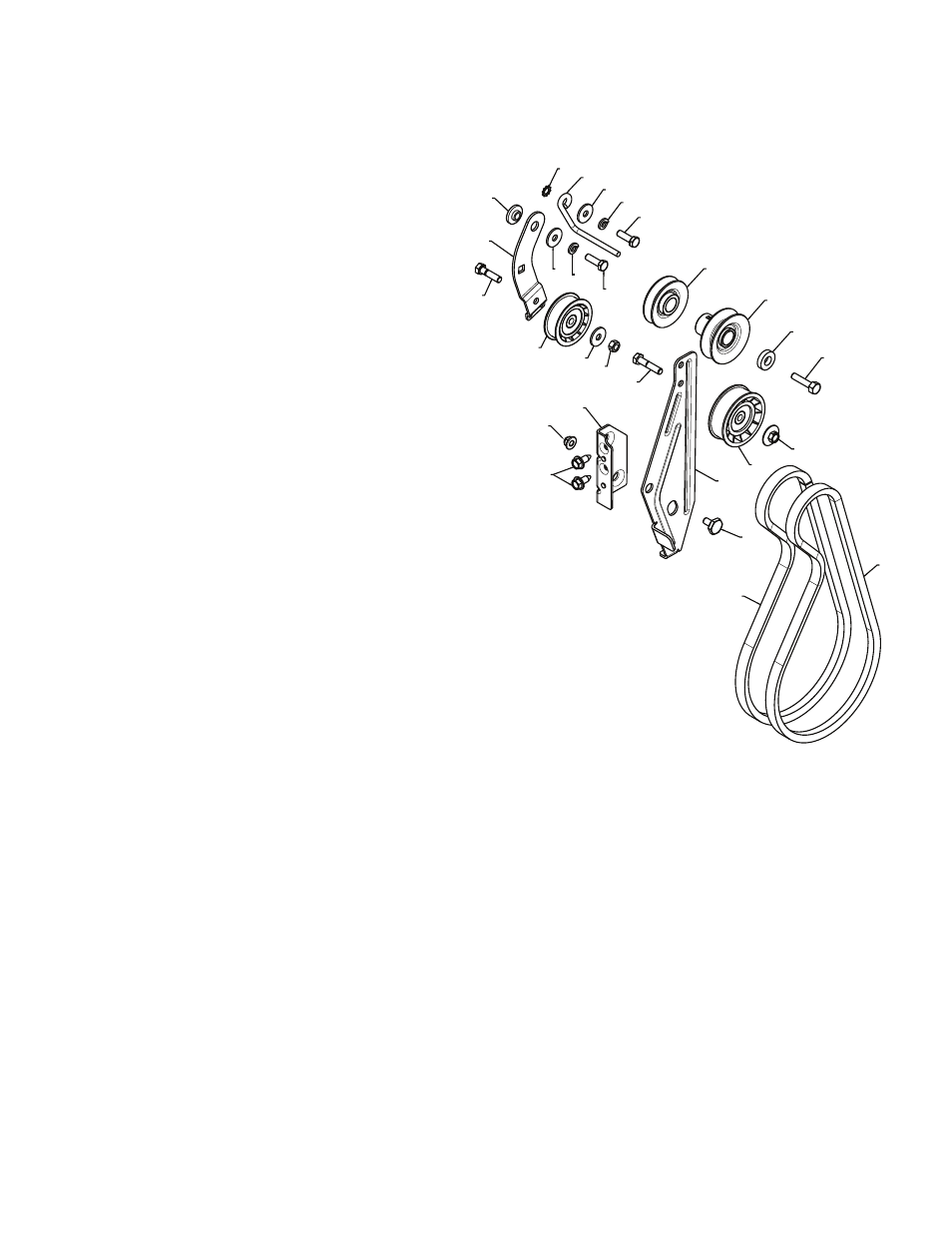

CHASSIS / ENGINE / PULLEYS
10
11
1
2
3
4
5
6
7
9
8
12
13
14
14
14
15
16
17
18
19
20
20
21
21
22
23
24
01.21.003-C
1 532 40 80-07 IMPELLER BELT
2 532 41 97-44 TRACTION BELT
3 532 43 58-02 IDLER ARM BRACKET
4 532 18 05-23 IDLER PULLEY
5 532 42 65-89 NUT 5/16-18
6 874 78 05-24 SCREW 5/16-18 X 1 .50
7 532 43 58-01 IDLER BRACKET
8 532 42 88-67 SCREW 5/16-18 X .625
9 532 42 42-97 SHOULDER BOLT 5/16-18 X .500
10 532 75 11-53 NUT 5/16-18 NYLOCK
11 532 18 77-86 TRACTION IDLER ARM
12 532 18 05-22 TRACTION PULLEY
13 874 78 05-20 SCREW 5/16-18 X 1 .00
14 532 05 92-89 WASHER
15 873 80 05-00 NUT 5/16-18
16 532 85 10-84 SCREW 3/8-24 X 1.375
17 532 40 00-26 WASHER
18 532 42 64-91 PULLEY ENG IMPELLER
19 532 42 64-90 PULLEY ENG TRACTION
20 874 61 05-16 SCREW 5/16-18 X 1 .00
21 810 04 05-00 LOCKWASHER 5/16
22 532 15 54-52 BELT GUIDE
23 811 05 05-00 LOCKWASHER 5/16
24 532 17 53-31 IDLER BUSHING
