26
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)

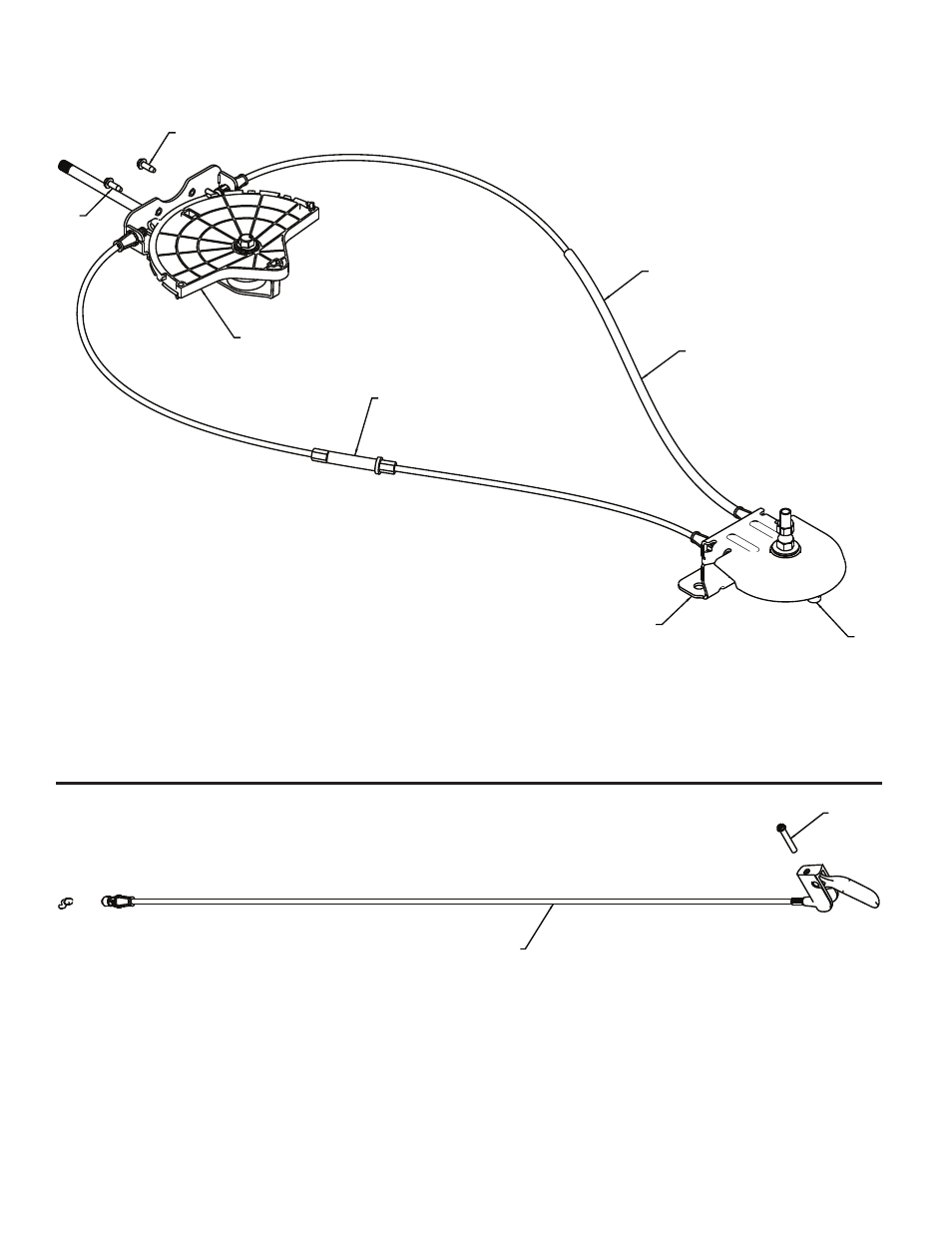

CONTROL PANEL / CHUTE
KEY PART
NO. NO. DESCRIPTION
1
2
01.15.008-A
1 532 42 12-31 STEER CABLE
2 874 04 10-24 SCREW 10−24 X 1.50
1
2
2
*3
*4
*5
*6
*7
01.09.011-B
1 532 42 82-74 LEVER/CABLE ROTATOR ASSEMBLY
2 817 50 10-10 SCREW 10-24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 42 28-23 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-75 CABLE ASSEMBLY ADJUSTABLE GRAY
*7 532 42 83-11 CABLE ASSEMBLY HEAT SHIELD GRAY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR
SERVICE PARTS ONLY.
