NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

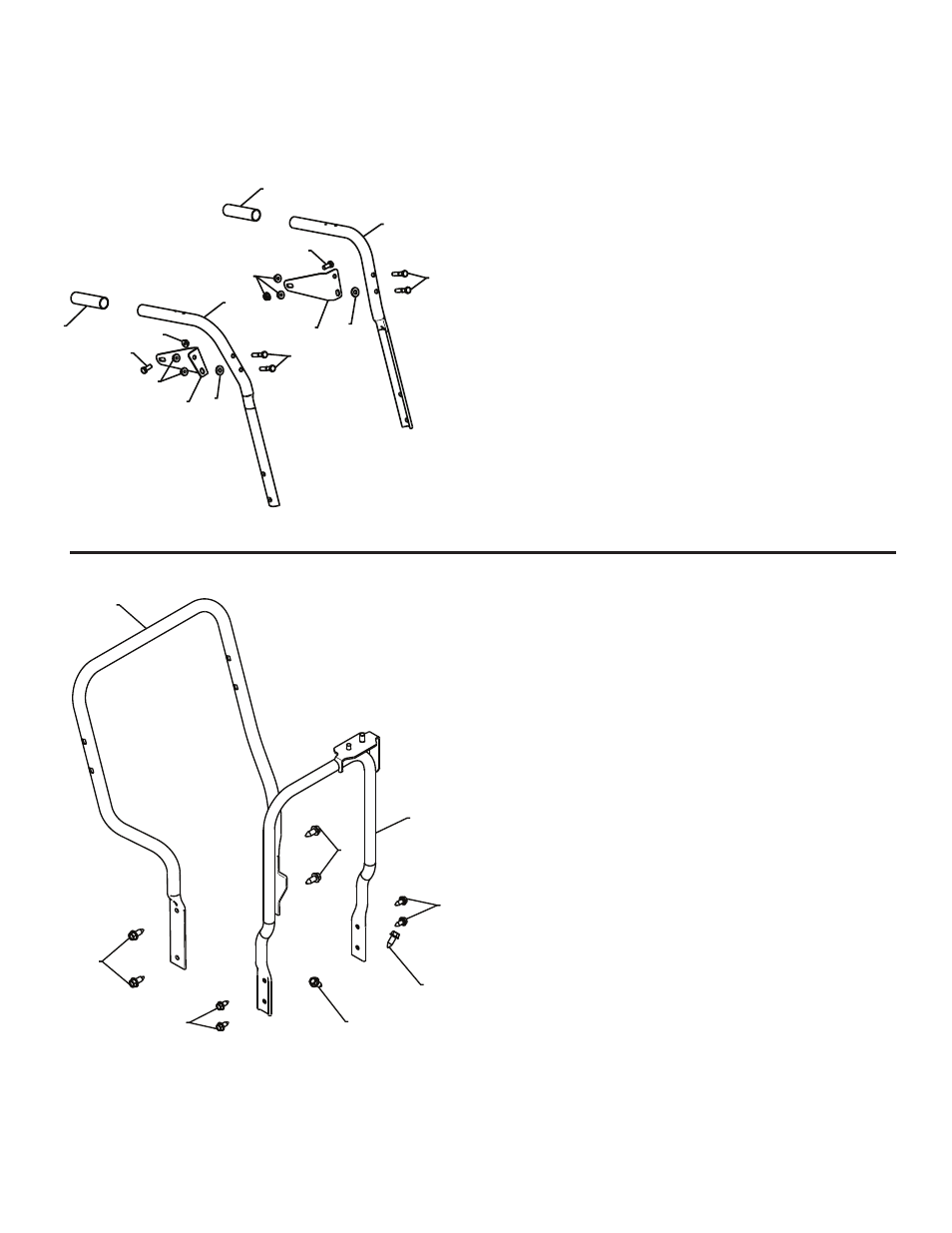

REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)
HANDLES
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4
4
4
4
01.05.014-A
1 532 42 17-05 LOWER TUBE GRAY
2 532 43 58-03 PIVOT SUPPORT
3 532 42 88-67 BOLT 5/16−18 X .750
4 817 00 06-16 SCREW 3/8−16 X 1.00
1
2
3
4
5
5
6
6 7
7 8
8
8
9
9
01.08.010-A
1 532 42 17-08 PLOW HANDLE LH
2 532 42 17-09 PLOW HANDLE RH
3 532 43 62-73 PANEL BRACKET LH
4 532 43 62-72 PANEL BRACKET RH
5 532 19 95-13 HANDLE GRIP
6 874 78 05-12 SCREW 5/16−18 X .750
7 874 78 05-24 SCREW 5/16−18 X 1.50
8 532 75 11-53 NUT 5/16−18
9 532 15 54-15 WASHER
