Repair parts, Auger housing / impeller assembly – Husqvarna 96193005500 User Manual
Page 21
21
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO.
DESCRIPTION

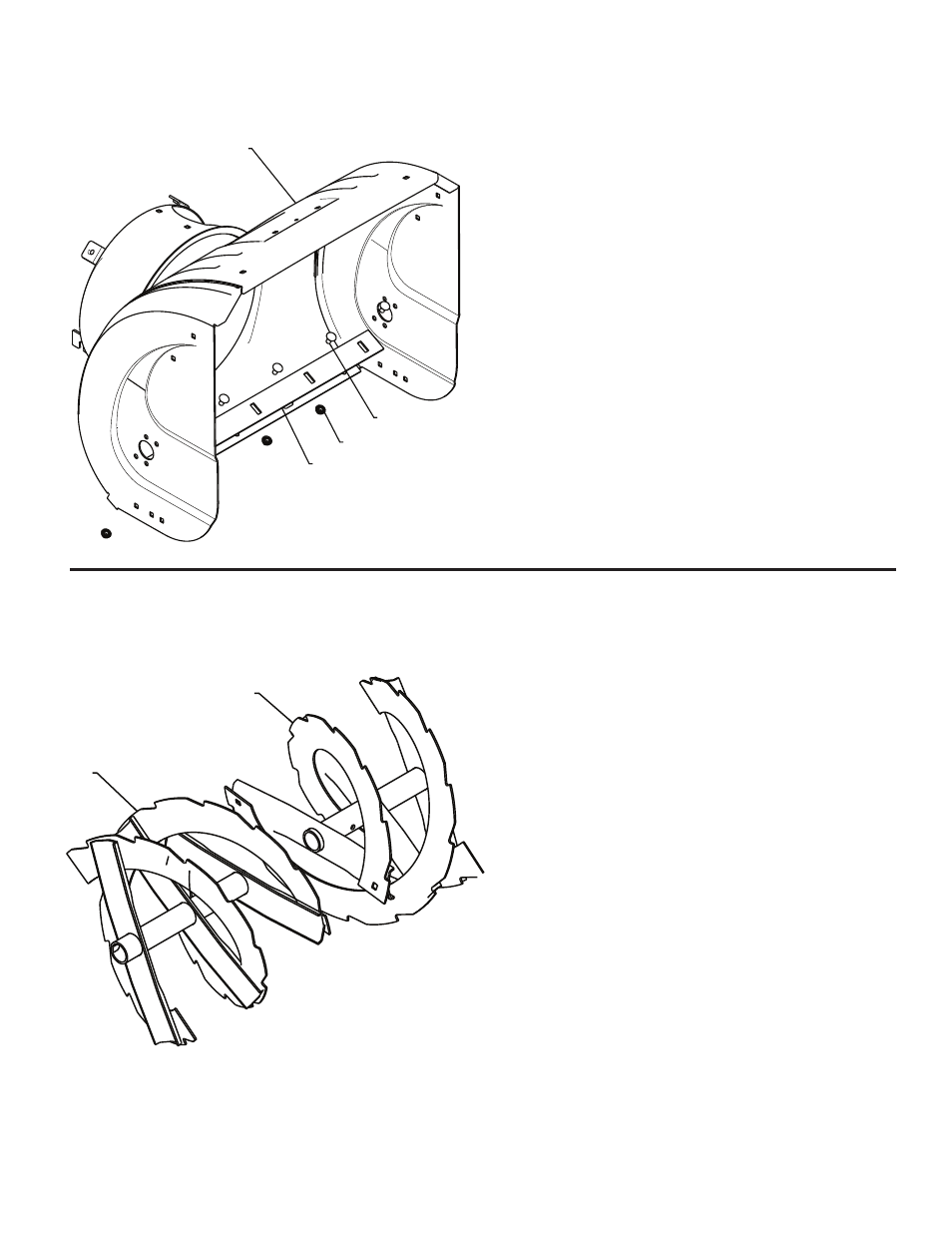

REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO.
DESCRIPTION
2
1
01.07.017-A
1
532 43 57-94 AUGER ASSEMBLY LH 24
2
532 43 57-95 AUGER ASSEMBLY RH 24
1
2
3 (5x)
4 (5x)
01.07.001-A
1
532 40 78-80 AUGER HOUSING
2
532 41 62-15 SCRAPER BAR
3
872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4
532 15 53-77 NUT 5/16−18
