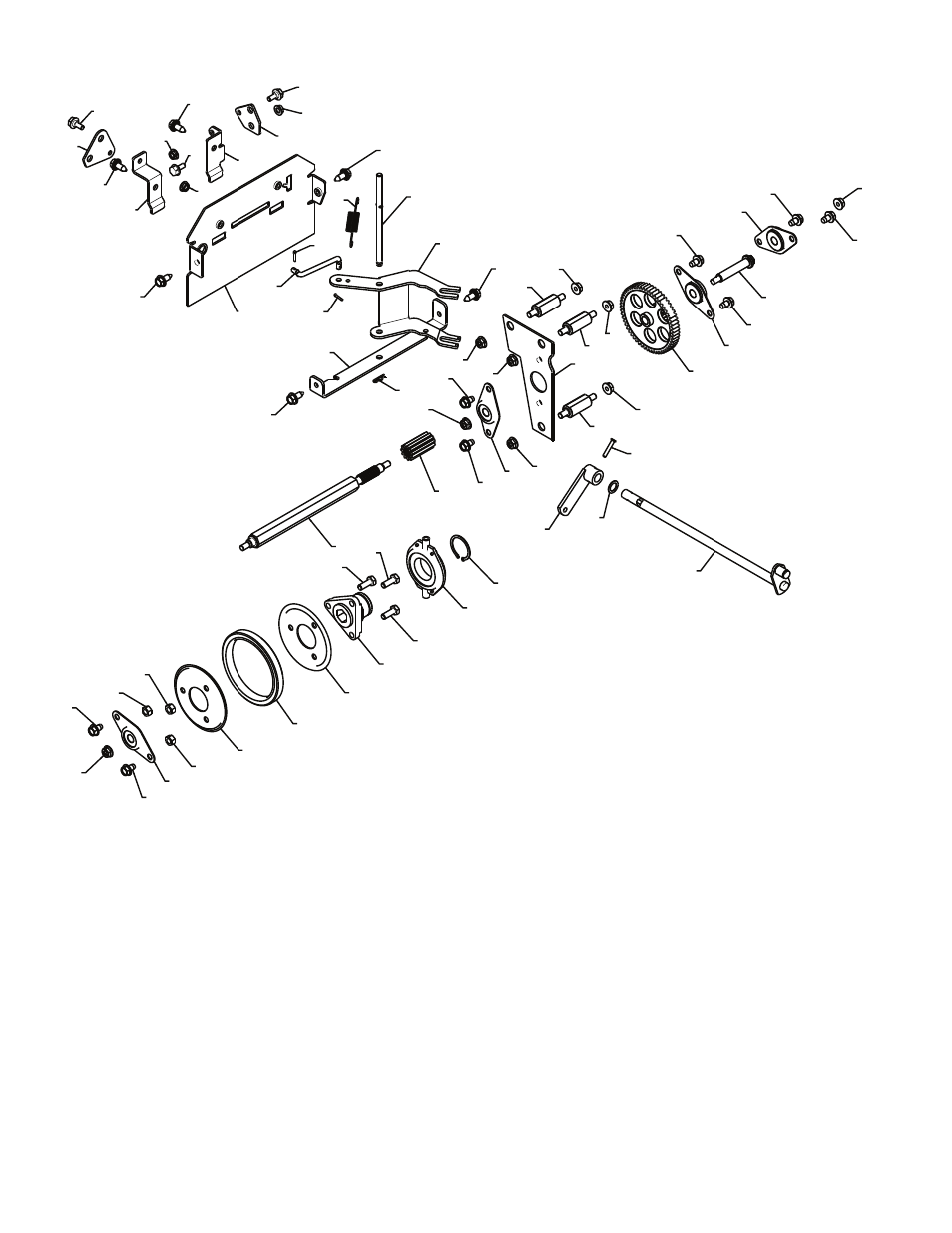

REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
2
28
28
35
30
31
32
33
34
35
35
24 23
28
34
34
01.02.011-B_Sheet_1
1
1
1
1
2
3
3
16
1
1
1
1
2
2
2
2
2
2
2
3
3
4
4
4
5
5
6
7
12
17
22
11
18
13
10
14
14
14
20
19
26
8
8
8
28
28
29
9
21
28
25
27
27
15
1 817 49 05-08 BOLT 5/16-18 X .500
2 532 75 11-53 NUT 5/16-18
3 532 18 00-17 FLANGE BEARING
4 873 93 05-00 NUT 5/16-18
5 532 43 57-89 RUBBER WHEEL PLATE
6 532 17 98-31 RUBBER WHEEL RING
7 532 17 86-13 RUBBER WHEEL HUB
8 874 76 05-14 BOLT 5/16-18 X .875
9 532 17 53-44 TRUNNION BEARING
ASSEMBLY
10 812 00 00-12 RETAINER
11 532 18 00-66 HEX SHAFT
12 532 18 00-65 PINION GEAR
13 532 43 57-90 AUXILIARY PLATE
14 532 17 92-70 SPACER PLATE
15 532 18 00-82 INTERMEDIATE GEAR
16 532 18 01-34 AUXILIARY SHAFT
17 532 40 54-85 CONTROL ARM
18 532 05 70-79 WASHER
19 532 42 75-42 CONTROL SHAFT ASSEMBLY
20 532 19 85-80 CLEVIS PIN
21 532 43 57-92 SHIFTER LEVER
22 532 43 57-93 PIVOT BRACKET
23 532 17 88-07 PIVOT PIN
24 532 18 01-35 SPRING
25 532 18 71-01 SHIFTER LINK
26 532 08 51-79 RETAINER
27 532 70 02-79 CLIP
28 532 42 88-67 SCREW 5/16-18 x .750
29 532 41 69-21 REAR PLATE
30 532 43 57-97 SHIFTER PLATE BRACKET
31 532 43 57-96 CLUTCH PLATE BRACKET
32 532 43 70-81 SHIFTER PLATE
33 532 43 70-80 CLUTCH PLATE
34 532 40 28-81 SHOULDER BOLT 1/4-20 X .500
35 532 19 17-30 NUT 1/4-20
