NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

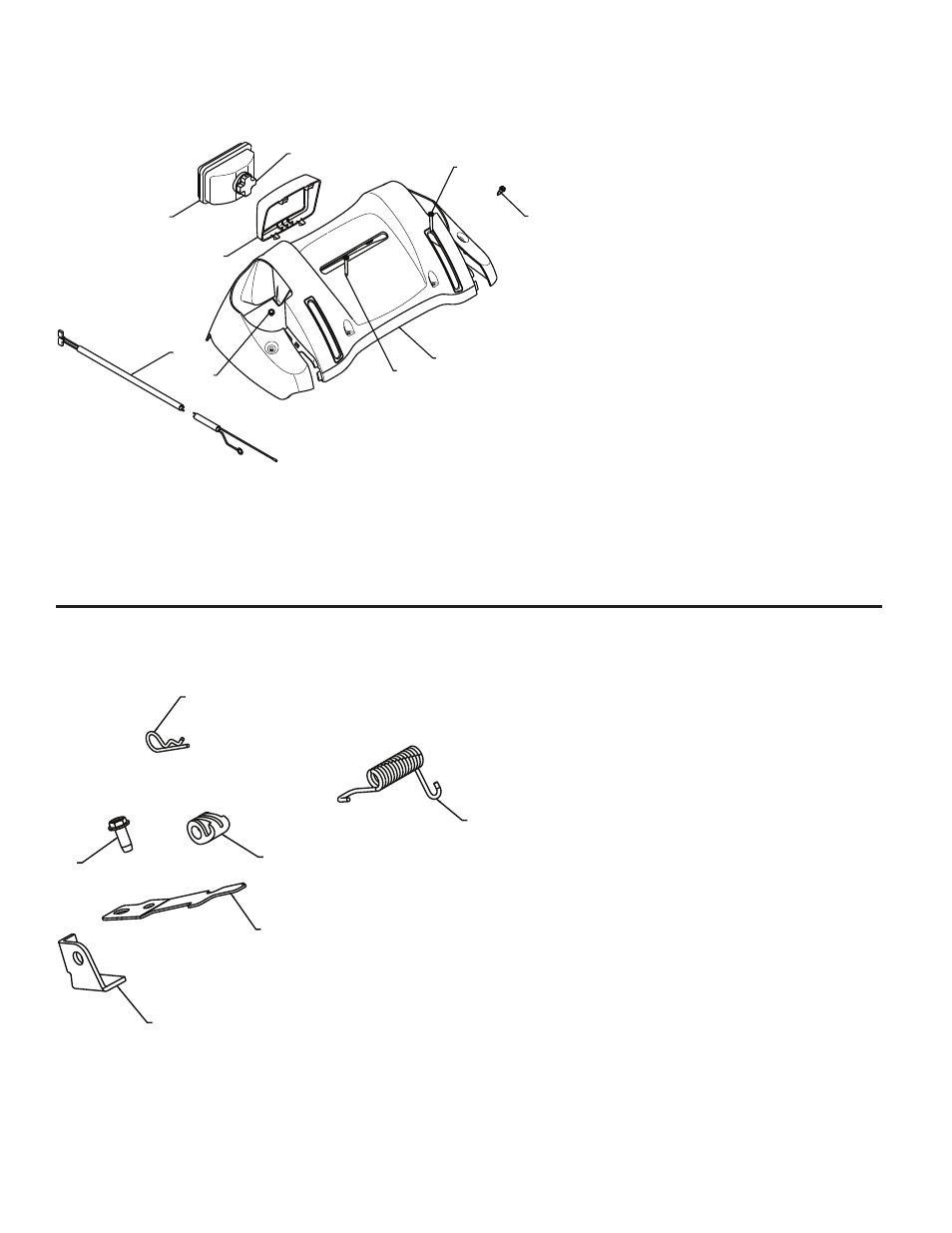

REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)
HANDLES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6 01.08.007-B
1 532 43 58-06 INTERLOCK SPRING
2 532 41 45-72 INTERLOCK CAM
3 532 17 88-31 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 43 58-05 INTERLOCK STOP
1
2
3
4
4
5
5
6
7
01.10.043-A
1 532 42 13-82 CONSOLE PANEL GRAY
2 532 42 14-48 HEADLIGHT BEZEL GRAY
3 532 18 09-27 FLOOD HEADLIGHT
4 532 18 44-71 SHOULDER SCREW 10-24 X .625
5 532 17 52-62 SCREW 10-24 X 1.25
6 532 17 87-70 WIRE HARNESS
7 532 18 37-84 BULB
