NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

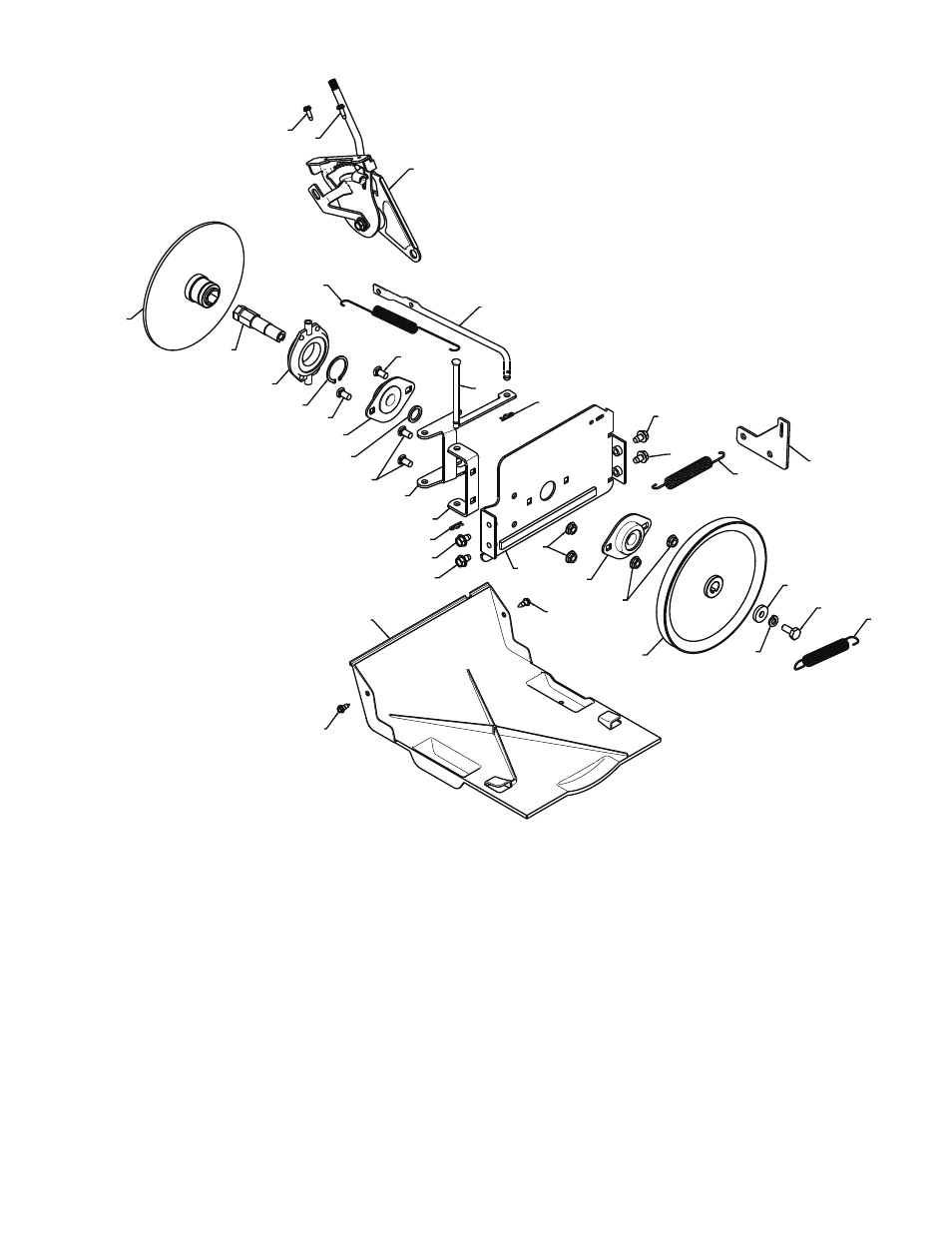

REPAIR PARTS SNOW THROWER - MODEL NUMBER 924SB (96193005500)
DRIVE
1
2
2
10
3
4
5
6
7
7
7
9
8
12
13
13
11
15
15
16
26
26
25
01.02.011-B_Sheet_2
14
23
15
15
8
17
17
18
19
20
22
27
21
24
1 532 19 88-75 SPEED SELECTOR HEAD
ASSEMBLY
2 817 50 10-10 SCREW 10-24 X .625
3 532 19 77-63 DRIVE PLATE WELDMENT
4 532 19 77-64 HEX SHAFT
5 532 17 53-44 TRUNNION BEARING
ASSEMBLY
6 812 00 00-12 RETAINER
7 872 27 05-05 CARRIAGE BOLT 5/16-18 X .625
8 532 18 89-09 FLANGE BEARING
9 532 18 25-04 SPACER
10 532 43 57-87 LEVER SHIFTER PLATE
11 532 43 57-84 SHIFTER SUPPORT BRACKET
12 532 17 86-95 PIN
13 532 08 51-79 RETAINER
14 532 40 33-00 CLUTCH ROD
15 817 49 05-08 BOLT 5/16-18 X .500
16 532 43 57-83 DRIVE MOUNT PLATE
17 532 15 53-77 NUT 5/16-18
18 532 19 10-80 TRACTION PULLEY
19 819 11 15-07 WASHER
20 810 04 05-00 LOCKWASHER 5/16
21 874 95 05-12 SCREW 5/16-18 X .750
22 532 41 45-57 TRACTION SPRING
23 532 17 90-95 RETURN SPRING
24 532 17 88-28 BRAKE SPRING
25 532 41 08-77 BOTTOM PAN
26 532 18 44-71 SCREW 10-24 X .625
27 532 43 57-72 TRACTION SPRING BRACKET
