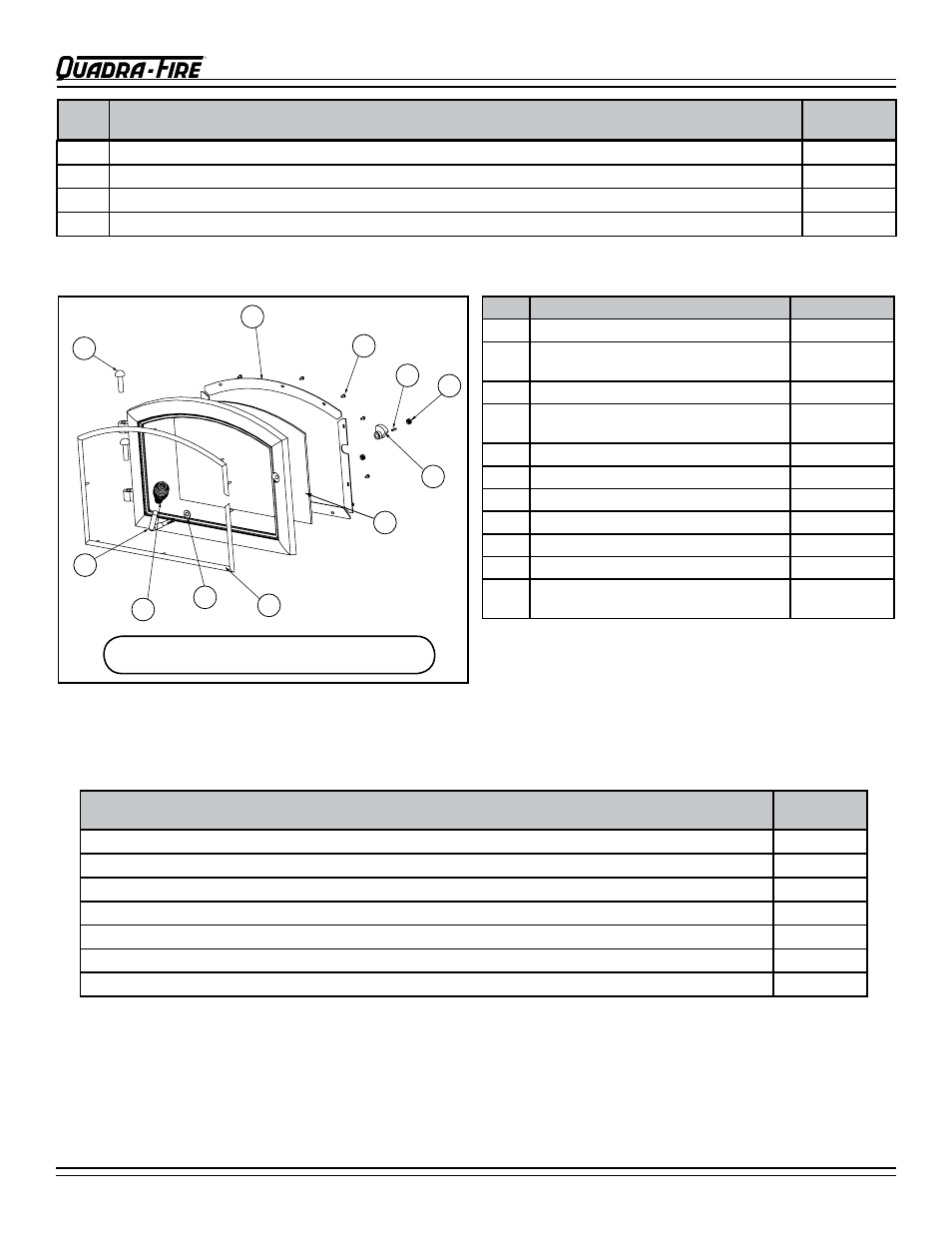

3100-I ACT WOOD INSERT
Page September 1, 2008
R
250-6381D
1 Trim Ring for Louver, Gold 430-2691
1 Trim Ring for Louver, Nickel 430-5430
Upgrade Kit to Nickel, Door UK-DRNL
14 Washer, Spacing SAE 3/8 for Door Handle 220-0010
Item
#
Part Description
Alphabetical Order
SKU
ACCESSORIES
15
16
17
18
19
20
21
22
12
13
14
Item Description Part No.
12 Door Handle 430-1131
13 Spring Handle, 1/2 inch Gold: 832-0620
Nickel: 250-8330
14 Washer, Spacing SAE 3/8 for Door Handle 222-0010
15 Trim Ring for Door (Trim Door Assemblies only) Gold: 430-2682
Nickel: 430-5340
16 Glass Assembly 7000-012
17 Cam Latch 430-1141
18 Nut, Locking 226-0100
19 Key, Cam Latch 430-1151
20 Screws, Glass Frame (10) 832-0860
21 Glass Frame, Set 832-0350
22 Hinge Pins Gold: 832-0250
Nickel: 430-5320
Glass Size: 15-1/2” w x 11-3/8” h
Part Description
Alphabetical Order
SKU
Mantel Deflector, 8” 831-1880
Offset Adapter 831-0182
Panel Set, Large, Gold, 34-1/2”h x 50-1/2”w 831-0862
Panel Set, Std., Nickel, 30-7/16”h x 44-5/8”w SP-31S-NL
Panel Set, Large, Nickel, 34-1/2”h x 50-1/2”w SP-31S-NL
Zero Clearance Adjustable Trim Support, 9” x 45”, 2”-10” high 841-0990
Zero Clearance Adjustable Trim Support, 12” x 50”, 2”-10” high ADJSPST-12
