3100-I ACT WOOD INSERT

Page 14

September 1, 2008

R

250-6381D

ZERO CLEARANCE ADJUSTABLE TRIM SUPPORT, 2” to 10”

Part No. 841-0990, size 9” x 45” and Part No. ADJSPT-12, size 12” x 50”

Included in Kit: (

1) Trim Top, (1) Trim Front, (2) Trim Sides, Double-Sided Tape (already installed)

Tools Needed:

Phillips Head Screwdriver, Sheet Metal Shears, Measuring Tape, Gloves

1. The 10 screws on each set of scissors will already be

loose when shipped.

See Figure 14A.

2. Expand scissors to desired height. Tighten screws

to hold in place using Phillips Head screwdriver.

See

Figure 14B.

3. Measure front and side trims to required height to cover

scissors and mark pieces for cutting. Cut excess mate-

rial from t

op of trim’s edge, not bottom. This edge will

be sharp; wear gloves to prevent injury to your hands.

See Figure 14B.

4. Using sheet metal shears, cut trim along the marked

edge. The cut edge fits under lip of top trim, so it

allows for some variance in your straight edge.

5. The double-sided tape that holds front and side trims

to scissors has a particularly powerful bonding adhe-

sive. Adjustments are extremely difficult once trim has

adhered to tape. Do a dry run first without removing

paper from tape.

6. Place cut edge of trim under top lip and into position

on scissors. Place side pieces on first and then front

piece. The front piece overlaps side pieces. NOTE:

The trim in the Flush Mount Kit is one piece.

7. Once you are satisfied with the positioning, remove

trim and set aside.

8. Remove the paper from double-sided tape that is

to accept trim side. Align side and then press hard

against tape to secure side piece. Repeat for other

side. Install front trim piece last.

9. There are 3 holes in the back flange of the top to

secure it to the wall if necessary. Use the appropriate

fastener for the type of wall material, i.e., brick, sheet-

rock, etc.

NOTE: 3/8” ( 9.5mm) thick tile or like material can be cut

to size and fit under lip of top trim edge for a decora-

tive touch.

See Figure 14C.

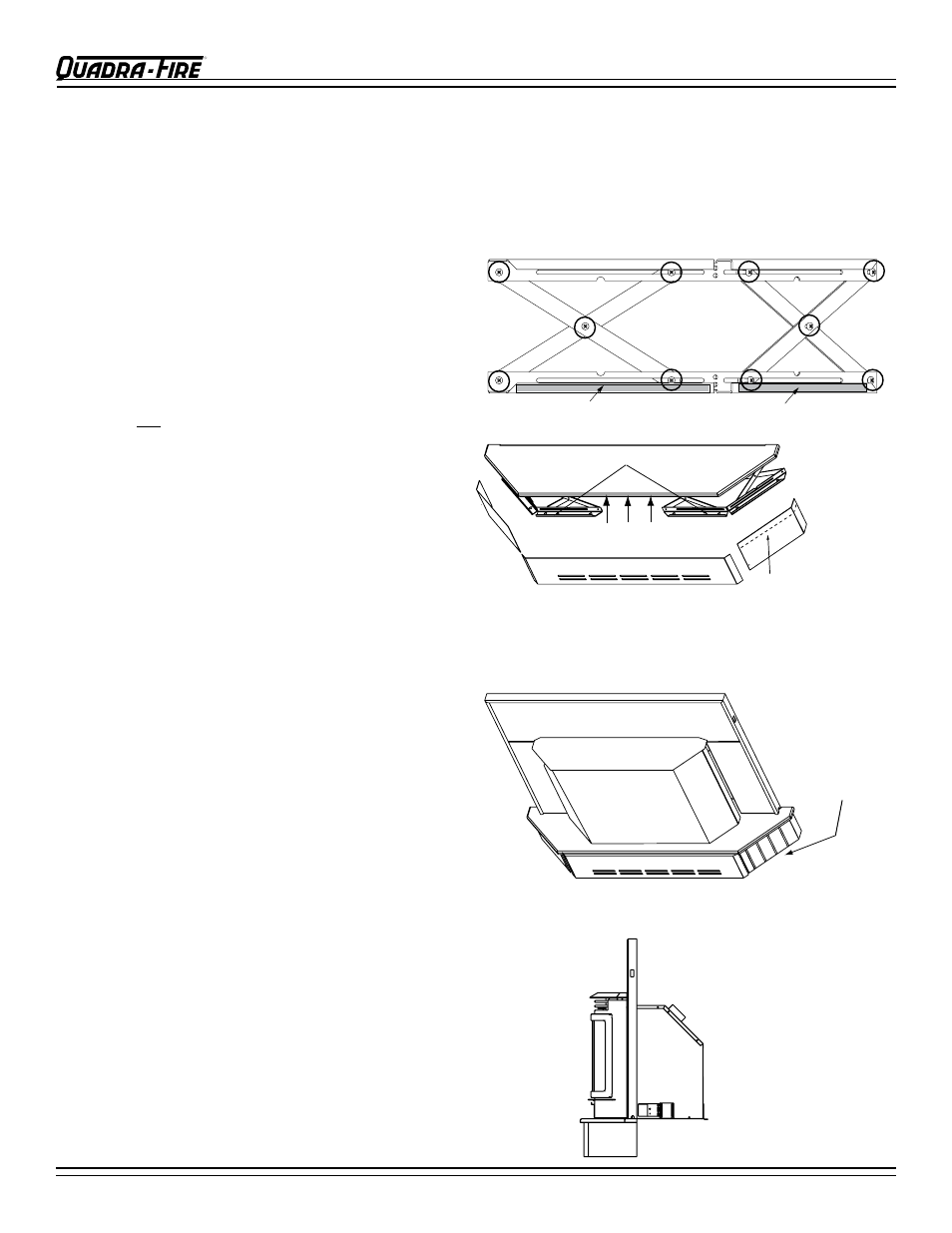

DOUBLE-SIDED TAPE

DOUBLE-SIDED TAPE

SCREWS ARE CIRCLED

EXPLODED VIEW OF SCISSORS

Figure 14A

Figure 14B

Figure 14C

Decorative tile may

be installed

INSTALL FRONT TRIM LAST.

CORNERS OVERLAP SIDE

TRIM PIECES

EXPAND SCISSORS TO DESIRED HEIGH T

CUT TOP EDGE OF TRIM,

NOT BOTTOM EDGE

Figure 14D
