● If you are installing a 2.5-inch hard drive into either of the lower two bays (bays 5 and 6), do
the following:
◦ Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket
(two on each side of the bracket).

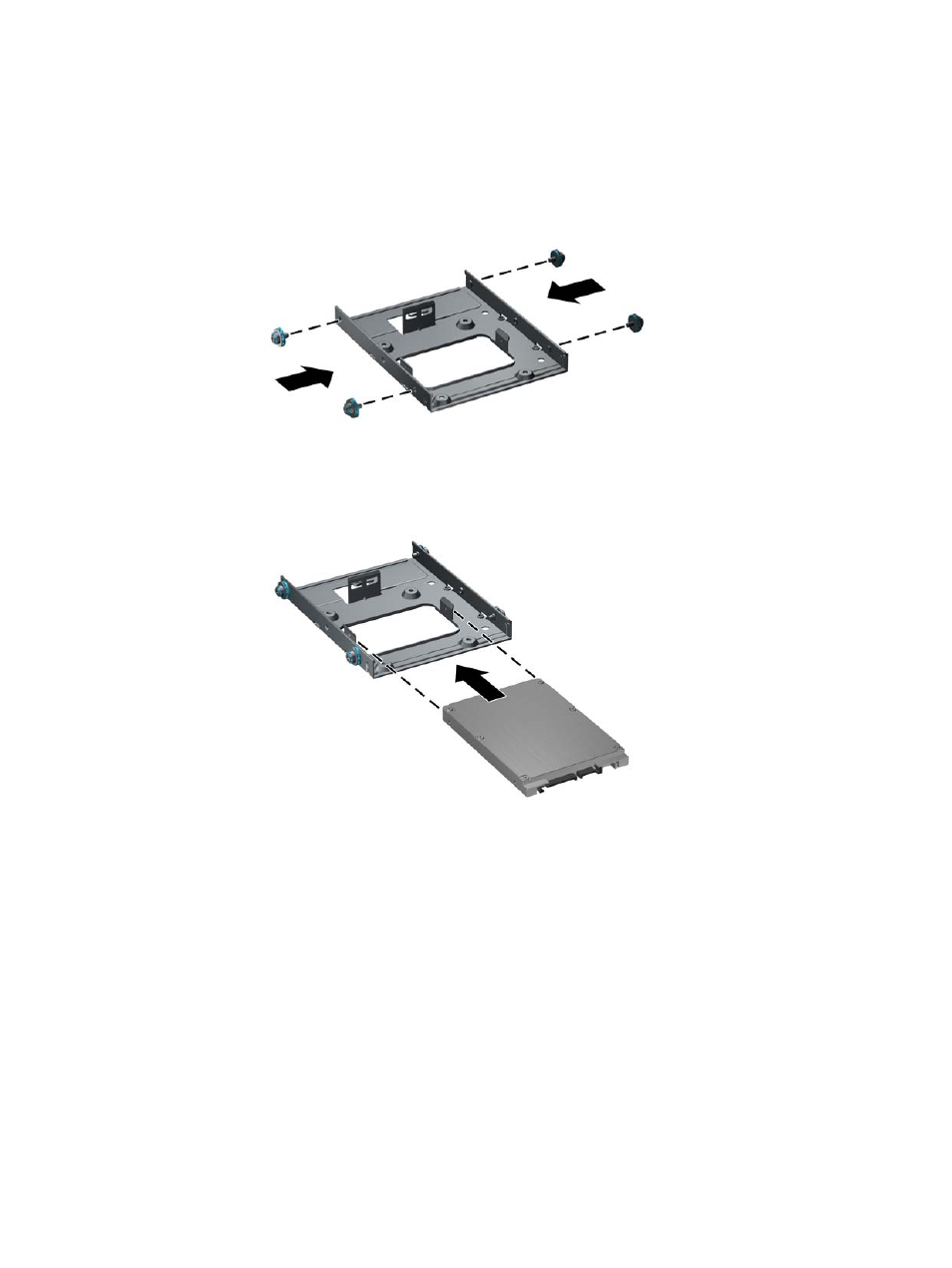

Figure 2-26 Installing Isolation Mounting Guide Screws in the 2.5-inch Adapter
Bracket
◦ Install the drive into the slot on the adapter bracket with the PCA side facing down,
aligning the three tabs on the bracket with the drive. Ensure that the power and data
connectors on the drive are properly oriented.
Figure 2-27 Installing the Drive in the Adapter Bracket
42 Chapter 2 Convertible Minitower (CMT) Hardware Upgrades ENWW
