Table 4-1 8200 Elite Series System Board Connections (continued)
No. System Board Connector System Board Label Color Component
18 PCI Express x16 downshifted
to a x4 X4PCIEXP white Expansion Card
19 PCI Express x16 X16PCIEXP black Expansion Card
20 PCI PCI white Expansion Card

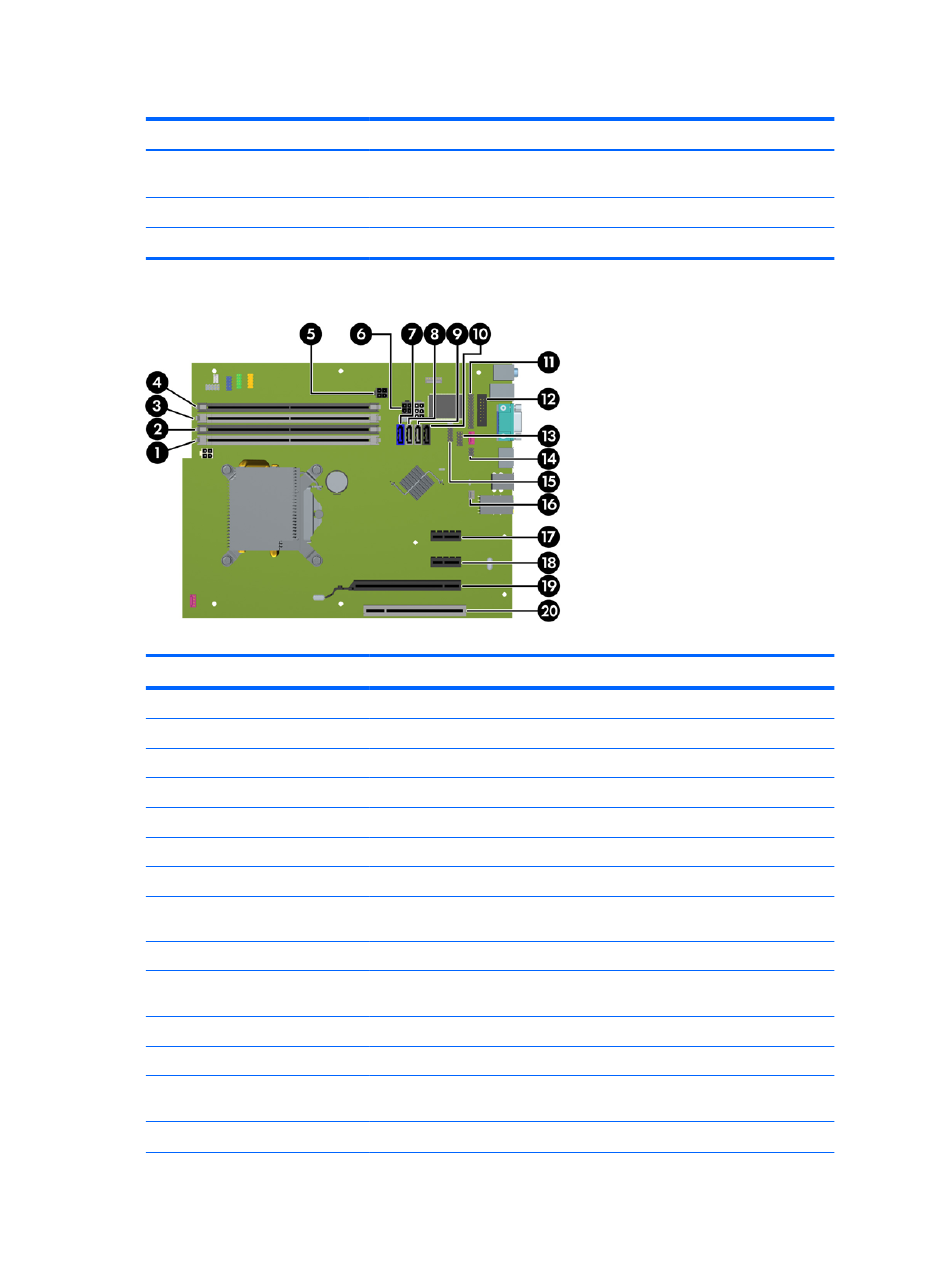

Figure 4-8 6200 Pro Series System Board Connections
Table 4-2 6200 Pro Series System Board Connections
No. System Board Connector System Board Label Color Component
1 DIMM4 (Channel A) DIMM4 white Memory Module
2 DIMM3 (Channel A) DIMM3 black Memory Module
3 DIMM2 (Channel B) DIMM2 white Memory Module
4 DIMM1 (Channel B) DIMM1 black Memory Module
5 Power SATAPWR0 black SATA Optical Drives
6 Power SATAPWR1 SATA Hard Drives
7 SATA 3.0 SATA0 dark blue 1st Hard Drive
8 SATA 2.0 SATA1 white 2nd Hard Drive, or 2nd Optical Drive
if an eSATA Adapter Cable exists
9 SATA 2.0 SATA2 white 1st Optical Drive
10 eSATA ESATA black eSATA Adapter Cable, or 2nd
Optical Drive
11 Parallel Port PAR black Parallel Port
12 Serial Port COMB black Serial Port
13 USB MEDIA black USB Device, such as a Media Card
Reader
14 Hood Lock HLCK black Hood Lock
98 Chapter 4 Small Form Factor (SFF) Hardware Upgrades ENWW
