System Board Connections
Refer to the following illustration and table to identify the system board connectors.

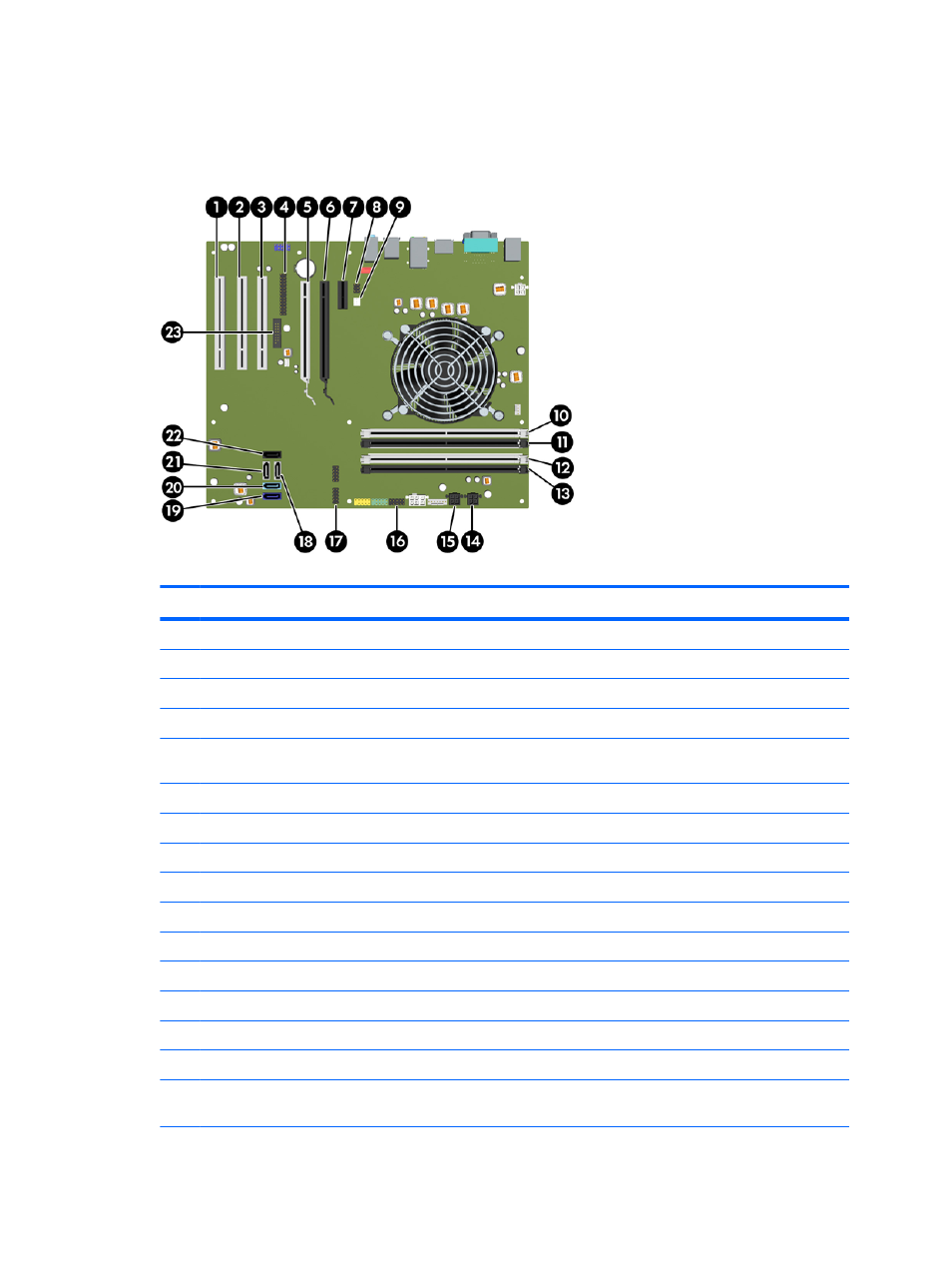

Figure 2-6 System Board Connections
Table 2-1 System Board Connections
No. System Board Connector System Board Label Color Component
1 PCI PCI3 white Expansion Card
2 PCI PCI2 white Expansion Card
3 PCI PCI1 white Expansion Card
4 Parallel Port PAR black Parallel Port
5 PCI Express x16 downshifted
to a x4 X4PCIEXP white Expansion Card
6 PCI Express x16 X16PCIEXP black Expansion Card
7 PCI Express x1 X1PCIEXP1 black Expansion Card
8 Hood Lock HLCK black Hood Lock
9 Hood Sensor HSENSE white Hood Sensor
10 DIMM4 (Channel A) DIMM4 white Memory Module
11 DIMM3 (Channel A) DIMM3 black Memory Module
12 DIMM2 (Channel B) DIMM2 white Memory Module
13 DIMM1 (Channel B) DIMM1 black Memory Module
14 Power SATA PWR1 black SATA Optical Drives
15 Power SATA PWR0 black SATA Hard Drives
16 USB MEDIA black USB Device, such as a Media Card
Reader
