What’s On the Display

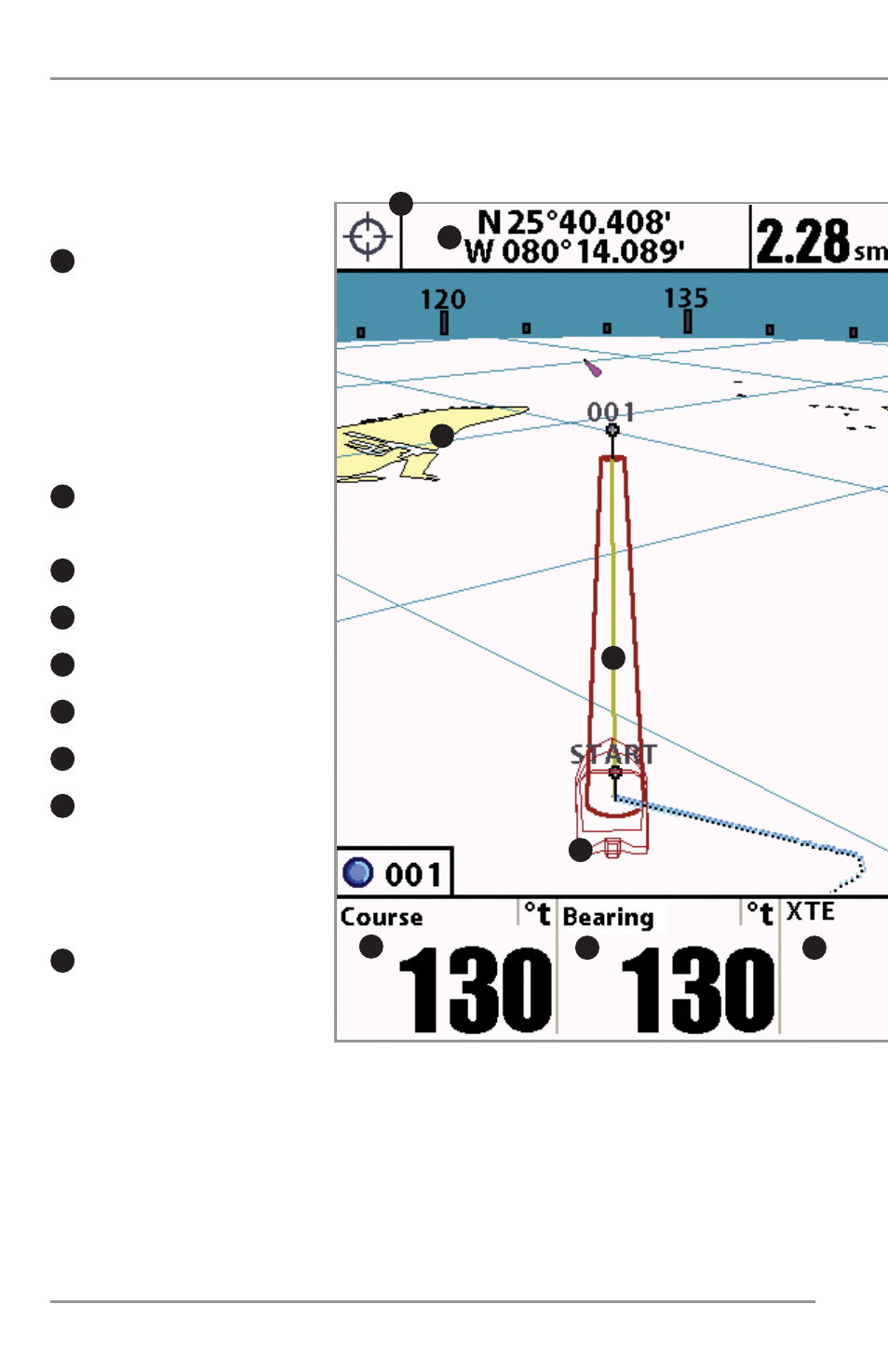

The 1100 Series™ Chartplotter can display a variety of useful information. Chart Bird's Eye Combo View
22
Cursor Info Box: indicates the
Latitude and Longitude of the cursor
position, the distance to travel to the
cursor position and the bearing to the
cursor position is shown with a GPS
receiver. A waypoint can be marked
at the cursor position for later
retrieval and use with a GPS receiver.
Latitude and Longitude
Position of Cursor
Distance: Distance to Cursor
Bearing: Bearing to Cursor
Waypoint
Active Cursor Icon
Boat Icon
Course Projection Line: Arrow
extending from the bow of the boat
that projects your current course, and
shows where the boat will go if you
continue on your present course.
Route: Two or more linked
waypoints that show intended
navigation and the shortest path
from one waypoint to the next. 9
