Installation

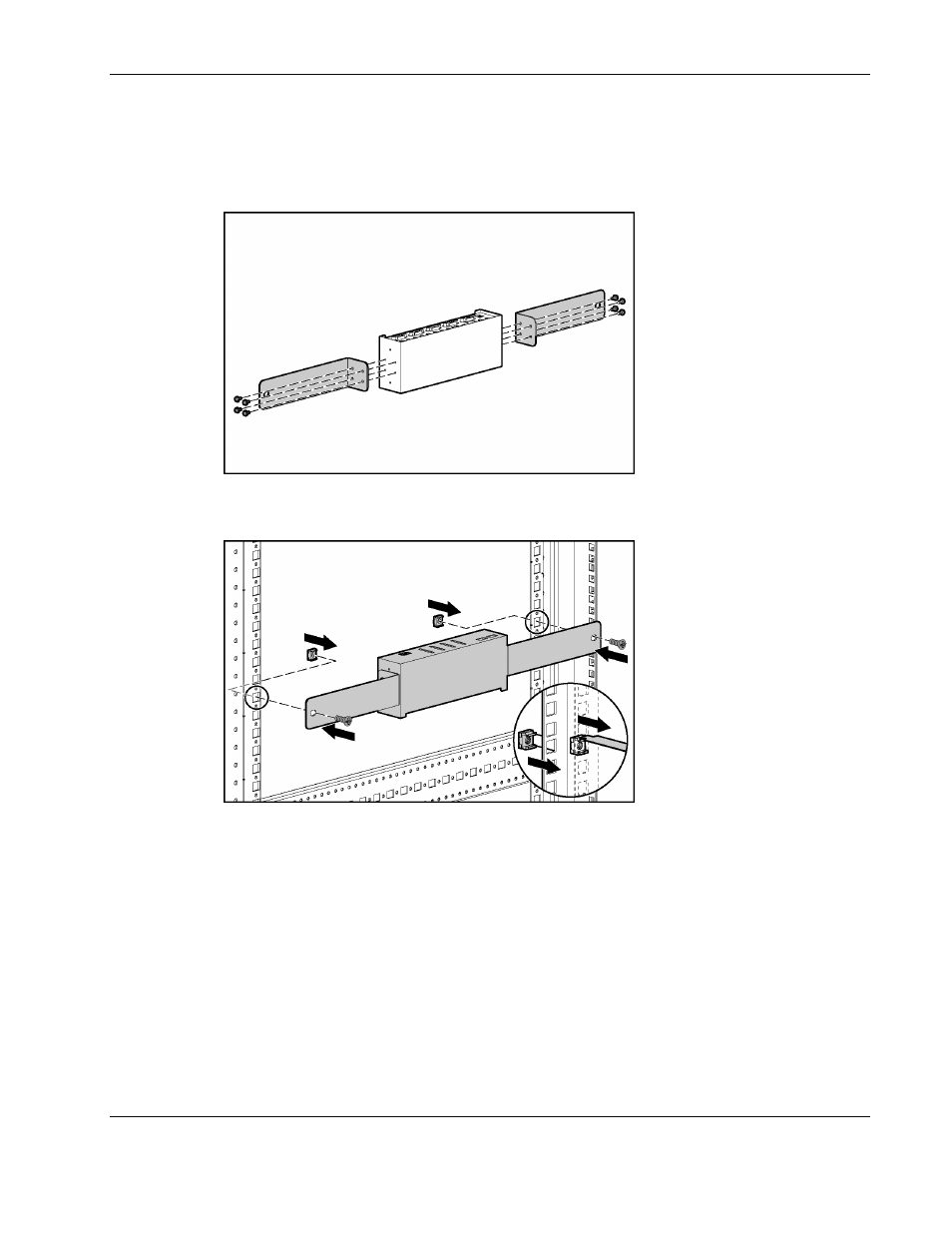

Performing a Side-Mount Installation
1. Remove the eight screws, four on each side, from the switch.
2. Attach the 0U brackets to the switch, using the screws you removed.
3. Install two cage nuts into the side-mount bracket U locations, and secure the switch to the
rails using two M-6 screws, one on each side.
HP 1x4 USB/PS2 KVM Switch User Guide
2-5
