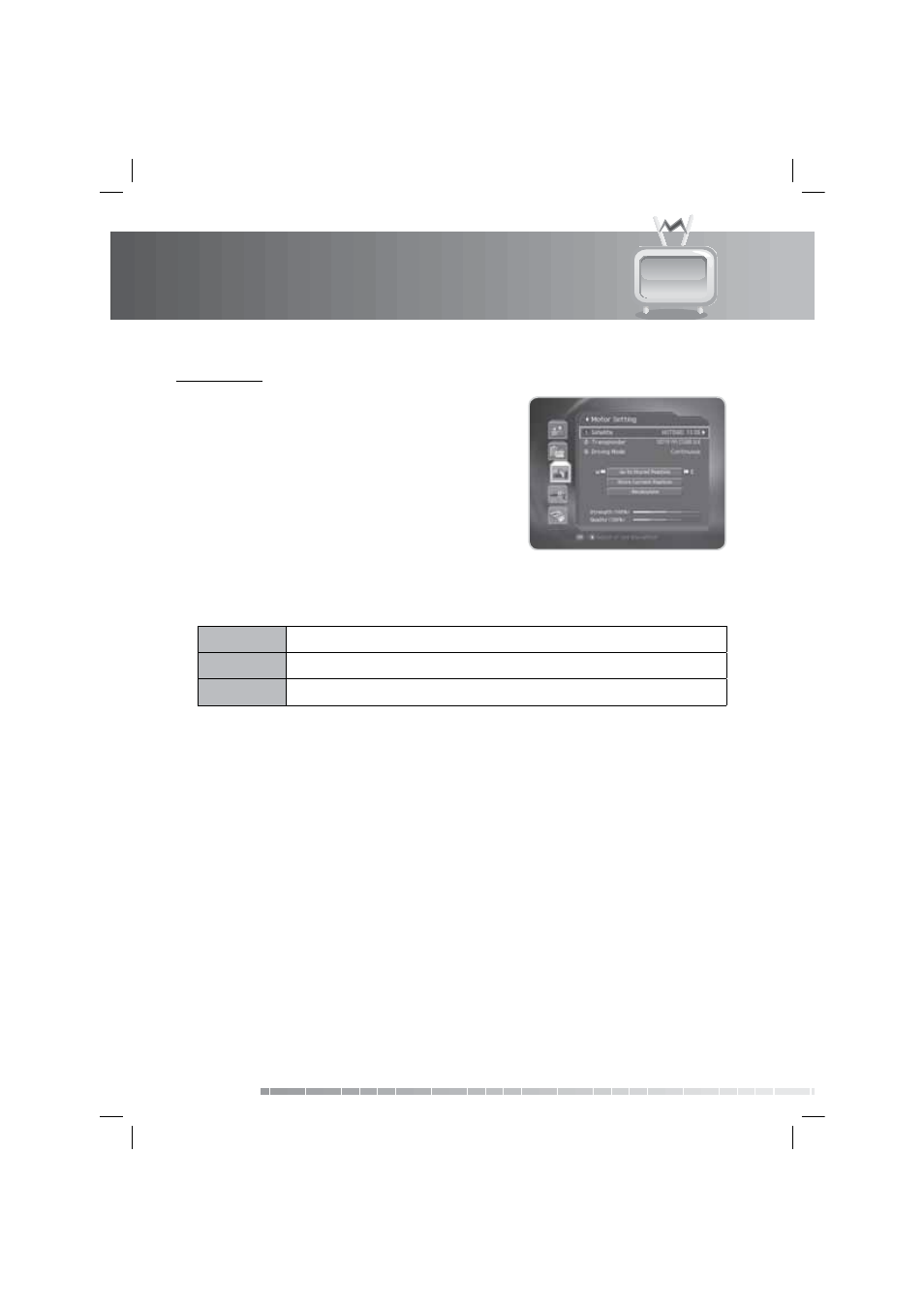

7. Installation
Motor Setting
1. Select
Motor Setting using the / button and press the
OK or button.
2. Select
Satellite using the / button and press the OK
or button. Select the satellite the antenna is pointing to
from the options using the / button and press the OK
or button.
3. Select
Transponder using the / button and press the
OK or button. Select an option for transponder using
the / button and press the OK or button. To add
another transponder, select User Defi ne from the list.
Add transponder screen will appear. Enter the values for
Frequency, Polarization, Symbol Rate and FEC. Select Done and press the OK button to complete.
4. Select
Driving Mode using the / button and press the OK or button to select an option.
When motor driving is set as Step or Time, a pop up will appear to set the driving size. Select the
driving size using the / button. Select OK and press the OK button.
Continuous
Motor moves continuously.
Step
Motor moves by specifi ed unit.
Time
Motor moves during specifi ed time.
5. Select
Go to Stored Position using the / button and press the / button to move the antenna
to the position of the selected satellite. Wait till the antenna moves to the position of the satellite.
Confi rm signal strength and quality level and fi ne-tune the antenna direction.
6. Select
Store Current Position using the / button and press the OK button to save the adjusted
position of the satellite. The position of the antenna headed for the certain satellite will be saved.
Note:
You can set the antenna position by repeating the procedure above.
7. Select
Recalculate using the / button and press the OK button to recalculate the position of
all satellites based on one satellite. Adjust the antenna position of a certain satellite. To readjust all
positions, select OK and press the OK button.
Note:
When Motor Kind is set as USALS, Driving Mode, Store Current Position, Recalculate is set to
Disabled.
