Havis-Shields Telescoping Computer Base C-TCB-17 User Manual
Install instructions c-tcb-17, Always
C-TCB-17-INST-12-04
INSTALL INSTRUCTIONS C-TCB-17
TELESCOPING COMPUTER BASE
1997-2003 FORD F-150 PICK-UP
2004 FORD F-150 (HERITAGE ONLY) PICK-UP
NOTE: HERITAGE IS 2003 BODY STYLE CARRIED OVER TO 2004. FOR 2004
FORD F-150 NEW BODY STYLE USE C-TCB-31
TOOLS REQUIRED:
3/16” Allen wrench
3/8” Standard socket set
3/8” Metric socket set
Ratcheting wrench (3/8” drive)
Powered drill w/ 3/16” drill bit
Open-end wrench set
HARDWARE & COMPONENTS:
QTY DESCRIPTION PART
#
1
Pole support assembly
CM93071-17
1
Telescoping pole assembly w/ 4” offset
CM93072-3
1
¼ x 1” Hex head lag bolt
GSM33060
Always
!
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit

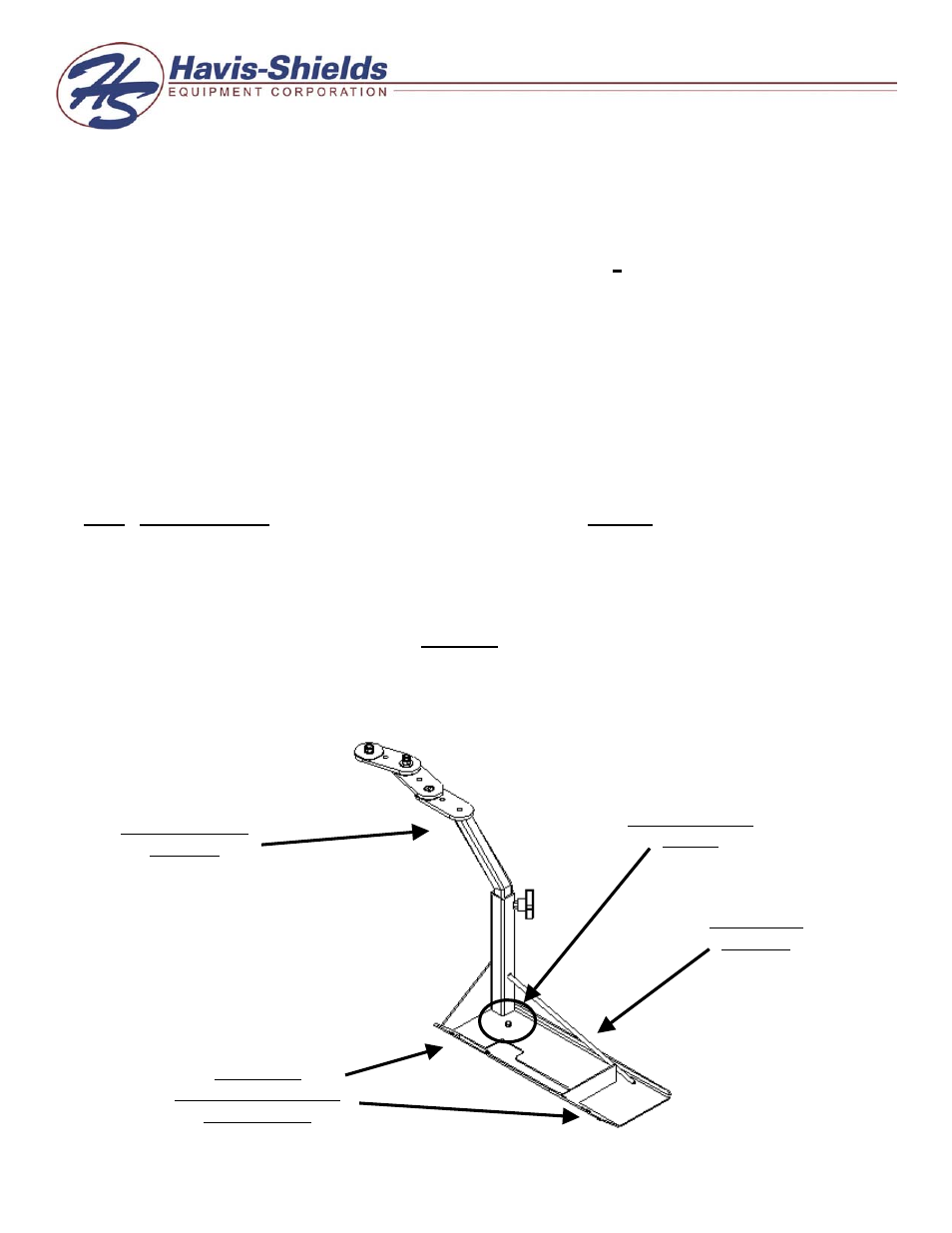

Telescoping pole
assembly
Pole support
assembly
Location of
passenger side factory
seat base bolts
¼ x 1” Hex head
lag bolt
