Drawing No. Sheet No. Revision 5
K6602906 43/46 2003/6/12

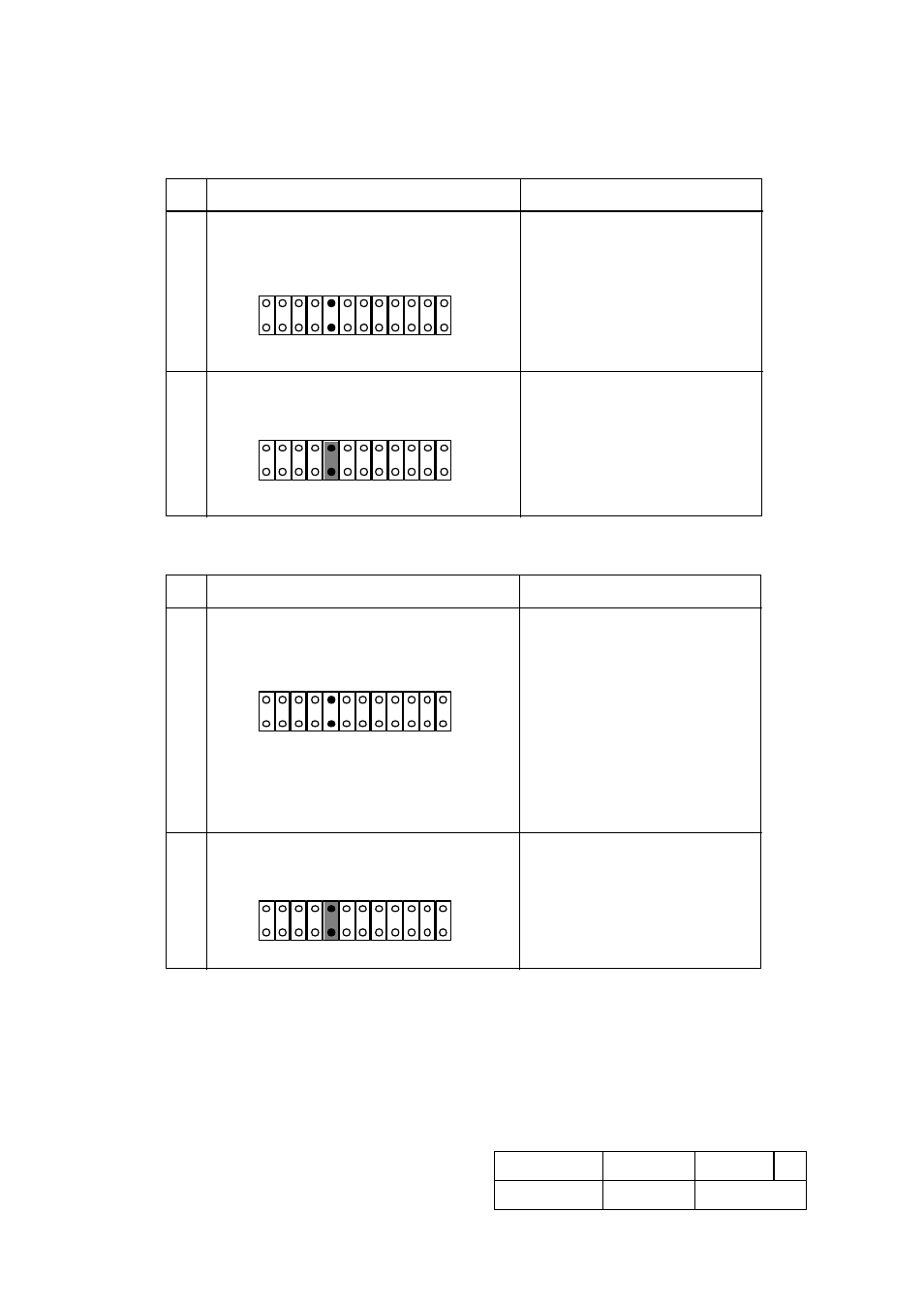

12.2.3 Disable Auto Start
WIDE LVD
No. Option Jumper Connector (C3) Meaning
Remove the Jumper Socket
for C3-9,10 (Default) 1
Install the Jumper Socket
for C3-9,10 2 Spindle motor starts only
by SCSI command
Spindle motor automatically
starts when the power is
applied or in sequence via ID
number x 10 seconds from the
time power is applied if
C3-13,14 is jumpered.
1
2
9
10
23
24
1
2
9
10
23
24
SCA-2 LVD
No. Option Jumper Connector (C3) Meaning
Remove the Jumper Socket
for C3-9,10 (Default) 1
Install the Jumper Socket
for C3-9,10 2 Spindle motor starts only by
SCSI command regardless of
AUTO START setting in SCSI
bus connector (C1).
(If AUTO START in SCSI bus
connector (C1) is open,)
Spindle motor automatically
starts when the power is
applied or in sequence via ID
number x 10 seconds from the
time power is applied if
C3-9,10 is jumpered.
1
2
9
10
23
24
1
2
9
10
23
24
(If AUTO START in SCSI bus
connector (C1) is grounded,)
Spindle motor starts only by
SCSI command.
