Drawing No. Sheet No. Revision 5
K6602906
25/46
2003/6/12
7.3 Mounting dimensions
Dimension
mm
A
101.6±0.25
B
95.25±0.25
C
3.18±0.25
D
41.28±0.5
E
44.45±0.25
F
147 max.
G
101.6±0.25
H
28.5±0.5
J
41.6±0.25
K
26.1 max.
L
6.35±0.25

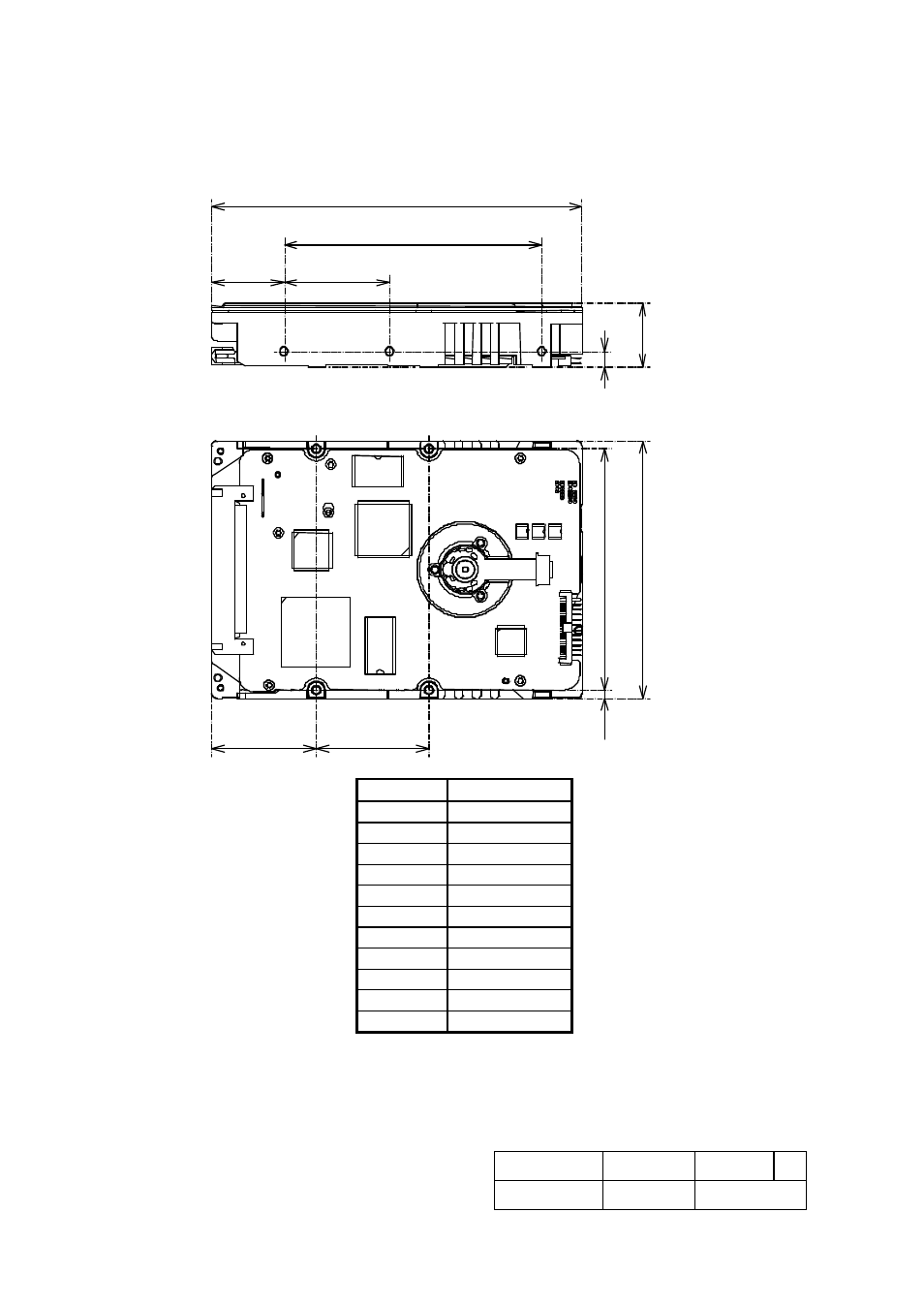

Figure 7.3 Layout of Mounting holes
F
G
H J
K
L
B A
D E C
