6
Issue: 1.0
*
The HDcctv Alliance states
Look for the unique HDcctv logo to be sure:
100m transmission over even low-grade RG59
Plug-and-play interoperability with other compliant products
Forward compatibility with future versions of the standard
See www.hidefcctv.org for details

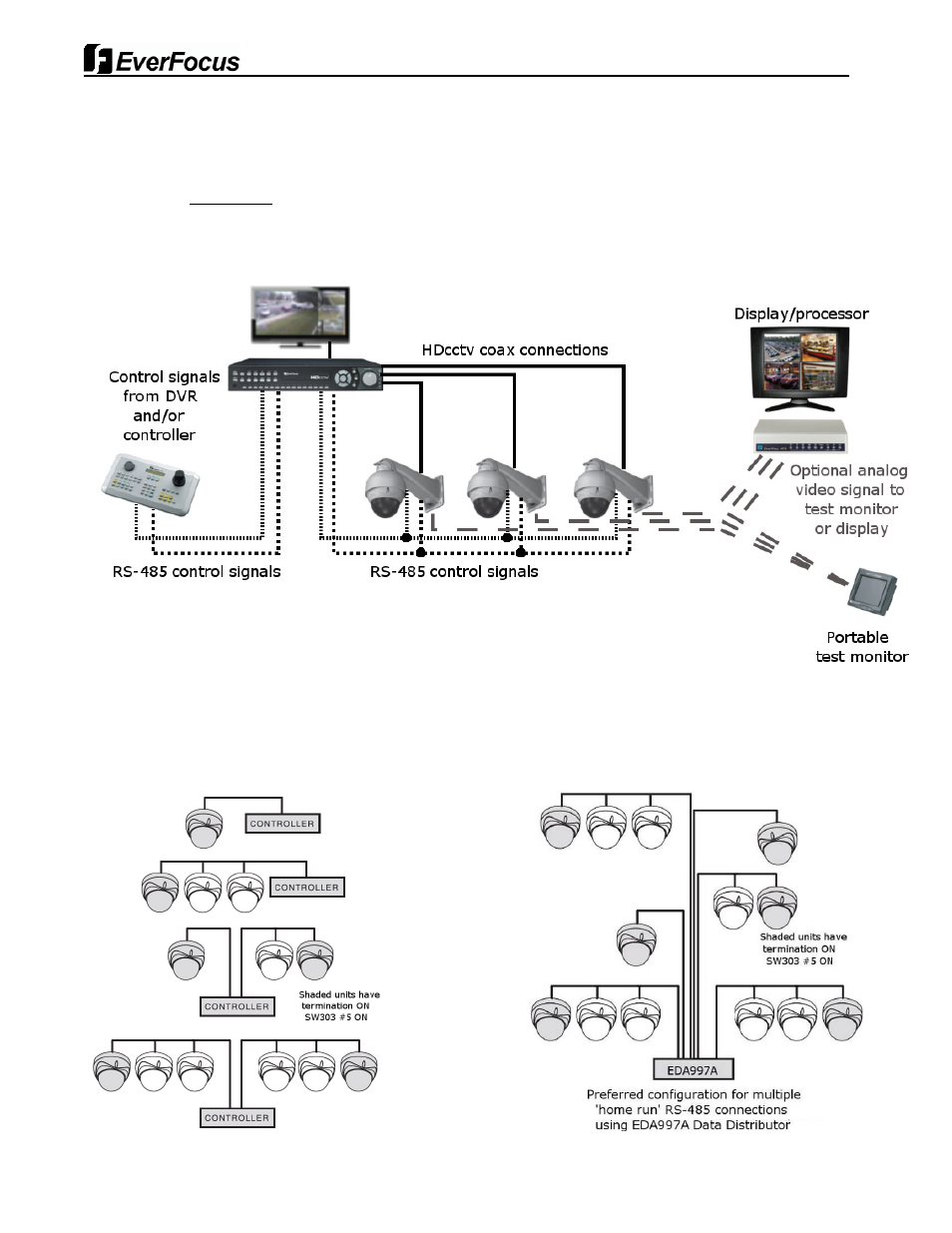

1.3 System Configuration
1.4 Termination Settings [SW303: Refer to 2.4 Dome Camera Settings]
To prevent malfunctions and/or interference with communication signals between the camera and controller, the
domes (shaded with gray color) at the end of line must have their terminations set to ON. All other domes in the
“chain” should have their terminations set to OFF.
