26
Issue: 1.0

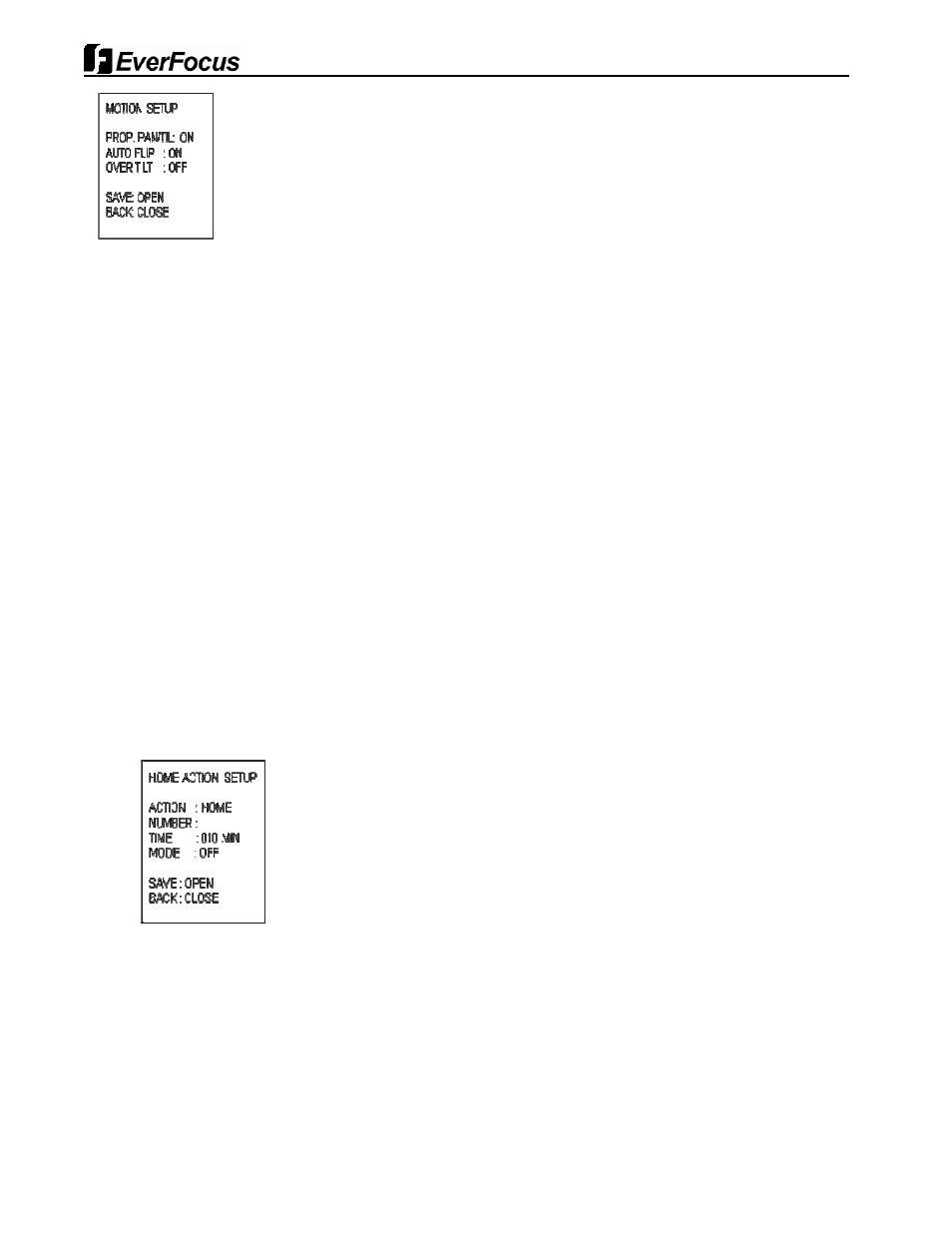

Proportional Pan/Tilt is possible to set manual speed with Zoom.
- Use the joystick [ ▶ ] to select On/Off
Auto-Flip is a function automatically reversing the image when zoom module camera passes
through the top of tilt direction (90 degree)
When tilt angle arrives at the top of tilt orbit (90degree), zoom camera module keep moving to opposite direction of tilt
to keep tracking targets. As soon as zoom camera module passes through the top of tilt direction (90degree), image
should be reversed automatically.
- Use the joystick [ ▶ ] to select On/Off
Over-Tilt is for restricting vertical view angle related to the operation range of IR sensor and some blocking view
angle mechanically. When the dome is covered with window bubble, it is recommended Over-Tilt to Off.
To prevent horizontal view cut with tilt angle, it is to restrict vertical view angle.
- Use the joystick [ ▶ ] to select On/Off
- Press [Open] button or use joystick to save settings.
- Press [Close] button or use joystick to return to previous menu (Back).
3.6.3 Home Action Setup
Home Action can be set so that the dome automatically goes to a preset, a tour or auto scan after the joystick control
has been idle for some amount of time.
The dwell time can be set from 1 minute to 60 minutes.
- Using the joystick [ ▶ ], {Home Action} can be selected to Home (default), Preset, Scan and Tour.
- {Number} is the number of {Action}. For example, {Action: Preset/Number: 001} mean Preset [1]
- Set {Time} xx min using the joystick [ ▶ ].
