Voltage Measure Point

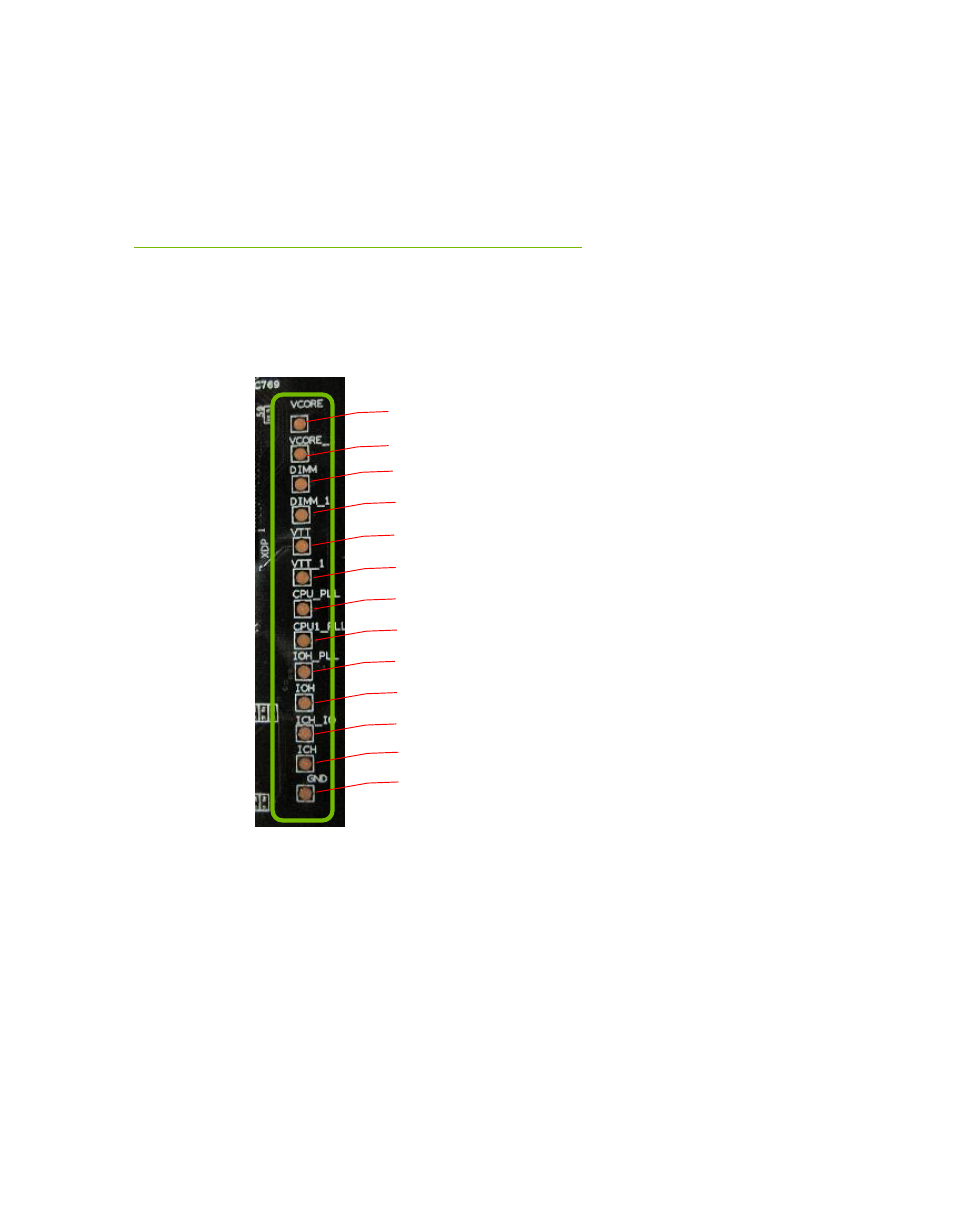

The motherboard is equipped with thirteen voltage measure point pads.
You can use a meter to measure the voltage at each pad.
CPU 0 Vcore voltage
Memory Bank 0 voltage
CPU 1 Vcore voltage
Memory Bank 1 voltage
CPU 0 Vtt voltage
CPU 1 Vtt voltage
CPU 0 Pll voltage
CPU 1 Pll voltage
IOH Pll voltage
IOH voltage
ICH I/O voltage
ICH voltage
Ground
