EVGA Classified SR-2 Motherboard
15

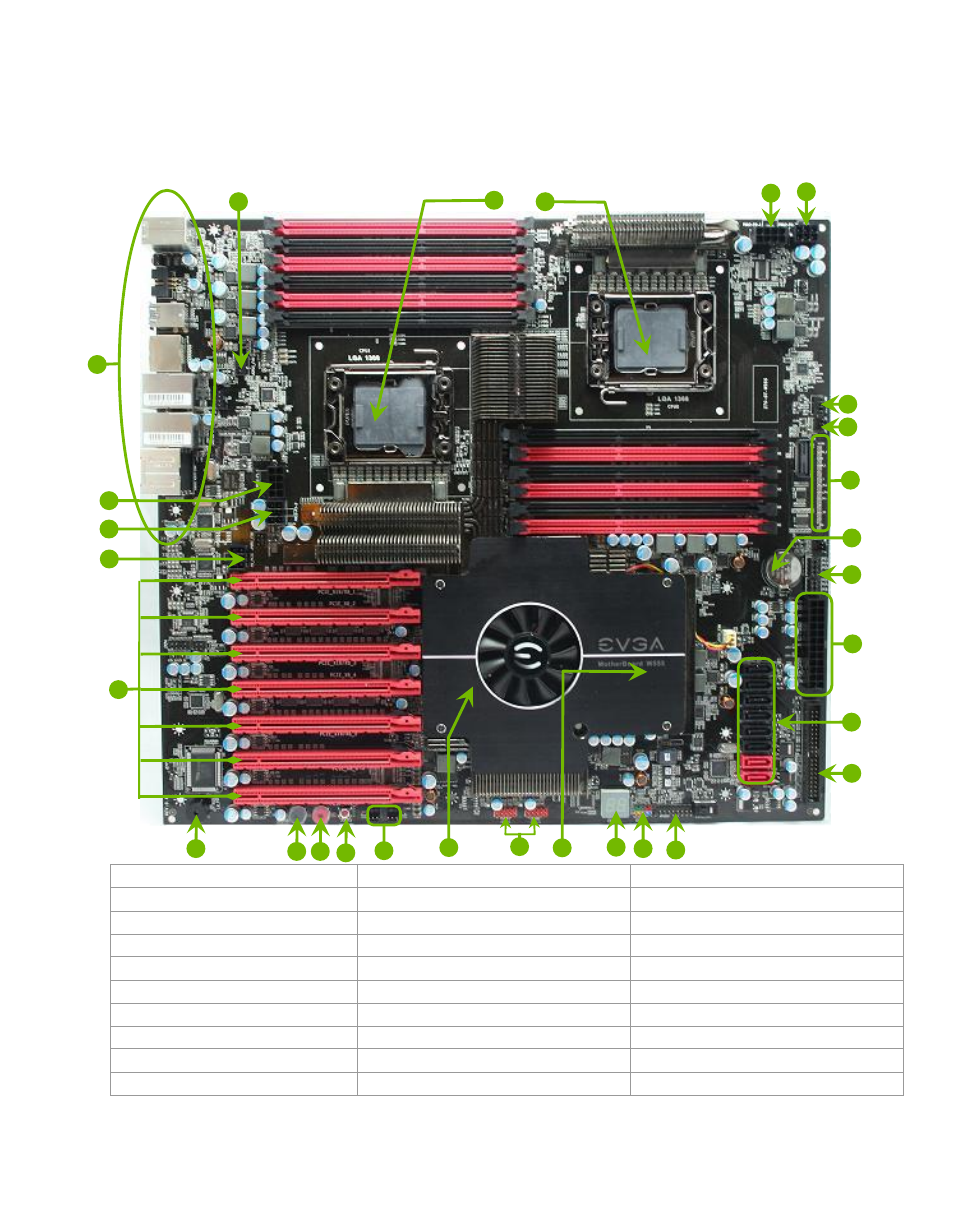

Figure 1. EVGA Classified SR-2 Motherboard Layout
1. Primary CPU socket 11. P80P connector (ECP V3) 21. PCI-E 2.0 slots
2. Secondary CPU socket 12. Front panel connector 22. 8-pin ATX_12V power connector
3. NVIDIA NF200 Chipsets 13. Debug LED Display 23. 6 Pin CPU power (optional)
4. CPU Fan headers 14. USB headers 24. Front panel Audio connector
5. Intel 5520 + ICH10R Chipsets 15. CMOS battery 25. Back panel connectors (Figure 2)
6. 24-pin ATX power connector 16. EZ voltage read points 26. 6 Pin power for PCI-E slots
7. Fan connectors 17. CMOS clear button
8. PCI-E x16 disable jumpers 18. Power button
9. IDE connector 19. Reset button
10. Serial-ATA (SATA) connectors 20. PC Speaker
21
23
25
20
10
2
5 13 14
26
22
4 1
22
23
21
19 18 17 3 12 11
9
6
8
16
7
4
15
7
