24
Connecting Cables and Setting
Switches
This section takes you through all the connections and switch settings on the
motherboard. This will include:
 Power Connections
24-pin ATX power ( PW1 )
8-pin ATX 12V power ( PW12-P0-1, PW12-P1-1 )
 Internal Headers
Front Panel Header
USB Headers
Audio Header
 IDE
 SATA II/SATA 6Gbps
 Chassis Fans
 USB 2.0/3.0
 Expansion slots
 CMOS Clear Button
 Jumper Settings
See Figure 1 on page16. to locate the connectors and jumpers referenced in
the following procedure.

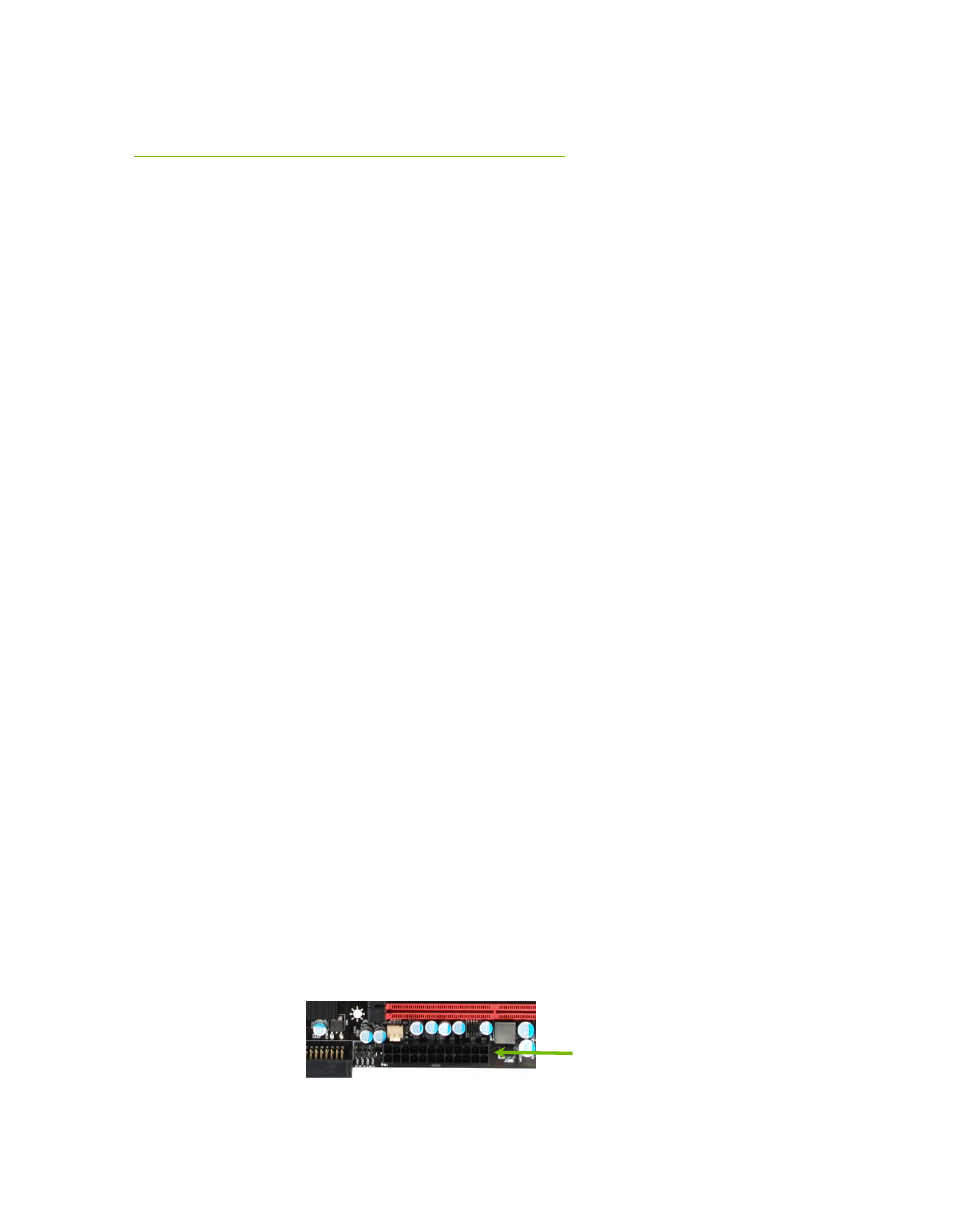

24-pin ATX Power (PW1)
PW1 is the main power supply connector located along the edge of the board
next to the SATA ports. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the
power supply cable into the connector and make sure it is secure.
PW1 connector
Plug power cable from system
power supply to PW1
Board edge
