Fan connections – EVGA Classified SR-2 User Manual
Page 31
EVGA Classified SR-2 Motherboard
31
Fan Connections

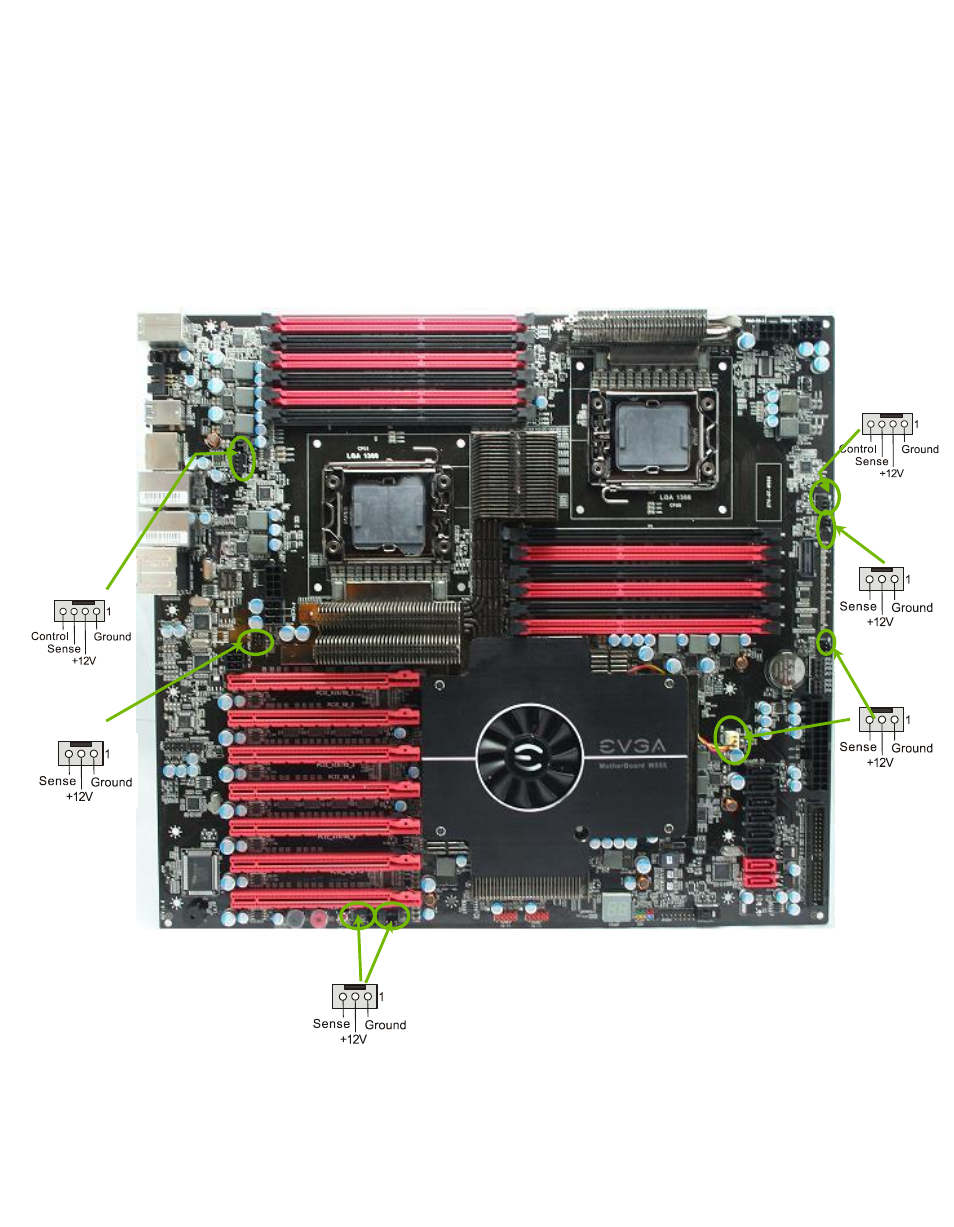

There are eight fan connections on the motherboard. The fan speed can be
detected and viewed on select ports in the
PC Health Status
section of the
CMOS Setup. The fans are automatically turned off after the system enters S3,
S4 or S5 mode.
Note: the CPU fan cable can be either
a 3-pin or a 4-pin connector. Connect
a 3-pin connector to pins 1, 2, and 3
on the CPU fan header.
