49-2001160 Rev. 0
23
INST
ALLA
TION INSTRUCTIONS
Installation Instructions
COOKTOP INSTALLATION (Cont.)
17. BEFORE MAKING
ELECTRICAL CONNECTIONS
Note to Electrician: The power leads supplied with
WKLVDSSOLDQFHDUH8/UHFRJQL]HGIRUFRQQHFWLRQWR
large gauge household wiring.
The insulation of these leads is rated at
temperatures much higher than the temperature
rating of household wiring. The current carrying
capacity of a conductor is governed by the wire
gauge and also the temperature rating of the
insulation around the wire.
WARNING
Aluminum Wiring - IMPROPER
CONNECTION OF ALUMINUM HOUSE WIRING
TO THE COPPER LEADS CAN RESULT IN
SERIOUS PROBLEMS.
Attach copper wires to aluminum wiring using
VSHFLDOFRQQHFWRUVGHVLJQHGDQG8/OLVWHGIRU
joining copper to aluminum. Follow the connector
manufacturer’s recommended procedure closely.
Service Loop – Leave a loop in the wires to the
cooktop so that the cooktop can be lifted 12 inches
without having to disconnect the wiring.
ELECTRICAL REQUIREMENTS*
Model # Voltage Frequency KW
PP9830 120/240V 60Hz 9.1KW
208Y/120V 60Hz 6.9KW
* For reference only. Verify with product rating plate.

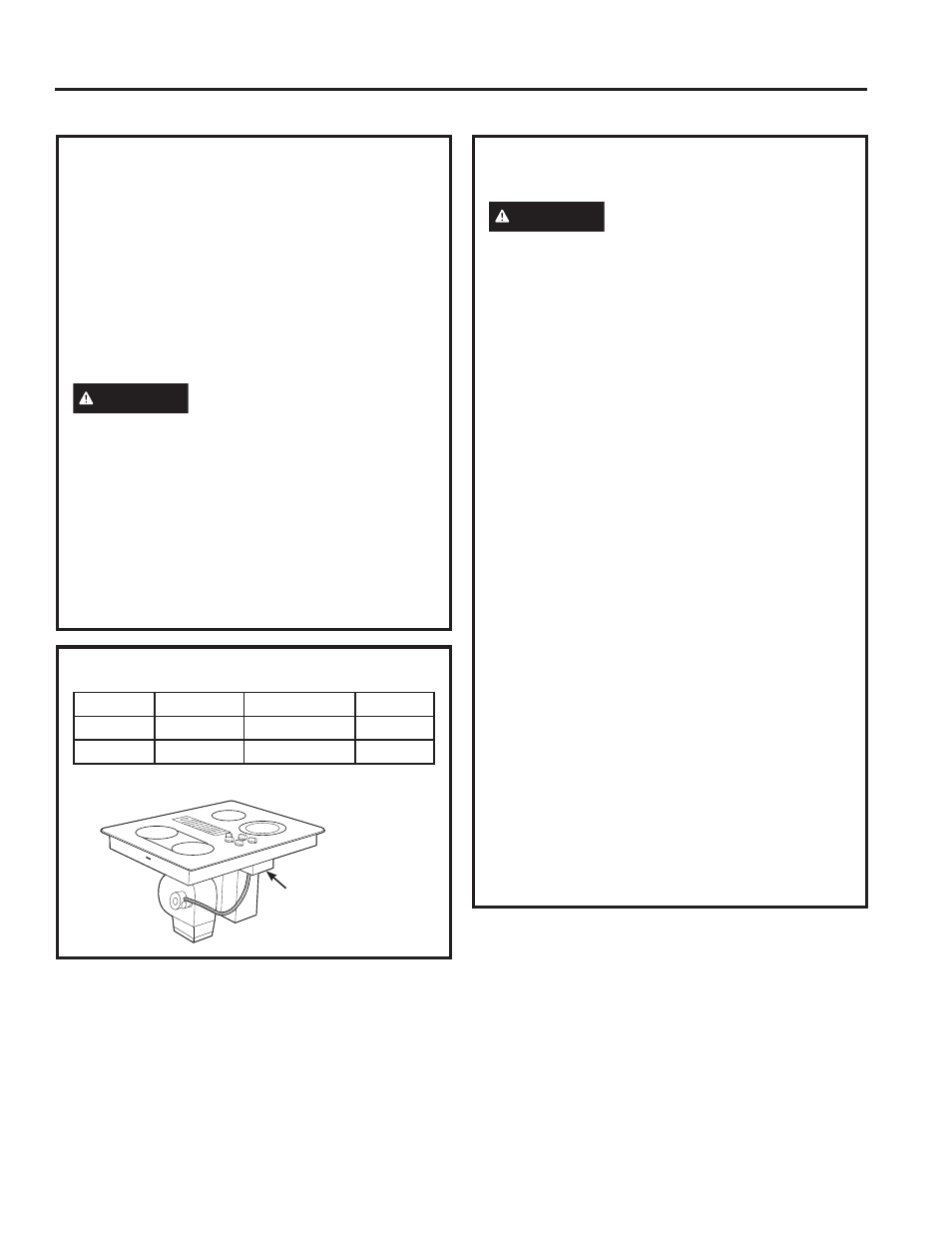

Rating Plate
18. MAKING ELECTRICAL
CONNECTIONS
WARNING
Switch power off at the service
panel and lock the service disconnecting means
to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the
service panel.
A. When making the wire connections, use the
entire length of conduit provided. The conduit
must not be shortened.
%:LWKWKHFRRNWRSLQSODFHRSHQWKHIURQWRIWKH
cabinet door.
C. Insert the wires from the conduit through the
opening of the junction box. Install proper strain
relief clamp.
Effective January 1, 1996, the National Electrical
Code requires that new, but not existing,
construction utilize a four-conductor connection to
an electric range. When installing an electric range
in new construction, follow the instructions in NEW
&216758&7,21$1')285&21'8&725
%5$1&+&,5&8,7&211(&7,21
You must use a three-wire, single-phase AC
208Y/120 Volt or 240/120 Volt, 60 Hertz electrical
system with separate ground. If you connect to
aluminum wiring, properly installed connectors
approved for use with aluminum wiring must be
used.
New construction and four-conductor branch
circuit connection
• When installing in new construction, or
• When installing in a mobile home, or
• When local codes do not permit grounding through
neutral:
