Installation Instructions
INSTALLATION PREPARATION (Cont.)
7. PREPARE FOR DUCTWORK
'HWHUPLQHWKHEHVWURXWHIRUGXFWZRUNLWFDQEHURXWHG
in a variety of ways depending on the kitchen layout.
IMPORTANT: The downdraft air discharge outlet
IRUWKLVXQLWLV»´[´UHFWDQJXODU3ODQGXFWLQJ
accordingly.

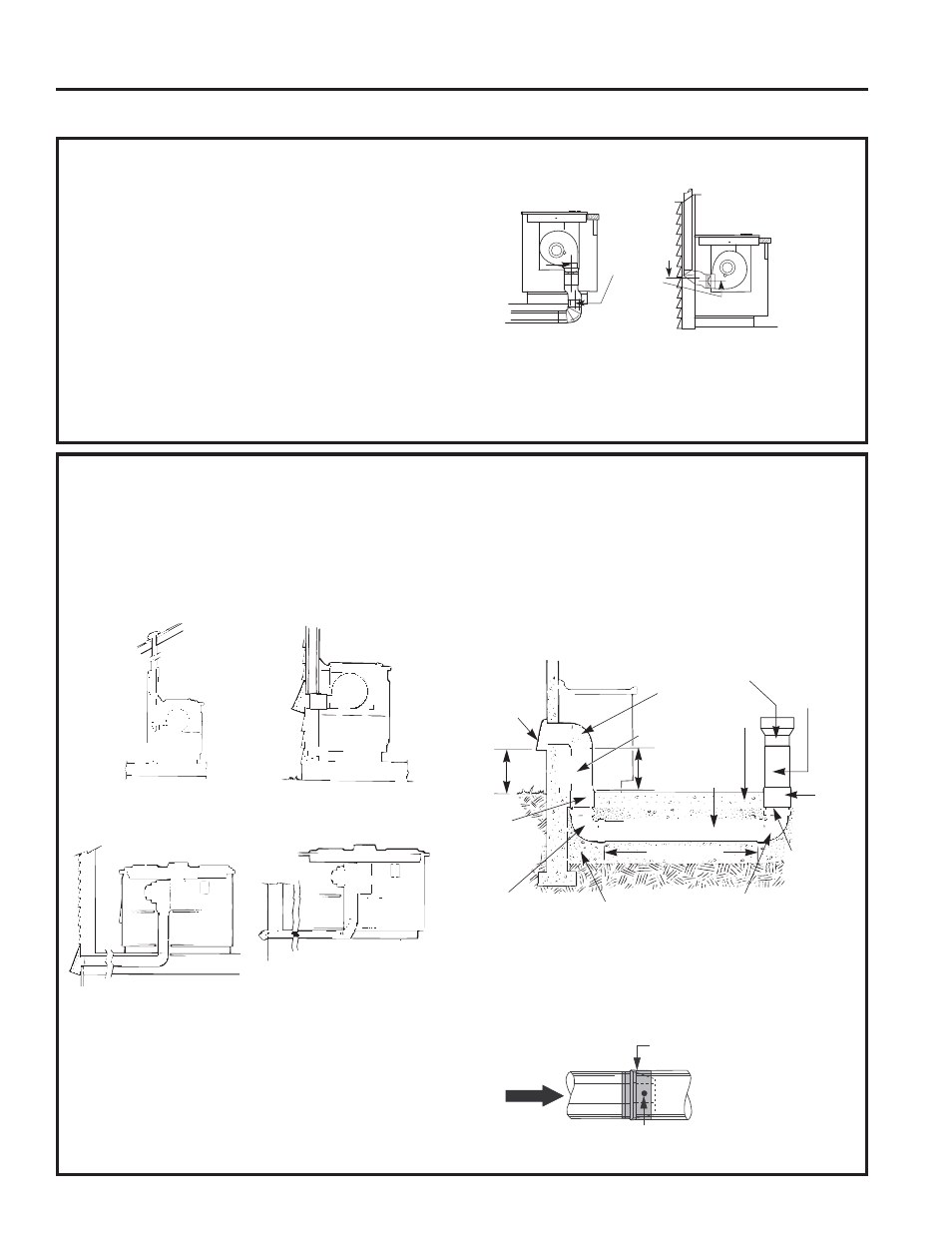

Typical duct arrangement countertop series.
To maximize the ventilation performance of the vent
system:
1. Minimize the duct run length and number of
transitions and elbows.
2. Maintain a constant duct size.
3. Seal all joints with duct tape to prevent any leaks.
'RQRWXVHDQ\W\SHRIIOH[LEOHGXFWLQJ
If needed, install any make up (replacement) air
system in accordance with local building code
requirements. Visit
GEAppliances.com for available
makeup air solutions.
• Optional duct arrangement under concrete slab.
PVC duct should be used if installing under a poured
concrete slab.
• Install ductwork so the piece of duct nearest the
downdraft unit slots INTO the next piece of the duct.
Secure the joints with self-tapping screws and apply
duct tape around the joints to ensure an airtight seal.
Inside wall
cabinet
8SLQVLGHZDOOWRURRIRU
overhang
'LUHFWO\WRRXWVLGH
%HWZHHQIORRUMRLVWV Through cabinet toe space
Peninsula or island
Peninsula
Outside
wall cabinet
NOTE: PVC sewer pipe type PSM 12454-B
Schedule 40 ASTM D1785.
Wall Cap Concrete
Slab
6 ″ (15 cm)
Dia. PVC
Sewer Pipe
6 ″ (15 cm)
Dia. Metal
Duct
Pack tightly with gravel
or sand completely
around pipe
3-1/4 ″ x 10 ″ Rectangular
to 6 ″ Round Transition
6 ″ (15 cm)
Dia. 90 °
Metal Elbow
6 ″ (15 cm) Dia.
Metal Duct
16 ″
(40.6 cm)
Max.
12 ″
(30 cm)
Min.
6 ″
(15 cm)
Dia. PVC
Coupling
6 ″ (15 cm) Dia.
PVC Sewer Pipe
Elbow
6 ″ (15 cm) Dia.
PVC Sewer Pipe
Elbow
6 ″ (15 cm)
Dia. PVC
Sewer
Pipe
6 ″
(15 cm)
Dia.
PVC
Coupling
30 ′ -0 ″ (9.14 m) Max.
Duct Tape
Over Seam and Screw
Screw
Air
Flow
6. BLOWER TO DUCTWORK ALIGNMENT
In general, the use of flexible ducting is discouraged
because it can cause severely restricted airflow.
However, if the blower outlet and the floor or wall
duct location do NOT align well, then flexible
METAL ducting can be used to adapt to an offset.
Good alignment without use of flexible ducting is best.
NOTE:
• 'RQRWH[FHHGWKHPD[LPXPUHFRPPHQGHGRIIVHWRI´
‡'RQRWDOORZWKHIOH[LEOHGXFWLQJWRNLQNRUFROODSVH
‡'RVWUHWFKWKHIOH[LEOHGXFWLQJDVPXFKDVSRVVLEOH
to eliminate as much of the corrugation as possible.
$»´[´UHFWDQJOHWR´URXQGWUDQVLWLRQGXFWLV
available at your local building supply store.
NOTE: Illustrations are for planning purposes only.
6" Max.
Centerline
to
Centerline
Offset
%DFN9HQWLQJ
(Requires 3 1 »
4
” x 10")
%RWWRP9HQWLQJ
