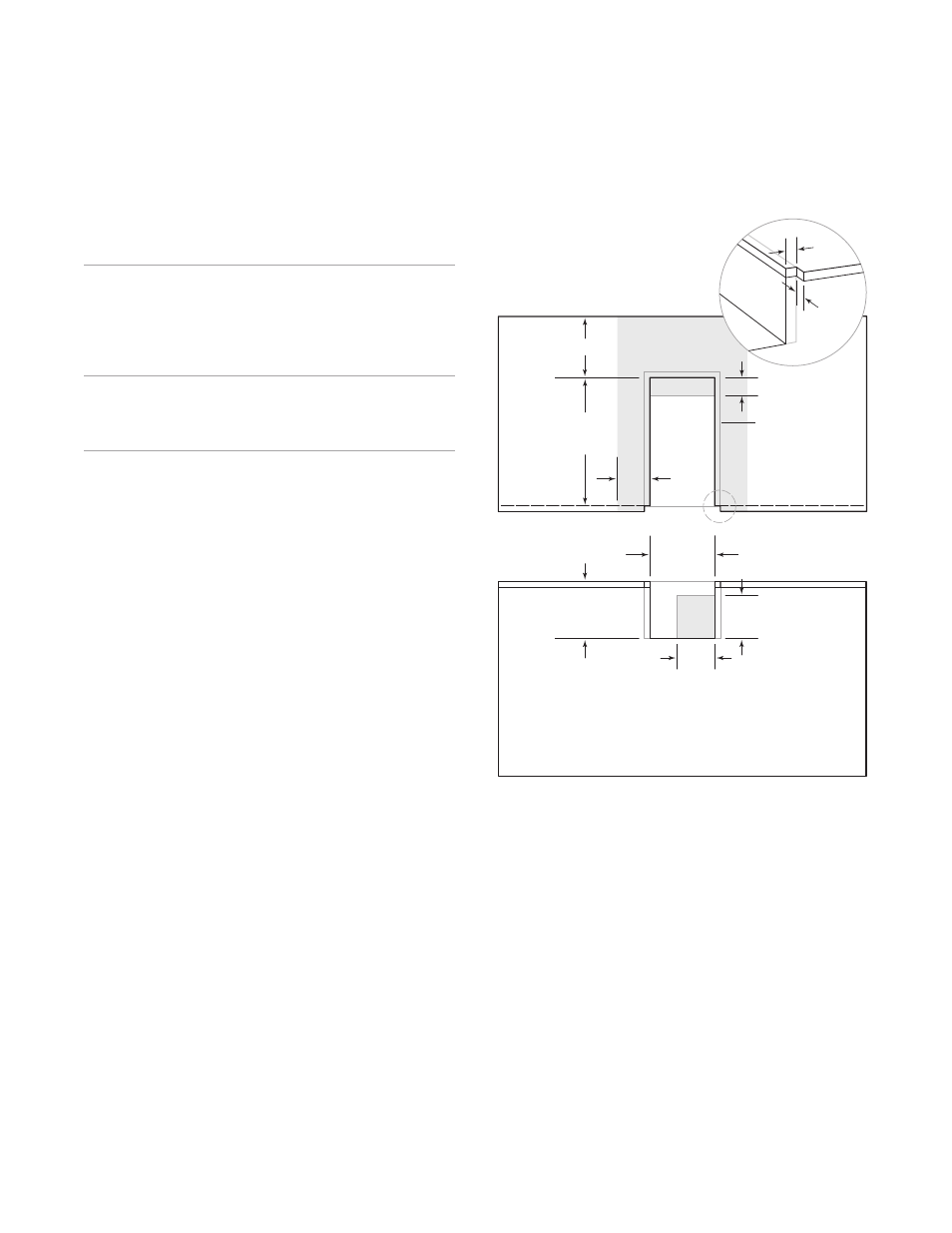

SPECIFICATIONS
10"
(254)
OPENING
HEIGHT
24
1
/
4
"
(616)
OPENING
DEPTH
6"
(152)
MODULE
OPENING
9
/
16
"
(14)
COUNTERTOP
OVERHANG
MODULE
OVERLAP
FRONT VIEW
TOP VIEW
12"
(305)
OPENING
NOTE: Shaded area above countertop indicates minimum clearance to
combustible surfaces, combustible materials cannot be located within this area.
An insulating liner is not required.
G
8"
(203)
7"
(178)
G
3"
(76)
12"
(305)
Burner Module
INSTALLATION
Outdoor Grills
ACCESSORY DOORS | DRAWERS
OPENING
DOORS
W
H
18" Single
16
1
/
4
"
(413)
19"
(483)
30" Double
28
1
/
4
"
(718)
19"
(483)
36" Double
34
1
/
4
"
(870)
19"
(483)
42" Double
40
1
/
4
"
(1022)
19"
(483)
54" Double
52
1
/
4
"
(1327)
19"
(483)
DRAWERS
W
H
Single Drawer
27
1
/
4
"
(692)
9
3
/
4
"
(248)
2- or 3-Drawer Unit
12
1
/
8
"
(308)
19"
(483)
Drawer | Door Unit
29
1
/
4
"
(743)
19"
(483)
