14 | Wolf Customer Care 800.222.7820
Side Burner Installation
For natural gas installations, the gas line connection must
be made before installing the side burner.
INSTALL SIDE BURNER
1 Place side burner into shroud as shown in the illustration
below. Guide flexible gas line and wire harness into cart
access hole. Verify alignment of unit prior to securing
side burner to shroud. If side burner does not align prop-
erly, remove, loosen screws and check shroud alignment
with tool. Reposition side burner until properly aligned.
2 Place a bar clamp with protected ends behind bullnose
on fire box and under shroud. Do not include any part
of bullnose within bar clamp. Refer to the illustration
below.
3 Compress bar clamp until hole in bullnose aligns with
threaded hole in shroud. Alignment and placement of
this screw is very important to side burner alignment.
Refer to the illustration below.
4 Attach side burner to shroud by first placing 8-32 hex
cap screw provided into right side of front underside of
bullnose and into shroud. Then, place left side hex cap
screw. Tighten screws and remove bar clamp.
5 At rear of unit, push side burner toward grill to establish
proper gap at rear. Loosen rear cart screws and shift
grill if necessary to achieve proper gap. Install two 8-18
pan head screws provided through shroud and into rear
of side burner as shown in the illustration below. Verify
proper alignment.

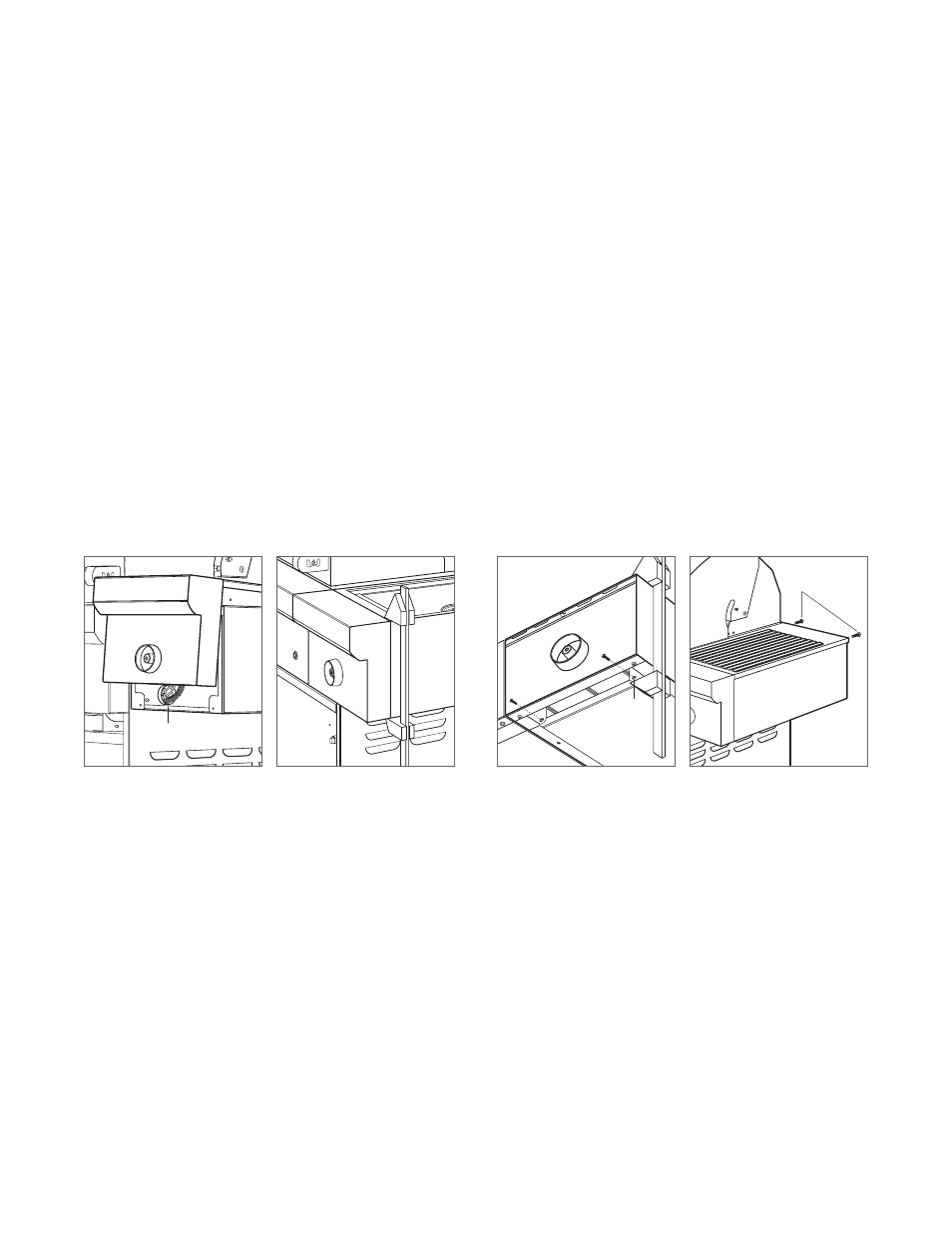

INSTALLATION
ACCESS HOLE
Position side burner.
Position bar clamp.
HOLES
ALIGN
REAR
SCREWS
Hole alignment.
Secure side burner.
