Viewing CSMACD Statistics
The CSCMACD Statistics Windows display statistics for each bridging interface
on your FN100. Receive errors, transmission errors, and collision errors are
displayed in this window.
Three color-coded pie charts allow you to view the breakdowns of each statistics
group.
To access the CSMACD Statistics window from the Chassis View window:
1.
Click on the desired port to reveal the Port menu.
2.
Choose CSMACD Stats.... The following window will appear (
).

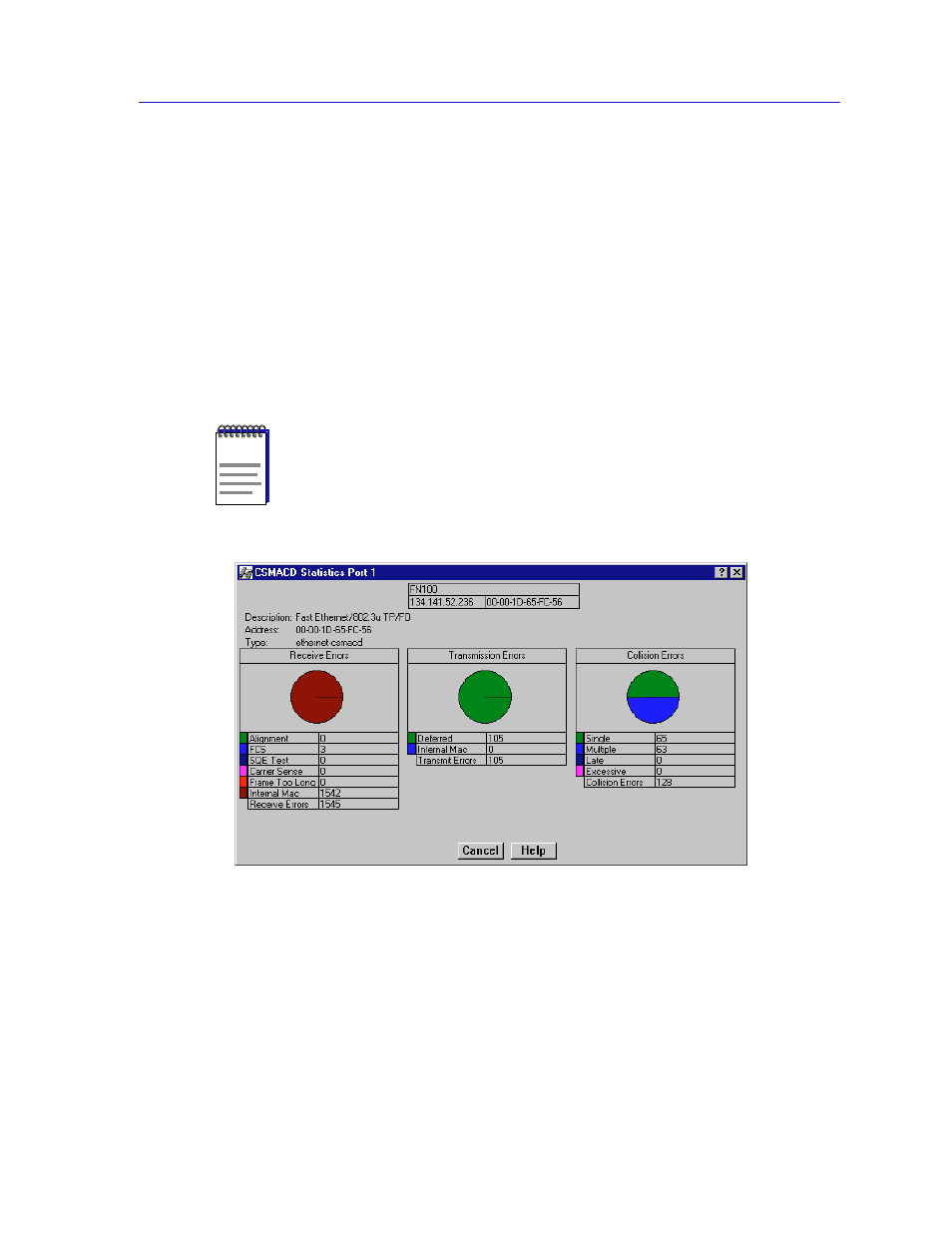

Figure 2-9. CSMACD Statistics Window
Each of the receive, transmission, and collision errors is described below.
Receive Errors
Alignment
The number of frames received on a particular interface that contain a non-
integral number of bytes (color-coded green). Misaligned packets can result from
NOTE
The CSMACD Statistics window can also be accessed from the Bridge Status window.
See the bridging chapter in the Tools Guide for more information.
