Page 33
780i 3-Way SLI Motherboard
EVGA
22
Audio
The audio connector supports HD audio standard and provides two kinds of
audio output choices: the Front Audio, the Rear Audio. The front Audio
supports re-tasking function.

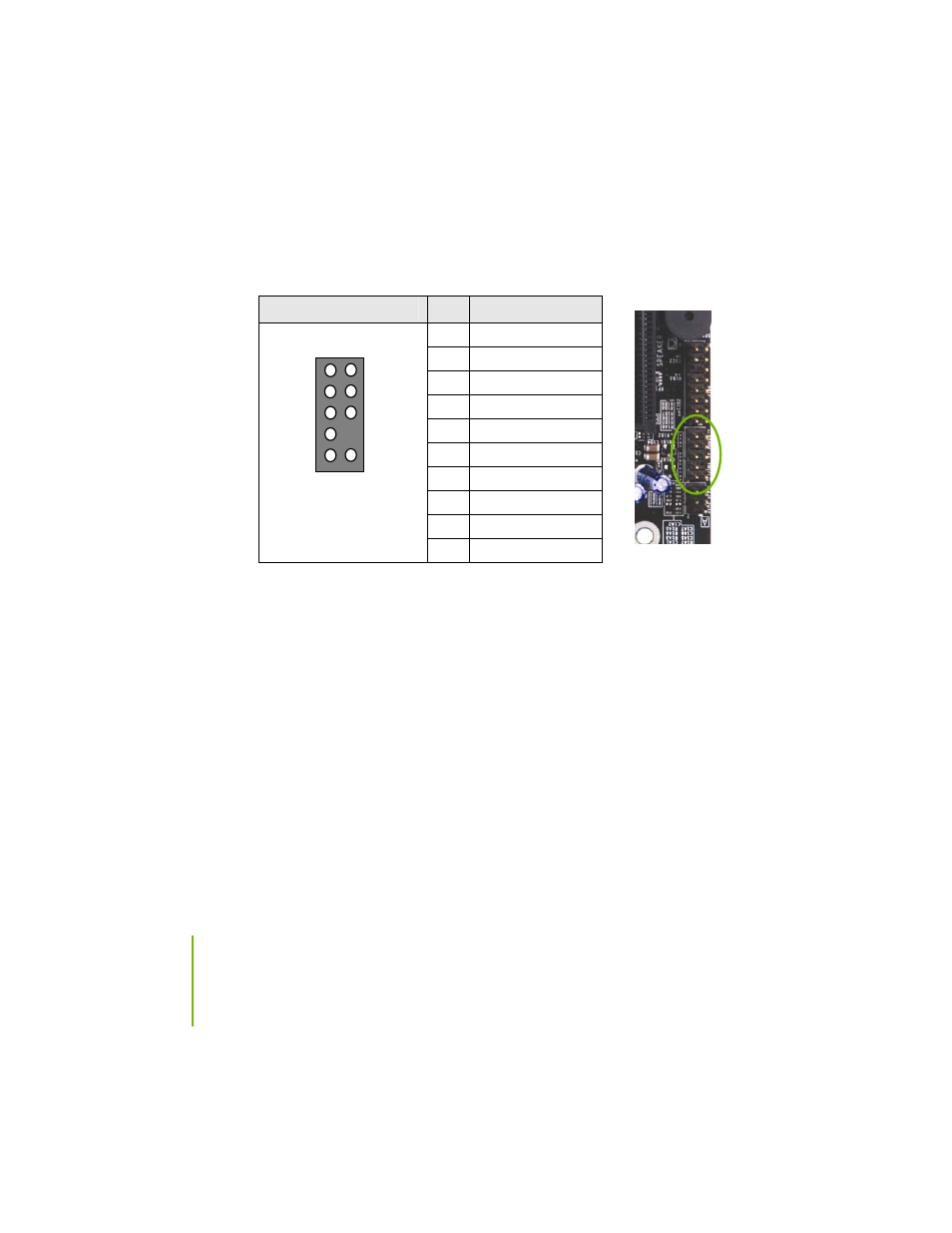

Table 5.
Front Audio Connector
Connector
Pin Signal
1 PORT1_L
2 AUD_GND
3 PORT1_R
4 PRECENCE_J
5 PORT2_R
6 SENSE1_RETURN
7 SENSE_SEND
8 Empty
9 PORT2_L
Front Audio Connector
10 SENSE2_RETURN
2
4
6
8
10
1
3
5
7
9
