Power Connections

To support 3-way SLI, this motherboard has the following specific power
supply requirements:

Minimum 1000 W peak power

Six PCI-E power connectors configured in either of the following
configurations (see Figure 3):

Four 6-pin (3x2) and two 8-pin (4x2) PCI-E power connectors
or

Six 6-pin (3x2) PCI-E power connectors

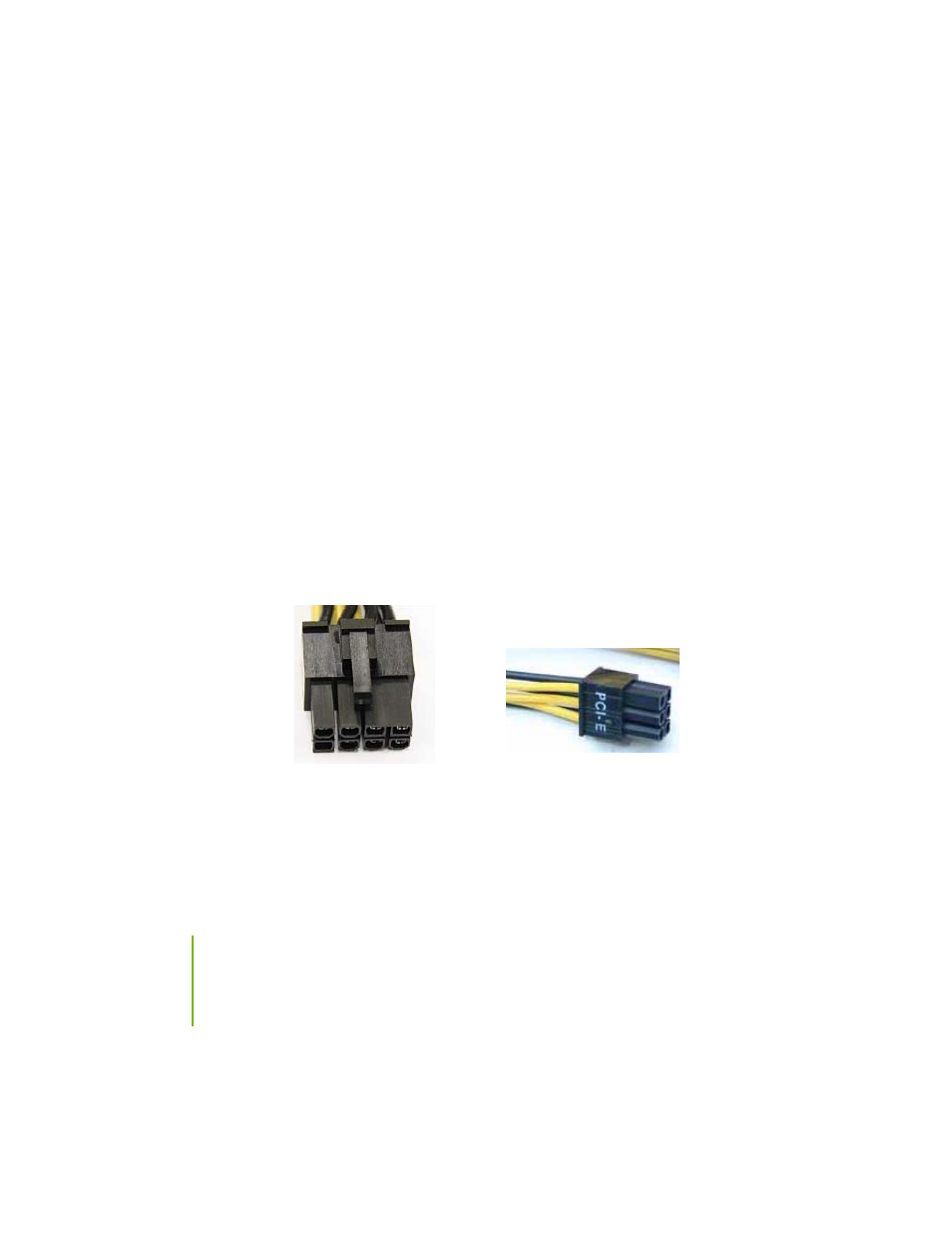

8-pin (4x2) PCT-E Connector 6-pin (3x2) PCI-E connector

Figure 3.

Power Supply Connectors
