780i 3-Way SLI Motherboard

EVGA

20

Table 2.

Front Panel Header Pins

Pin Signal

In/Out Description

1

HD_PWR

Out

Hard disk LED pull-up to +5V

HD_LED

3

HDA#

Out

Hard disk active LED

2

HDR_BLNK_GRN Out

Front panel green light

PWRLED

4

HDR_BLNK_YEL

Out

Front panel yellow light

5 GND

Ground

RESET

7 FP_RESET#

In

Reset

switch

6 SWITCH_ON# In

Power

switch

PWRSW

8 GND

Ground

No Connect 9 No

Connect

Empty

10 Empty

IEEE 1394a

The IEEE 1394 expansion cable bracket is provided in the box but if you do
not require the additional external connections, you do not need to install it.

1.

Secure the bracket to either the front or rear panel of your chassis (not all
chassis are equipped with the front panel option).

2.

Connect the two ends of the cables to the IEEE 1394 connectors on the
motherboard.

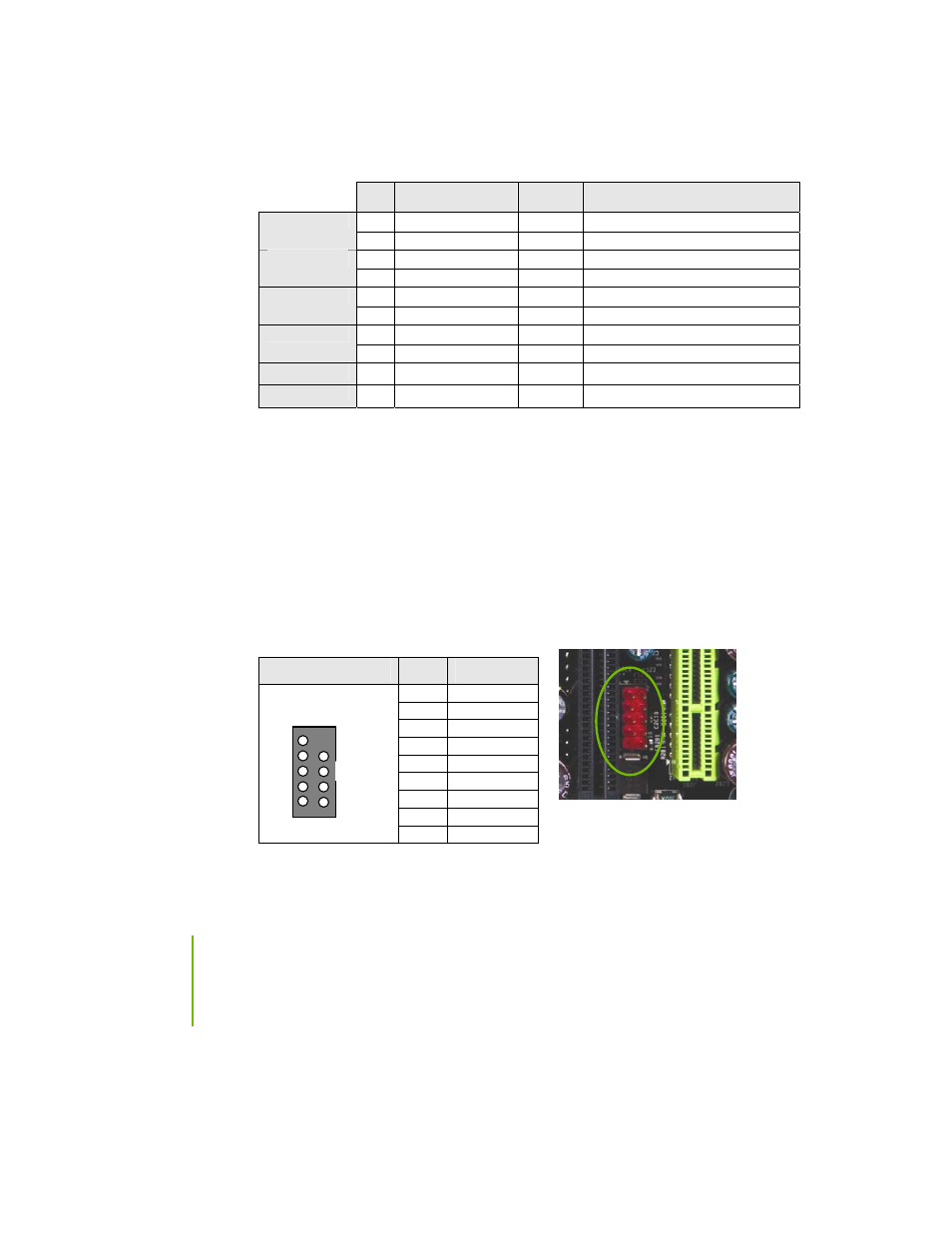

Table 3.

IEEE 1394a Connector Pins

Connector

Pin

Signal

1 TPA+
2 TPA-
3 GND
4 GND
5 TPB+
6 TPB-
7 +12V
8 +12V

IEEE 1394a Connector

10

8
6
4
2

9
7
5
3
1

9 Empty
