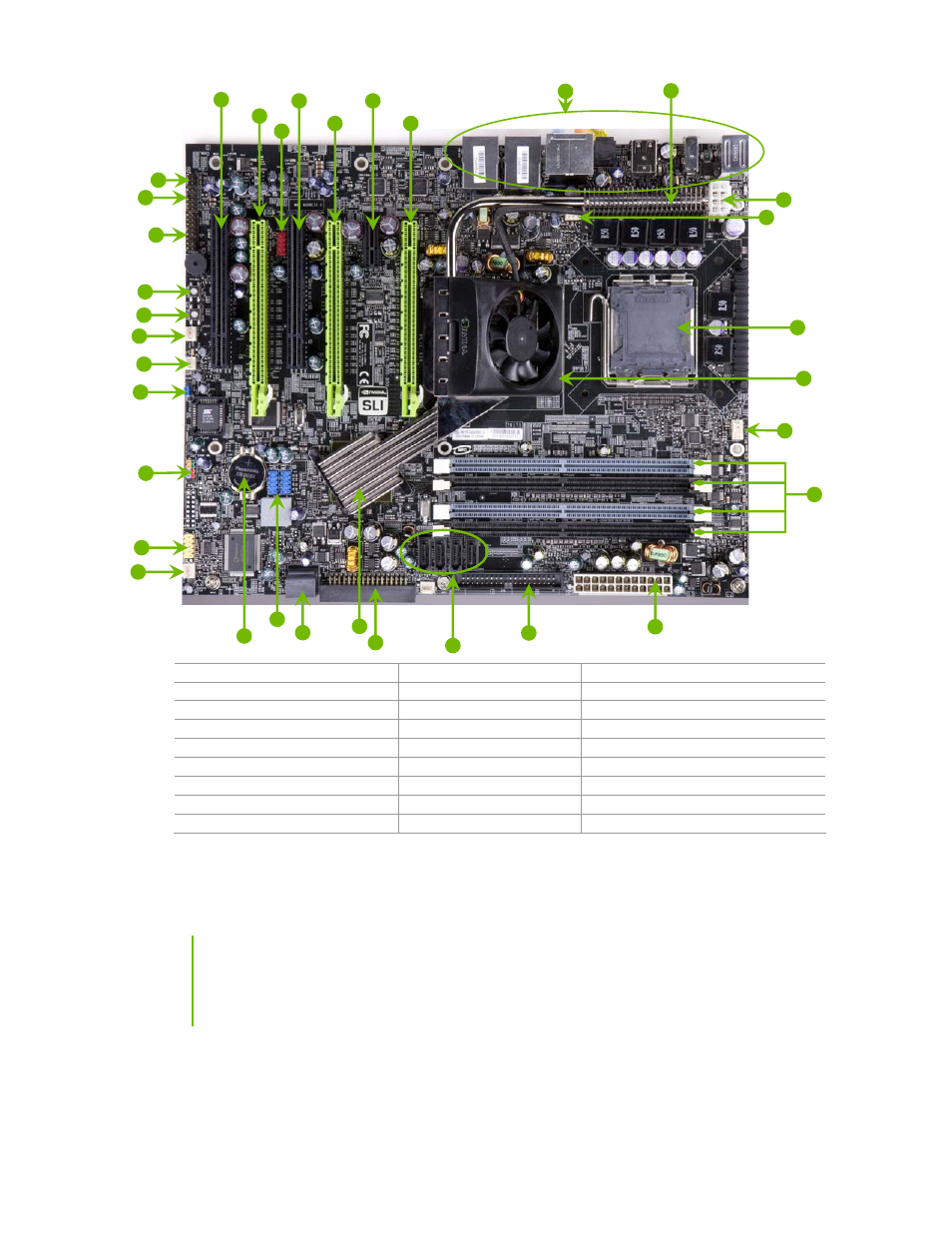

780i 3-Way SLI Motherboard

EVGA

6

1. CPU Socket

11. USB headers

21. SPDIF connector

2. NVIDIA SPP with Active fan

12. Motherboard battery

22. PCI slots

3. CPU fan connector

13. Fan connector

23. PCI Express x16 slots (SLI)

4. DDR DIMM Slots 0 - 3

14. Serial connector

24. 1394a connector

5. 24-pin ATX Power Connector

15. Front panel connector

25. PCI Express x1 slot

6. IDE Connector

16. Jumper

26. Backpanel connectors (Figure 2)

7. Serial-ATA (SATA) connectors

17. Power button

27. Heat dissipater

8. FDD connector

18. Reset Button

28. 8-pin ATX_12V power connector

9. NVIDIA MCP (passive heat sink)

19. Azalia HD Audio Header

29 MCP/SPP fan connector
