26
TASCAM BD-MP4K

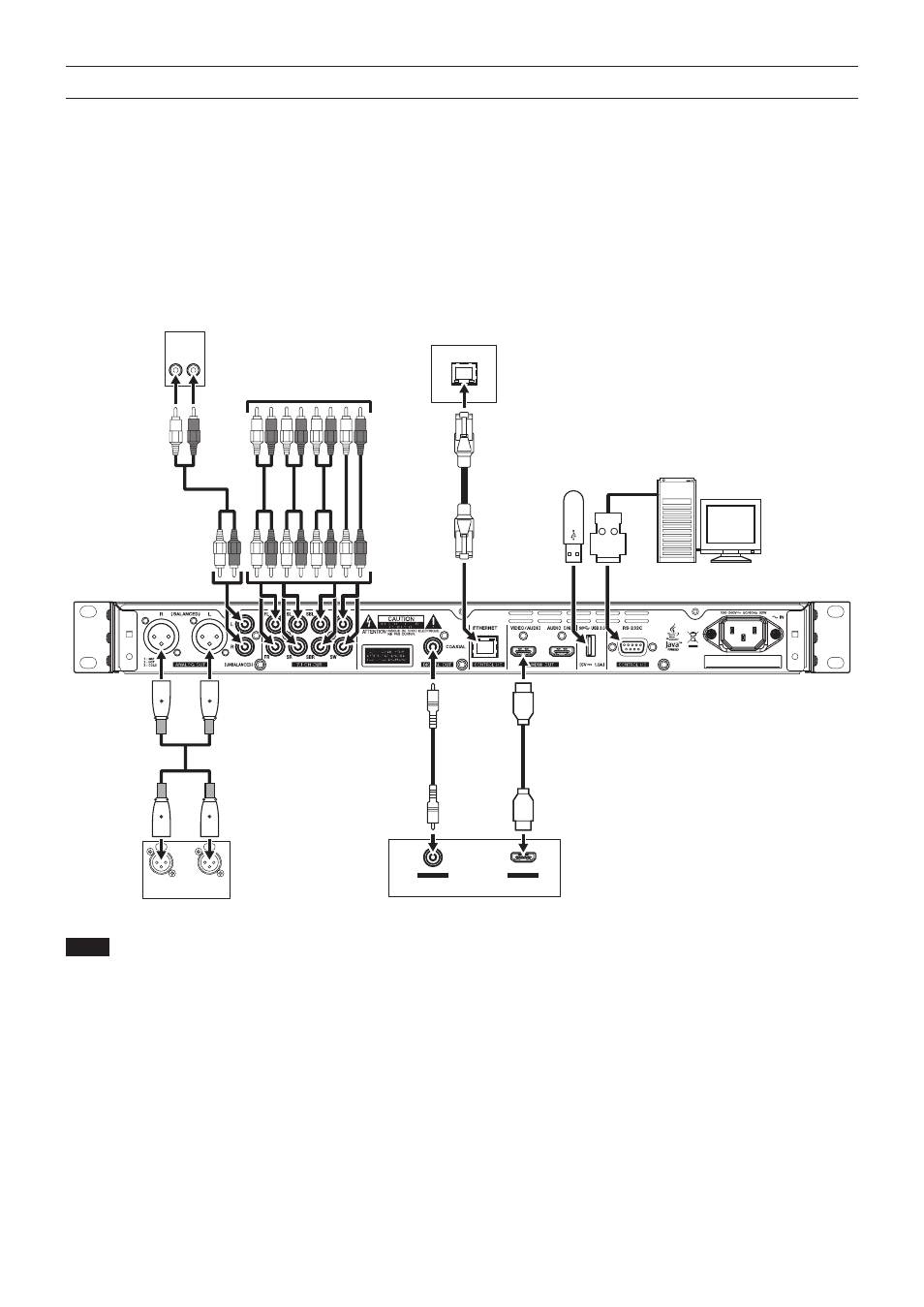

Making connections
This is an example of connections with the unit.
Precautions before making connections
p A monitor must be connected to make settings for this unit.
p Carefully read the operation manuals of the devices to be connected and then connect them correctly.
p Before making connections, turn this unit and all equipment to be connected off (standby).
p Install all connected devices, including this unit, so that they are powered from the same line. When using a power strip or similar
device, be sure to use one that has high current capacity (thick cable) in order to minimize fluctuations in power voltage. Moreover,
do not bundle or wrap power cords.
p Connect cable types correctly. (Be careful not to insert cables into the wrong connectors or with the wrong orientation.)
ANALOG
IN
(UNBALANCED)
L R
DIGITAL IN
ANALOG IN
(BALANCED)
L R
HDMI IN
Mixer, recorder, amp, etc. TV, monitor, etc.
Network router, etc.
Computer
USB flash drive
To 7.1 sound system
Mixer, recorder, amp, etc.
NOTE
i This unit outputs from all its output connectors
simultaneously. (HDMI audio output is limited to one with
HDMI 1.4 prioritized.)
i The HDMI AUDIO ONLY connector does not output video
even if connected to a monitor. If a monitor is connected to
this port, the following message will appear. “This HDMI port
is only for audio. Connect an AV amplifier.”
i When using 4K UHD BD, 2160p 60Hz or other high-definition
video, connect a monitor that supports the resolution using a
premium high-speed HDMI cable that supports 18 Gbps.
i When using 2160p 30Hz or 3D video, connect a monitor that
supports the resolution using a high-speed HDMI cable or a
premium high-speed HDMI cable.
i When the HDMI VIDEO/AUDIO connector is connected to
an AV amp that does not support HDMI 2.0, 4K output is not
possible even if a monitor is connected to a through output
of the AV amplifier.
