12
TASCAM MZ-123BT
Preparation

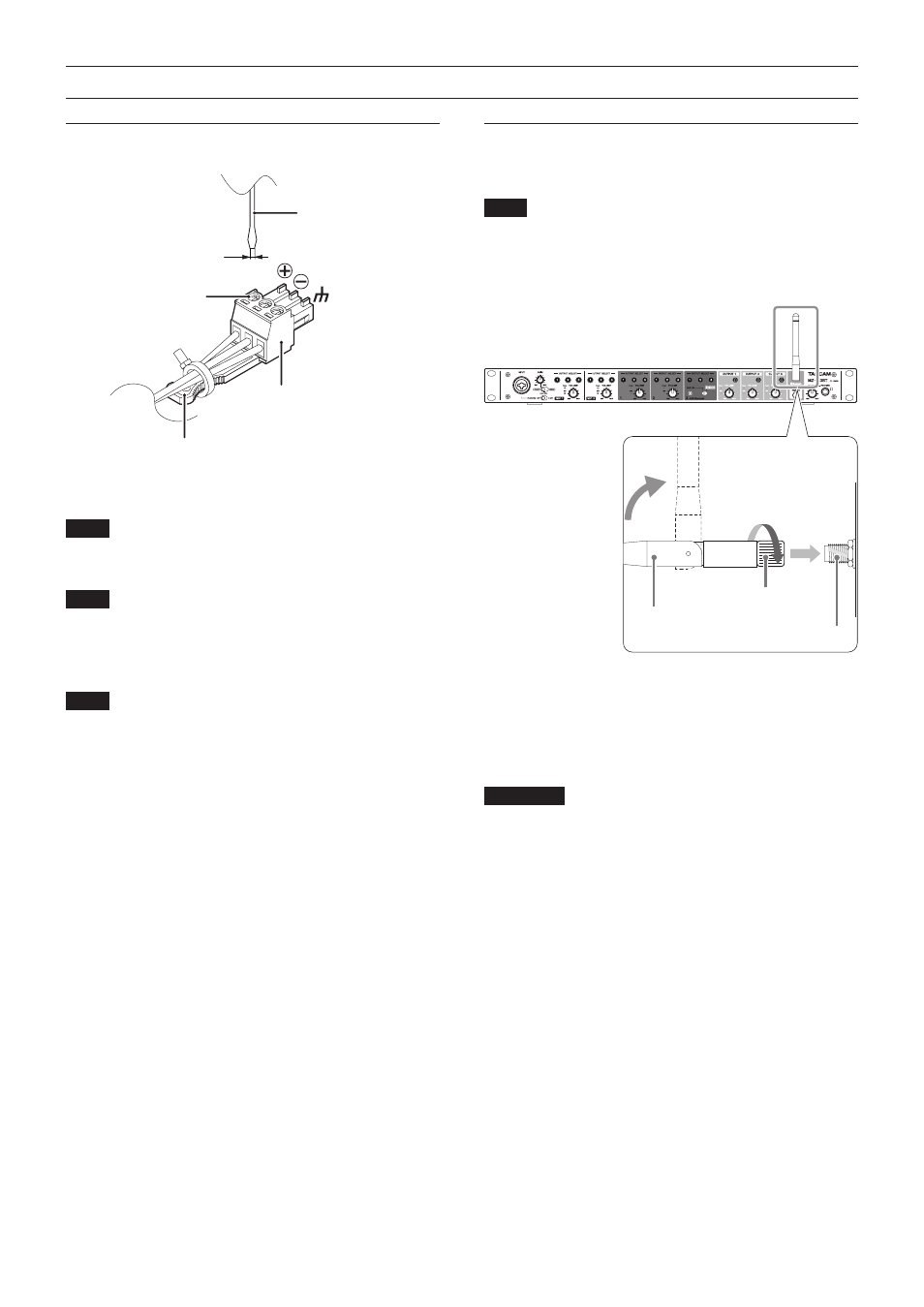

Connecting Euroblock plugs
Euroblock plug
Euroblock plug tab
Flat-blade screwdriver
Terminal screw
2.5 mm or less
1. Loosen the Euroblock plug terminal screws.
NOTE
Use a flat-blade screwdriver with a width of 2.5mm or less.
2. Insert wires.
NOTE
AWG16-AWG28 wires are compatible with the included
Euroblock plugs. Using wires within the compatible range,
trim about 7 mm of the protective sheaths from their ends.
3. Tighten the Euroblock plug terminal screws.
NOTE
Confirm that the wires cannot be pulled out.
4. Use an included wire band to attach the wires to the
Euroblock plug tab.
Attaching the Bluetooth antenna
Before connecting to a Bluetooth device, follow these
procedures to attach the included Bluetooth antenna.
NOTE
When this unit is shipped new, a cap is attached to the
Bluetooth antenna connector. Remove the cap before
attaching the Bluetooth antenna.
Nut
Bluetooth antenna connector
Bluetooth antenna
1. Attach the included Bluetooth antenna to the Bluetooth
antenna connector.
2. Turn the Bluetooth antenna nut to secure it to the antenna
connector.
3. Raise the Bluetooth antenna.
ATTENTION
i Use the included antenna, which was designed for use with
the MZ-123BT.
i Be careful to bend the antenna in the correct direction.
i Do not forcefully bend the antenna.
