TASCAM MZ-123BT

11

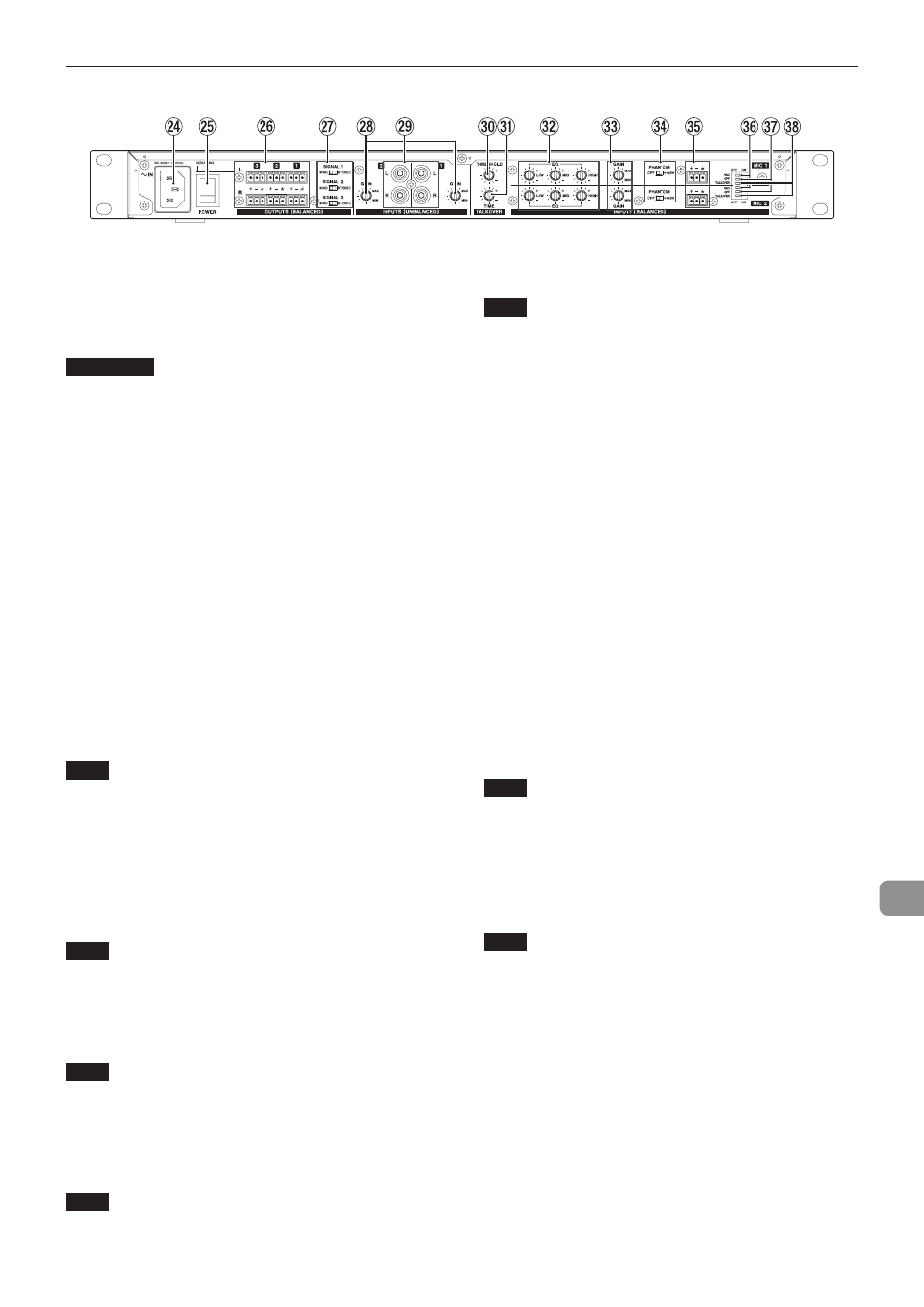

Rear panel

f

AC IN connector

Connect the included power cord here.

g

POWER switch

Press to turn the unit on and off.
When on, the POWER (

7

) indicator lights on the front of the

unit.

V

CAUTION

Before turning the unit on, lower the volumes of connected

equipment to their minimum levels.
Failure to do so might cause sudden loud noises, which could

harm your hearing or result in other trouble.

h

Analog output connectors

These are balanced Euroblock analog output connectors.
(HOT, COLD, GND from the left)
Mono signals will be output if MONO - STEREO (

j

) switches

are set to MONO.

j

MONO - STEREO switches

Set whether the signals output from the analog output jacks

(

h

) are stereo or mono.

Set it to STEREO for stereo output or MONO for mono output.
During mono output, the same signal is output on both left

and right channels. Stereo input sources will be mixed to

mono signals and output.
Output channels that are set to MONO will be mono when

monitored with headphones.
These are set to MONO when shipped new from the factory.

k

Line input GAIN knobs

Use to adjust the levels of the line input jacks (

l

).

NOTE

Use a small flathead screwdriver to adjust these.

l

Line input jacks

These RCA pin jacks are analog line inputs.
Use RCA cables to connect CD players and similar devices to

these jacks.

;

TALKOVER THRESHOLD knob

Set the input sensitivity (threshold level) for the talkover

function. (See “Using the talkover function” on page 16)

NOTE

This cannot be set separately for mic input channels 1-2.

z

TALKOVER TIME knob

Use this to set the time until the talkover function deactivates

(release time). (See “Using the talkover function” on page

16)

NOTE

This cannot be set separately for mic input channels 1-2.

x

Mic input EQ knobs

This is a 3-band equalizer (HIGH/MID/LOW) for the mic input

sound.

Setting range: ±15 dB

NOTE

Use a small flathead screwdriver to adjust these.

c

Mic input GAIN knobs

Use to adjust the input levels of the mic input connectors (

b

,

Euroblock).

NOTE

Use a small flathead screwdriver to adjust these.

v

Mic input connector PHANTOM switches

Use these switches to supply +48V phantom power to the

mic input connectors (

b

, Euroblock).

The PHANTOM switches for the mic input connectors provide

+48V phantom power. (See “Connecting microphones” on

page 14)
These are set to OFF when shipped new from the factory.

b

Mic input connectors

These are balanced Euroblock mic input connectors. (HOT,

COLD, GND from the left)
Use the mic input GAIN knobs (

c

) to set the input levels.

To send mic input from the mic input connectors (

b

) to

mic input channel 1, set the front mic input channel 1 input

source switch (

8

) to REAR.

n

PAD switches

Use to switch the input levels of the mic input jacks (

b

,

Euroblock). (24dB attenuation)
Set to ON if a connected mic input level is high.
This can be set for each input channel independently.
These are set to OFF when shipped new from the factory.

m

HPF switches

Setting these switches to ON enables high pass filters that

cut noise and other sounds at low frequencies.
These are set to OFF when shipped new from the factory.

NOTE

When the MIC1 HPF switch is turned ON/OFF, the high pass

filter affects not only the rear mic input connectors (

b

,

Euroblock) but also the front INPUT jack (

1

).

,

TALKOVER switches

These turn the talkover function on/off. (See “Using the

talkover function” on page 16)
These are set to OFF when shipped new from the factory.

NOTE

When the MIC1 TALKOVER switch is turned ON/OFF,

the talkover function affects not only the rear mic input

connectors (

b

, Euroblock) but also the front INPUT jack (

1

).
