RGB 201 Rxi Universal Interface • Introduction
Introduction, cont’d Introduction
About this Manual
This manual contains information about the Extron RGB 201 Rxi
universal interface and on how to operate and configure it.
About the RGB 201 Rxi
The RGB 201 Rxi (figure 1-1) is an analog computer-video
interface with 300 MHz (-3dB) video bandwidth, Advanced
Digital Sync Processing (ADSP ™ ), and Digital Sync Validation
Processing (DSVP ™ ). It accepts a computer-video input and
an unbalanced computer stereo audio input. It features a local
monitor output, an RGBHV, RGBS, RGsB, or RsGsBs output and
a balanced, line level stereo audio output. The interface features
horizontal and vertical centering and level boost and peaking.
RS-232 Control
System or
Computer
PC
Projector
Stereo Audio
AUD IO
REM OTE
100- 240 0
.2A
50/60 Hz
OU TPU TS
INPU T
R
H
G
V
B
S
BU FFE RED
MO NIT OR
DDSP SOG SERR V SYNC WIDTH MONITOR FOLLOW
S
MONO AUDIO LEFT SPARE NO BACK LIGHT
Extron
RGB 201Rxi
Interface
Hi C aro l
Hi C aro l

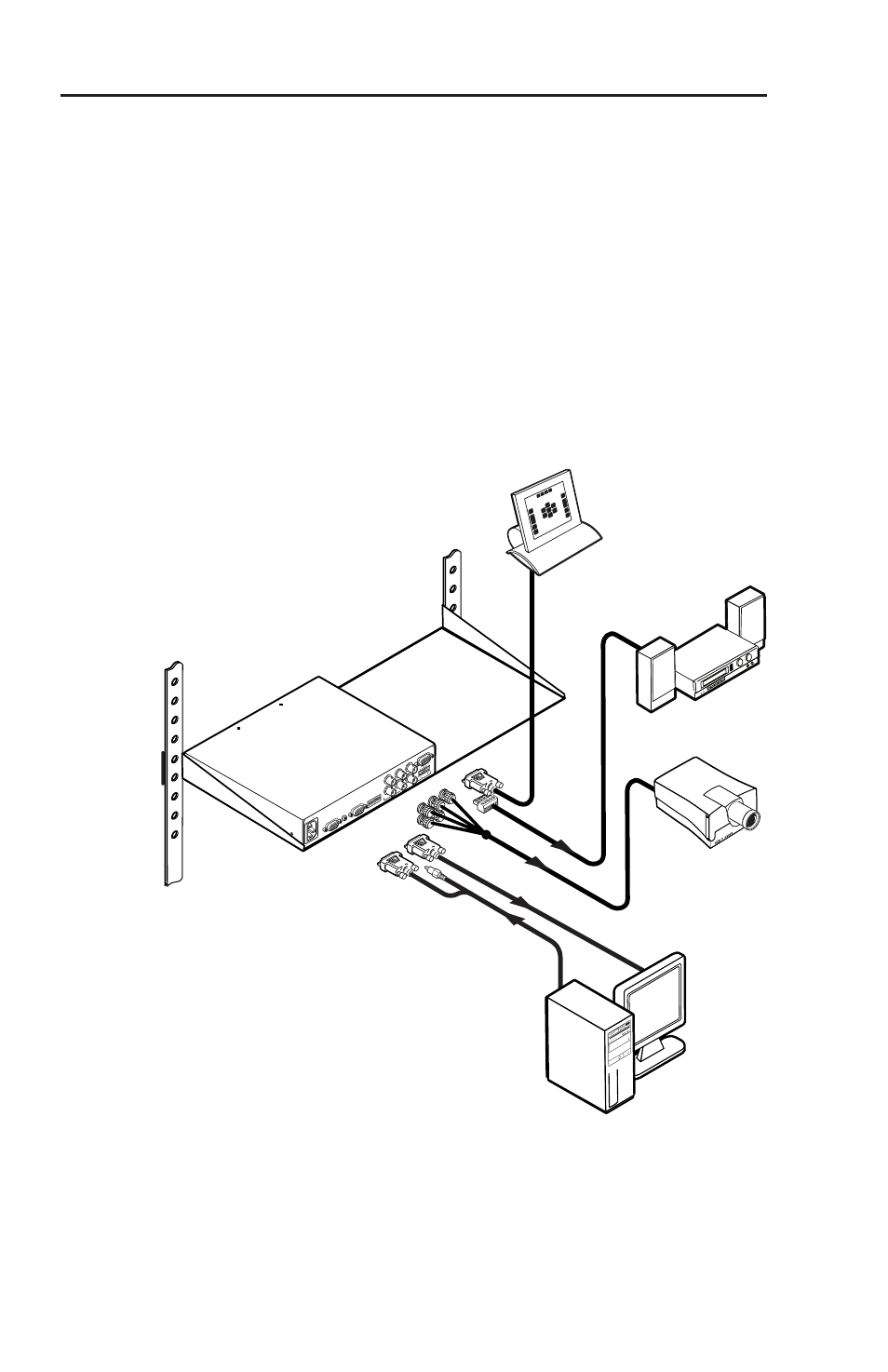

Figure 1-1 — Typical RGB 201 Rxi application
Front panel controls, an RS-232 remote control system, or a PC
computer can be used to shift the output image horizontally and
vertically.
1-2
