For product protection and safety
reasons, Sony strongly recommends that
installation of your LCD Display on the
wall be performed by qualified
professionals. Do not attempt to install it
yourself.
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this LCD Display, especially to
determine the strength of the wall for
withstanding the LCD Display’s weight.
• The screws for Wall-Mount Bracket are
not supplied.
• The length of the screw for Wall-Mount
Bracket differs depending on the
Wall-Mount Bracket thickness. Please
refer to below illustration.
• Refer to the following table for
wall-mount hole pattern.
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
Note
• Read the supplied Safety Booklet for additional
safety information.
• For more detailed information, visit Sony
Customer Support website.*
* Only on limited region/country/LCD Display
model.

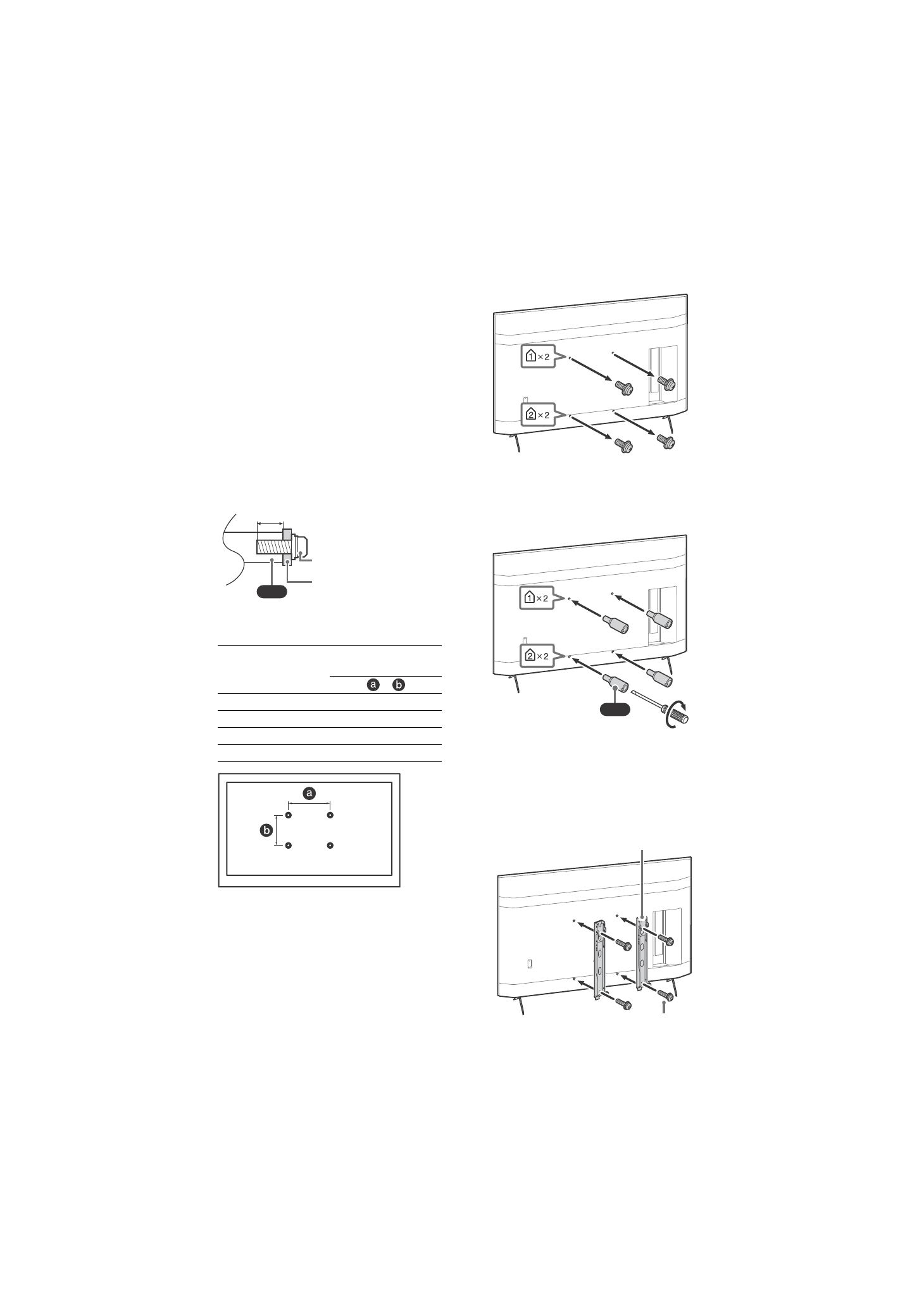

1
Remove the screws from the rear of
the LCD Display.
2
Attach the Wall-Mount Attachment
(supplied with the LCD Display) to
the rear of the LCD Display (to make
it parallel with the wall).
3
Attach the Wall-Mount Bracket (not
supplied) using the screws (not
supplied).
Model Name
Wall-mount hole
pattern
×
FW-85BZ40H 400 × 400 mm
FW-75BZ40H 300 × 300 mm
FW-65BZ40H 300 × 300 mm
FW-55BZ40H 300 × 300 mm
VS
10 mm – 12 mm
Screw (M6)
Wall-Mount Bracket
VS
1.5 N·m
{15 kgf·cm}
Wall-Mount Bracket
(not supplied)
Screw
(not supplied)
