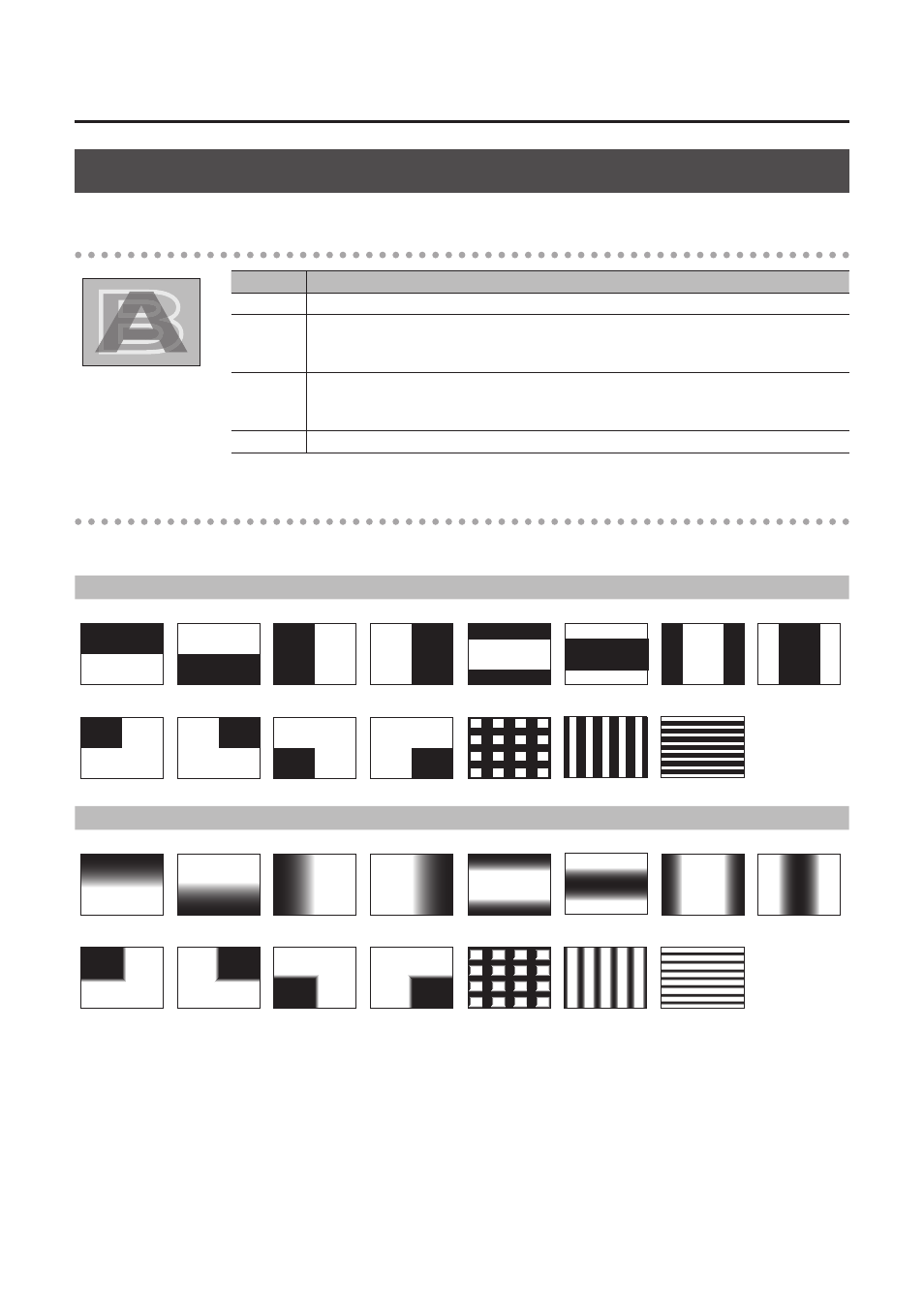

Transition Effects List
MIX
Effect Explanation
MIX The two pictures are blended together as the video is switched.
FAM
Video transitions are made with the luminance levels of the two video streams maintained
unchanged.
* This is an abbreviation of “full additive mix.”
NAM
The two video streams are compared, and transitions are made with display during
transition starting with levels of high luminance.
* This is an abbreviation of “non-additive mix.”
MOSAIC Transitions are made with mosaic pixelation.
WIPE
The original video is broken into by the next video.
Normal
H-DOWN H-UP V-RIGHT V-LEFT H-IN H-OUT V-IN V-OUT
R-DOWN L-DOWN R-UP L-UP BLOCK V-GRID H-GRID
Soft Edge
H-DOWN/s H-UP/s V-RIGHT/s V-LEFT/s H-IN/s H-OUT/s V-IN/s V-OUT/s
R-DOWN/s L-DOWN/s R-UP/s L-UP/s BLOCK/s V-GRID/s H-GRID/s
