EVGA nForce 122-CK-NF68-XX - Manual (Page 62)

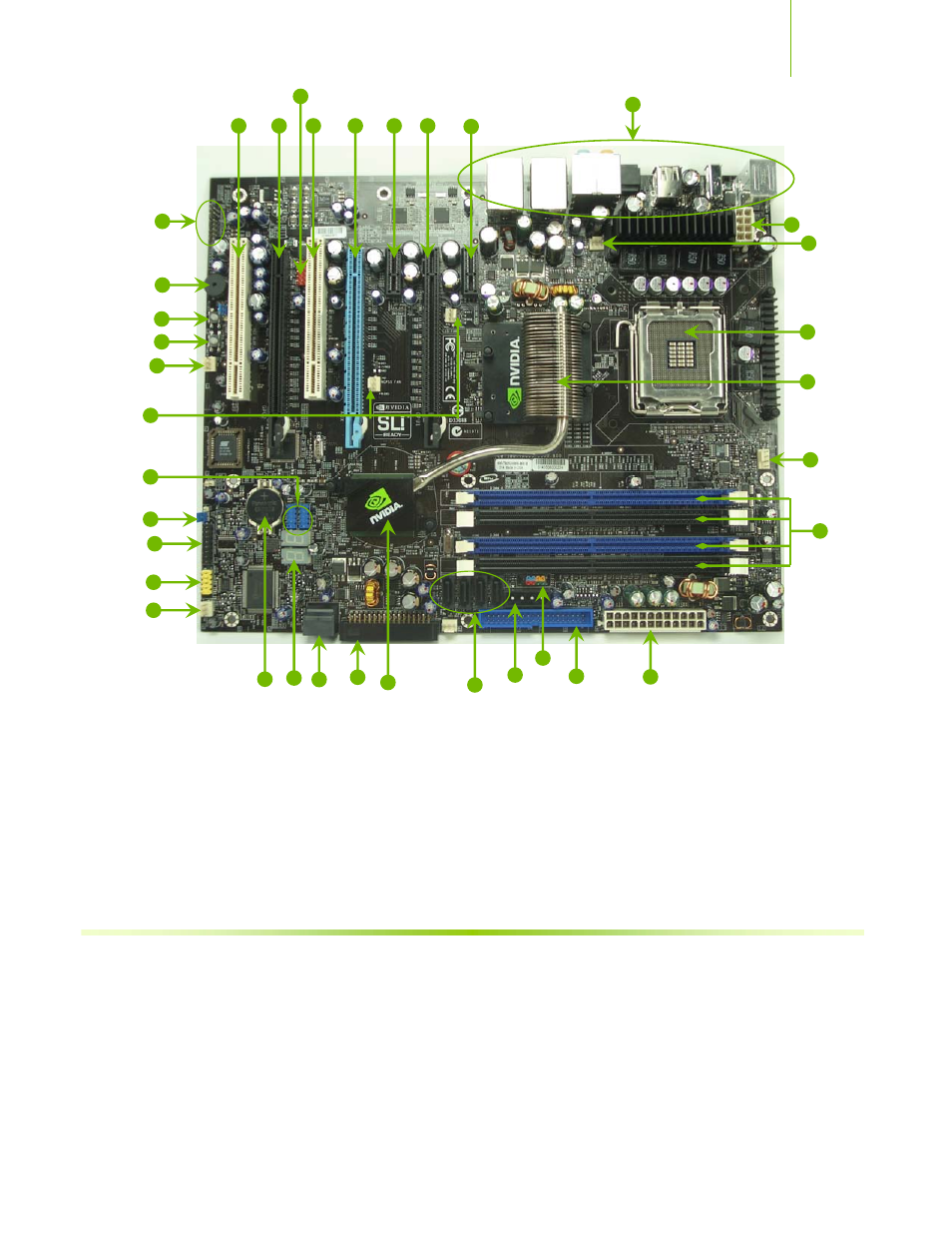

Unpacking and Parts Description
11
1. CPU Socket 12. Two Serial-ATA connectors 23. PCI Express x16 slots (SLI)
2. NVIDIA SPP with passive heat sink 13. LED POST codes 24. PCI Express Graphics Expansion
3. CPU fan connector 14. Motherboard battery 25. PCI Express x1 slots
4. DDR DIMM Slots 0 - 3 15. Serial connector 26. Back panel connectors (Figure 2)
5. 24-pin ATX Power Connector 16. LPC connector (debug) 27. 8-pin ATX_12V power connector
6. FDD Connector 17. Clear CMOS 28. Front panel audio connections
7. Front panel connector 18. Fan Header 29. USB Header1 & 2
8. AUX PEX Power connector 19. Power on/off switch 30. Firewire Header
9. Serial-ATA connectors 20. Reset switch 31. V-Reg fan header
10. NVIDIA MCP 21. On-board speaker
11. Floppy drive connector 22. PCI slots
