4.6 ONU Data Path Configuration
The GUI may be used to configure various aspects of the ONU data path. Such as the ONU
queue configuration, classification of user data traffic and filtering of user data traffic.
Because these operations are very complex the user interface is divided between several
panels.
4.6.1 Queue Configuration

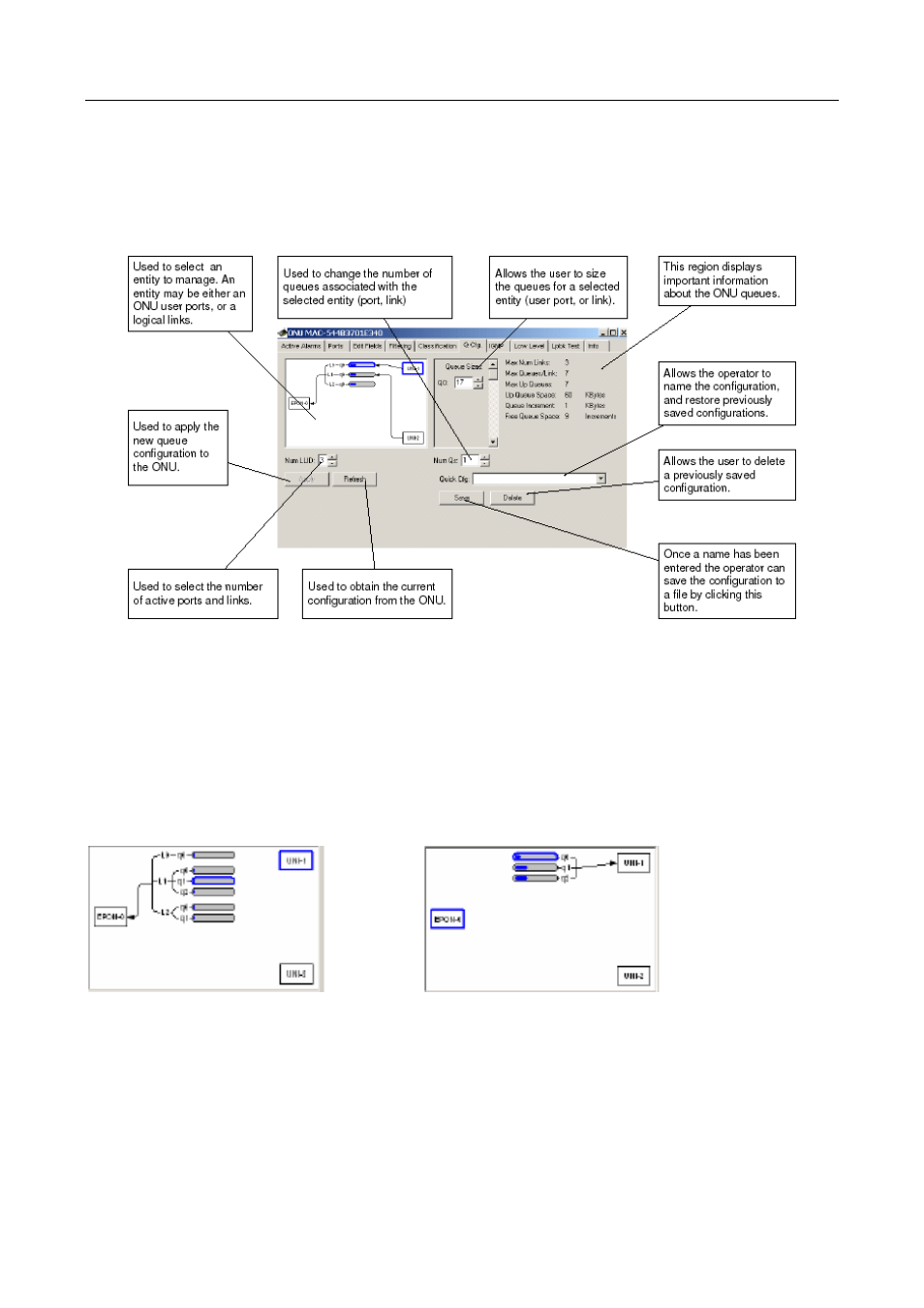

The ONU Queue configuration panel allows the operator to change queue sizes and save
configurations.
„ Entity Selection Control
Upstream Configuration Downstream Configuration
The Entity Selection Control is a graphic representation of the ONU data path. This control
allows the operator to select an entity to manage by clicking on a graphical representation.
An entity many be either an ONU User Port ONU Logical Link, or ONU FIFO. The EPON
port is depicted as a box labeled EPON. The two User Ports are represented by boxes
labeled UNI-1 and UNI-2 respectively. Depending on whether the EPON Port or a User Port
is currently selected the FIFOs shown will correspond to either the upstream or
