Placement of the glowing embers (rockwool) is very individual and
light coverage of the areas indicated will provide your best effects.
We recommend separation of the rockwool by hand and to make
your coverage as light and fluffy as possible.
Place just enough embers on the burner to obtain the glow and a
gold yellow flame.
Do not place rockwool over large port areas.
Rockwool should not be placed in the area of the pilot assembly.
Over time, the rockwool will break down and new rockwool will
need to be placed to recreate the original glowing embers effect.
Remove all old rockwool from the appliance and apply new
rockwool as shown in Figure 15.
Note: Only the rockwool supplied with this unit or ordered in
accordance with the Parts List on pages 30 and 31 should be used
on this burner. See the Parts List on pages 30 and 31 to order
replacement rockwool.
placing Lava Rock in front of Burner on fireplace floor
Spread lava rocks on fireplace floor in front of the burner pan.
The lava rocks are for decorative effect and are not required for
fireplace operation.
ATTENTION: DO NOT PLACE LAVA ROCKS ON BURNER,
LOGS OR ROCKWOOL. THE LAVA ROCKS SHOULD
ONLY BE PLACED ON THE FIREPLACE FLOOR.

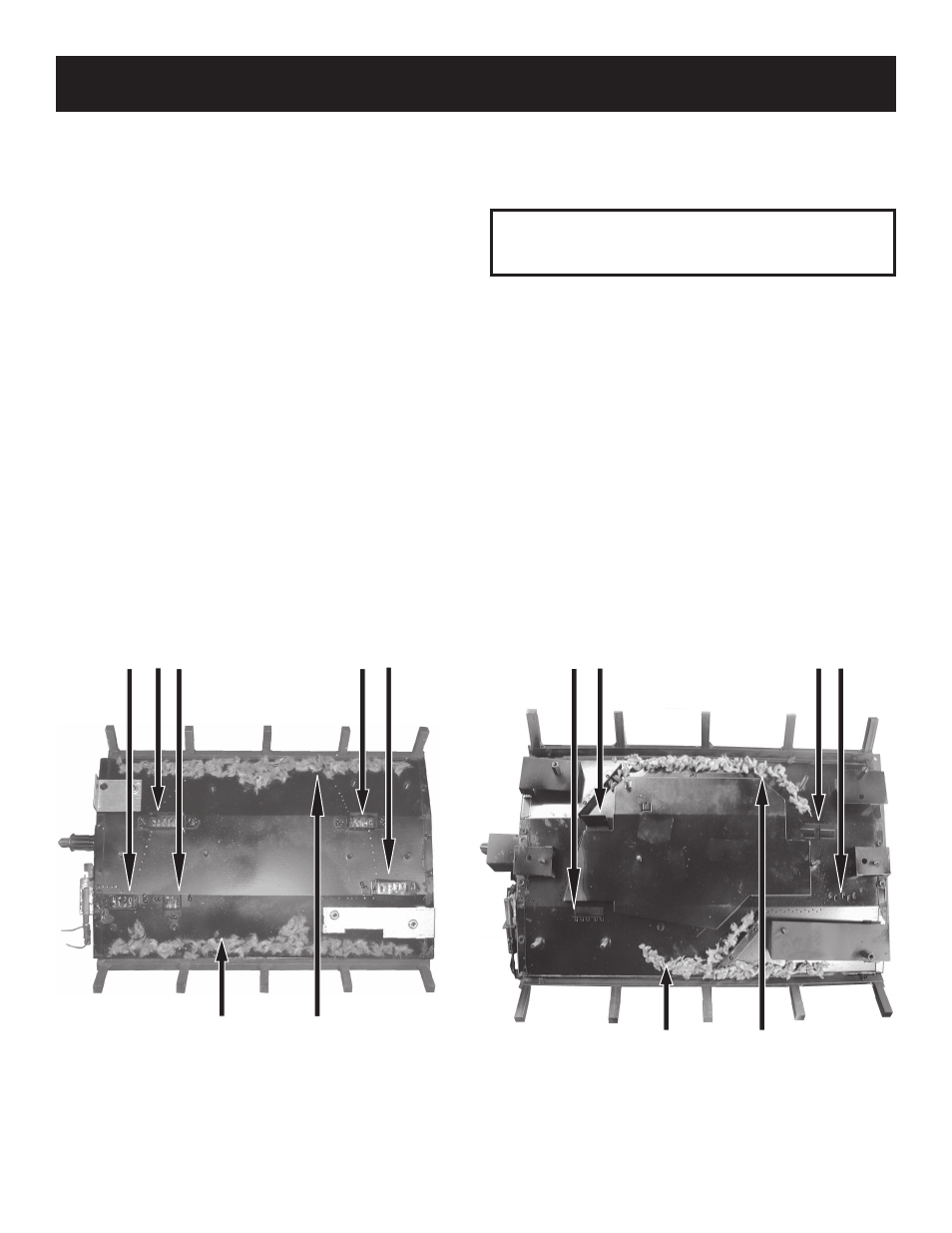

PLACEMENT oF GLoWING EMBERS AND LAVA RoCK
LP BURNER - TOP VIEW
Do not cover any large ports with
ember material (glowing embers)
Place ember material only
over port areas as shown
NAT BURNER - TOP VIEW
Do not cover any large ports with
ember material (glowing embers)
Place ember material only
over port areas as shown
Figure 15
