Fireplace installation instructions (continued) – Empire Comfort Systems VFP36SP32EN-2 User Manual
Page 14
26670-0-0110
Page 14

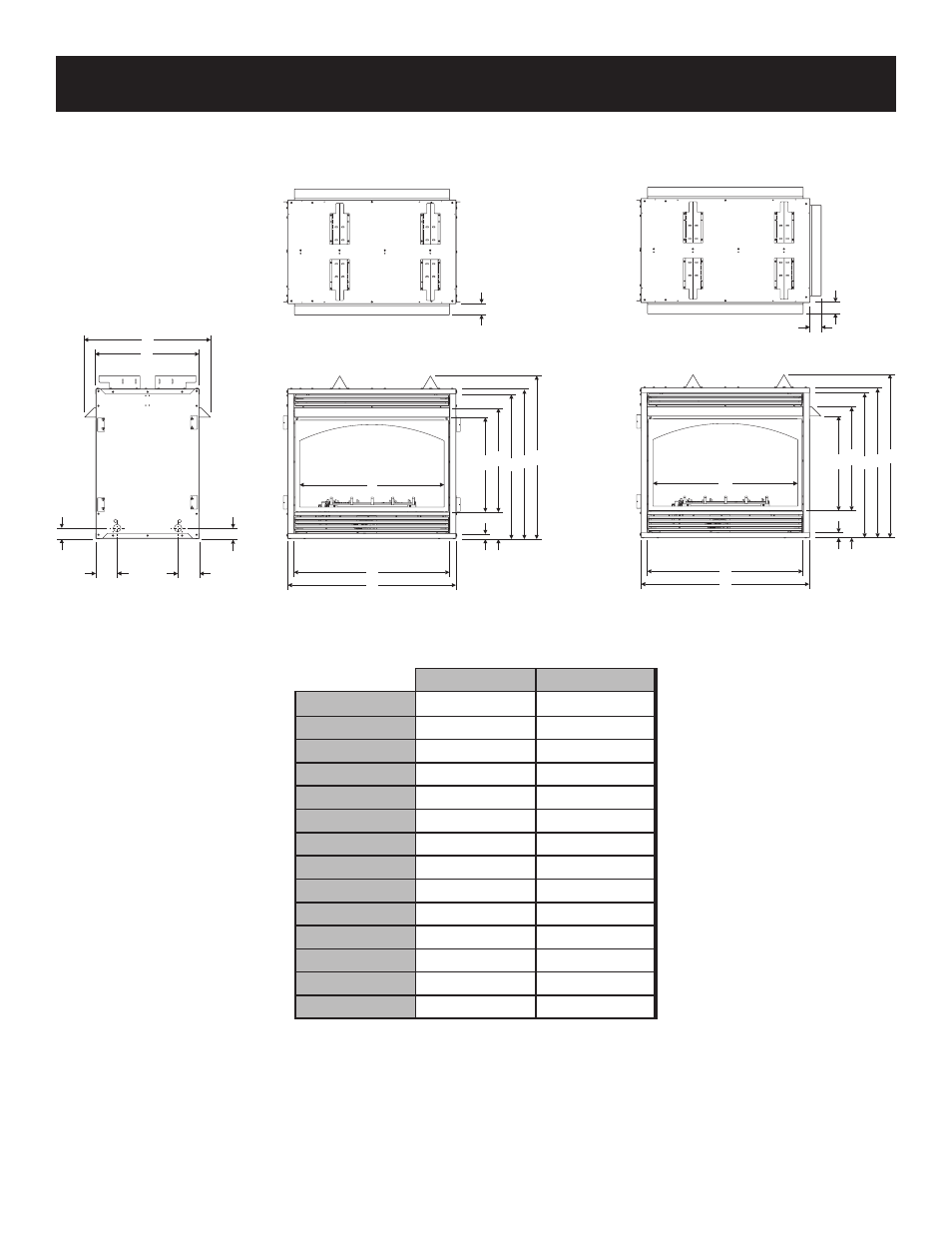

Figure 10
fireplace Dimensions
FIREPLACE INSTALLATIoN INSTRUCTIoNS (continued)
vfp36Sp
vfp36pp
A
34 3/4"
34 3/4"
B
39"
39"
C
24"
24"
D
22"
22"
E
36"
36"
f
34 1/4"
35 1/4"
g
29 1/8"
29 1/8"
h
37 3/4"
37 3/4"
I
1 1/4"
1 1/4"
J
6 1/8"
6 1/8"
K
2 1/2"
2 1/2"
L
5"
5"
M
24 1/8"
24 1/8"
N
33 1/2"
33 1/2"
SEE THRU
LOUVERED
PENINSULA
LOUVERED
F
F
2 9/16”
2 9/16”
2 9/16”
C
G
K
L
K
L
B
E
B
E
H
A
N
M
J
D
I
H
A
N
M
J
D
I
