fireplace framing
Framing can be built before or after the fireplace is set in place.
Framing should be constructed to accommodate wall covering
and fireplace facing material. The fireplace framing should be
constructed of 2 x 4 lumber or heavier. The framing headers may
rest on the top of the fireplace standoffs. Refer to Figures 5 and 9
for framing dimensions.
Note: On Peninsula models, a maximum weight of 250 lbs. is
recommended when construction materials are supported by the
top standoff spacers.
fIREpLACE INSTALLATION INSTRUCTIONS
Premium Vent-Free Fireplace Framing Dimensions (in
inches)
"A" "B" "C"*
Model Framing
Height
Framing
Width
Framing
Depth
VFP36SP 38" 40" 23"*
VFP36PP 38" 39"** 23"*
Attention: Add height of base to "A" Dimension when elevat-
ing fireplace if installing on an elevated base.
framing dimension A incudes a three inch clearance for
standoffs on top of fireplace.
*Dimension "C" assumes use of 1/2" wall board flush to both
front faces.
** Peninsula model framing width assumes use of 1/2" wall
board flush to the end face.
A
B
C
A
B
C

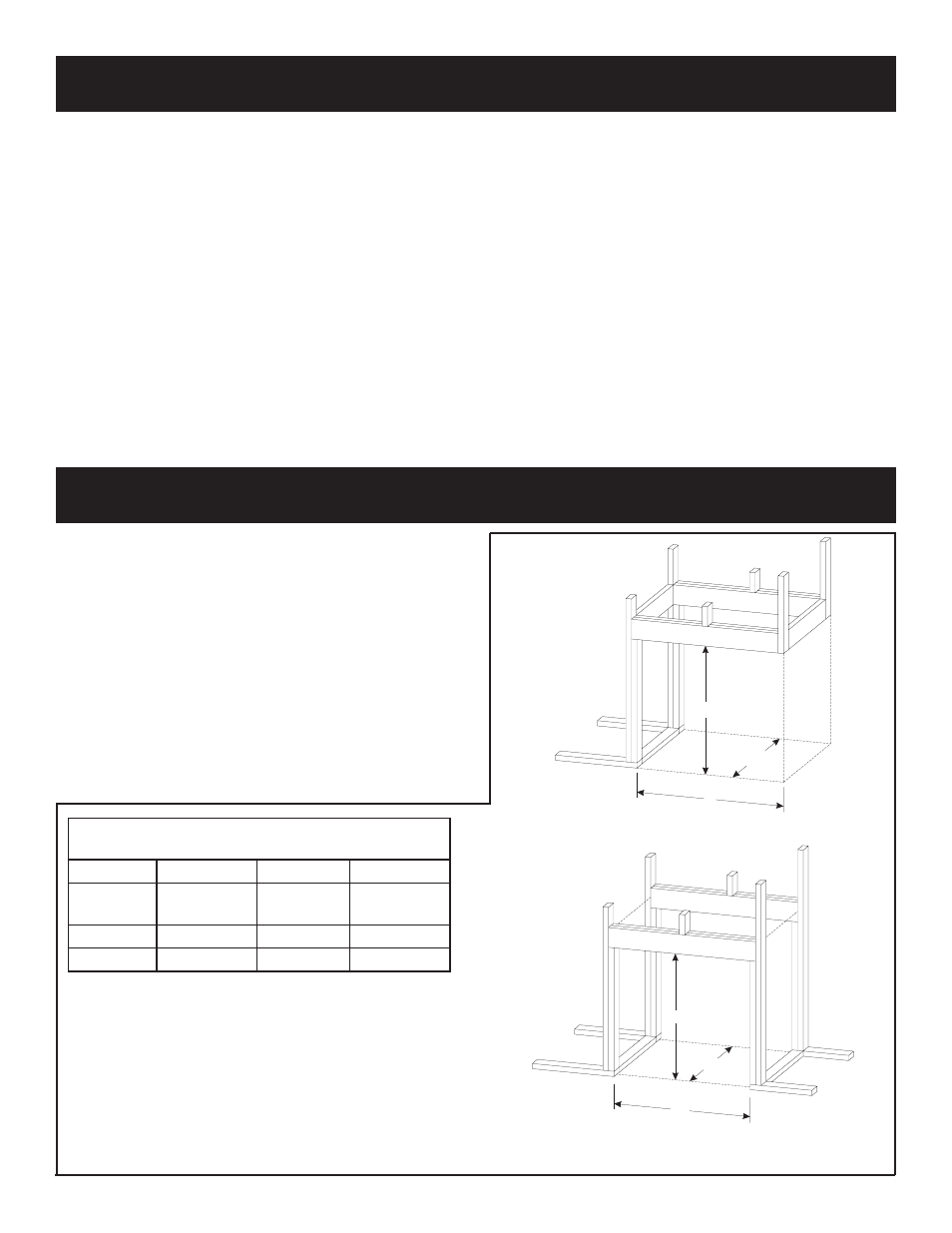

framing - peninsula
framing - See-Through
figure 9
In planning the installation for the fireplace, it is necessary to
determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned
at this time. A gas shutoff must be installed in this line.
The fireplace can be mounted on any of these surfaces:
1. A flat hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible
material.
3. Four (4) corners of the fireplace so contact is made on all four
perimeter edges on the bottom of the unit.
(Example: Four (4) concrete masonry blocks.)
If the fireplace is installed directly on carpeting, tile or other
combustible material other than wood flooring, it should be installed
on a metal or wood panel extending the full width and depth of
the unit.
At this point, you should have decided what components to include
in your installation, and where the fireplace is to be located. If this
has not been done, stop and consult your dealer for assistance with
this planning.
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,
plus other Decorative Frame, Hood, and Door accessory kits may
be installed after the fireplace is secured to the framing.
Refer to the instructions provided with each of the optional
accessory kits for proper installation and operation.
